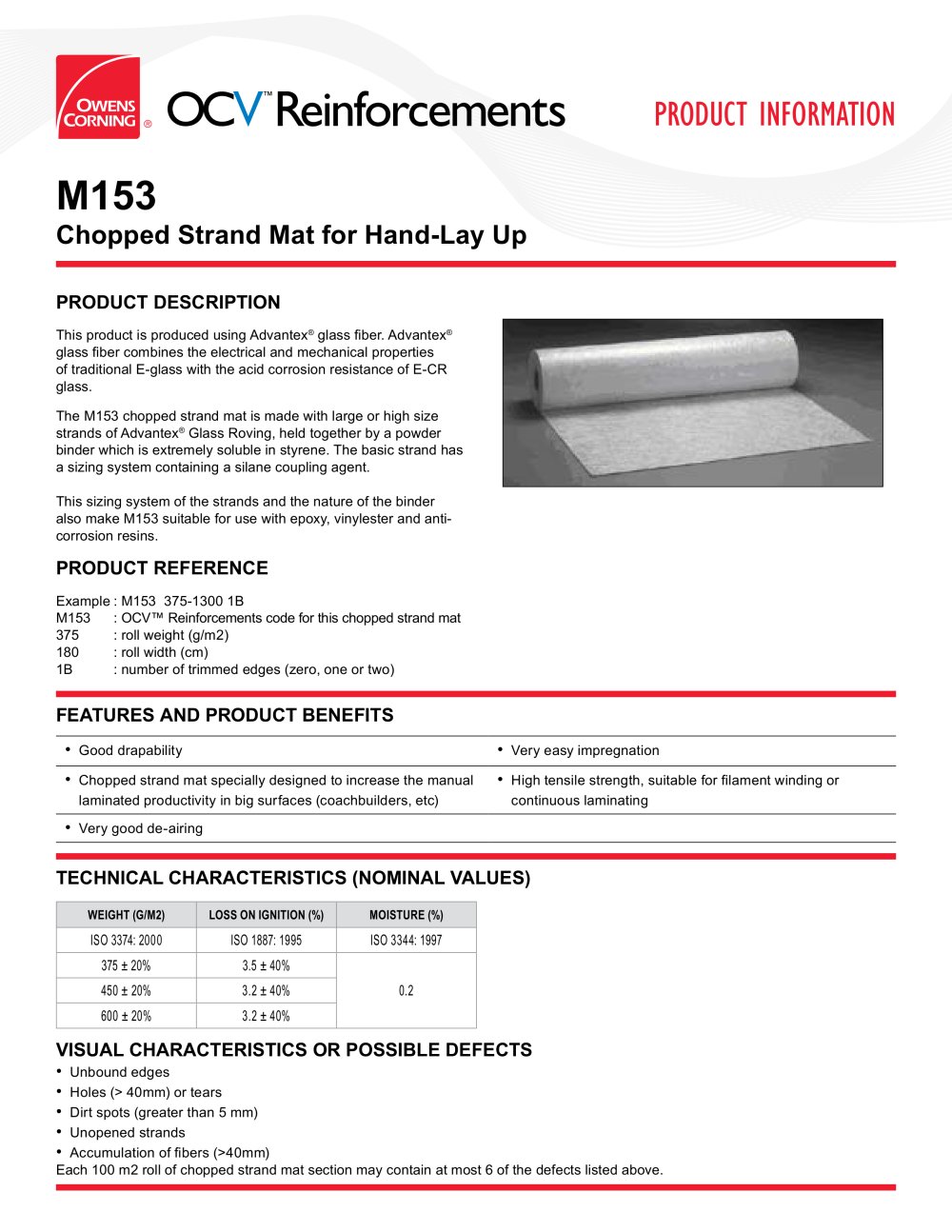

OCV™ Reinforcements

PRODUCT INFORMATION

M153

Chopped Strand Mat for Hand-Lay Up

PRODUCT DESCRIPTION

This product is produced using Advantex® glass fiber. Advantex® glass fiber combines the electrical and mechanical properties of traditional E-glass with the acid corrosion resistance of E-CR glass.

The M153 chopped strand mat is made with large or high size strands of Advantex® Glass Roving for boats, held together by a powder binder which is extremely soluble in styrene. The basic strand has a sizing system containing a silane coupling agent.

This sizing system of the strands and the nature of the binder also make M153 suitable for use with epoxy, vinylester and anticorrosion resins for boats.

PRODUCT REFERENCE

Example : M153 375-1300 1B

M153 : OCV™ Reinforcements code for this chopped strand mat 375 : roll weight (g/m2) 180 : roll width (cm)

1B : number of trimmed edges (zero, one or two)


	FEATURES AND PRODUCT BENEFITS
	• Good drapability	• Very easy impregnation
	• Chopped strand mat specially designed to increase the manual	• High tensile strength, suitable for filament winding or
	laminated productivity in big surfaces (coachbuilders, etc)	continuous laminating

Very good de-airing

TECHNICAL CHARACTERISTICS (NOMINAL VALUES)


WEIGHT (G/M2)	LOSS ON IGNITION (%)	MOISTURE (%)
ISO 3374: 2000	ISO 1887: 1995	ISO 3344: 1997
375 ± 20%	3.5 ± 40%	0.2
450 ± 20%	3.2 ± 40%
600 ± 20%	3.2 ± 40%

VISUAL CHARACTERISTICS OR POSSIBLE DEFECTS

• Unbound edges

• Holes (> 40mm) or tears

• Dirt spots (greater than 5 mm)

• Unopened strands

• Accumulation of fibers (>40mm)

Each 100 m2 roll of chopped strand mat section may contain at most 6 of the defects listed above.
