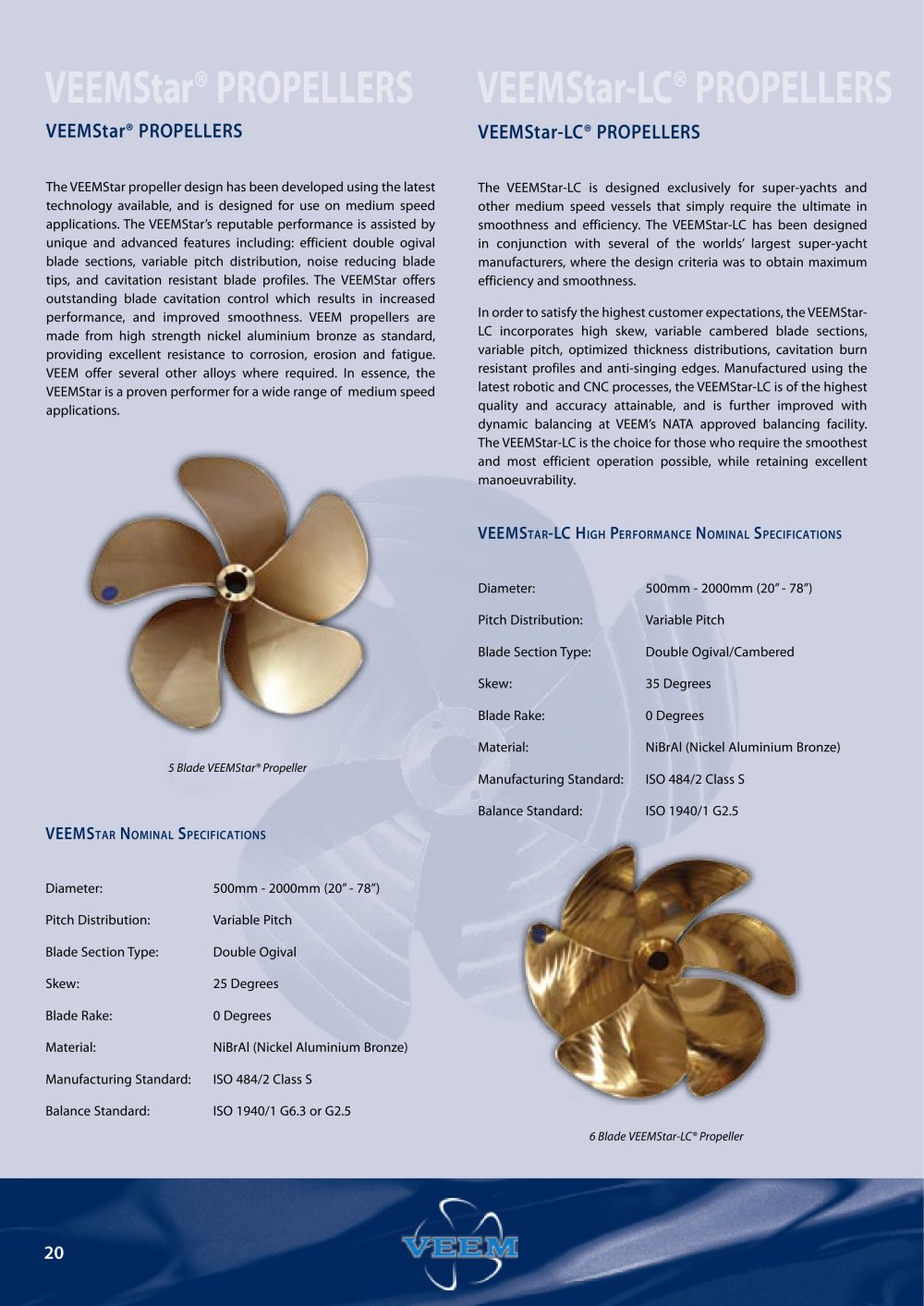

| | The VEEMStar propeller design has been developed using the latest technology available, and is designed for use on medium speed applications. The VEEMStar's reputable performance is assisted by unique and advanced features including: efficient double ogival blade for boat sections, variable pitch distribution, noise reducing blade tips, and cavitation resistant blade profiles. The VEEMStar offers outstanding blade cavitation control which results in increased performance, and improved smoothness. VEEM propellers are made from high strength nickel aluminium bronze as standard, providing excellent resistance to corrosion, erosion and fatigue. VEEM offer several other alloys where required. In essence, the VEEMStar is a proven performer for a wide range of medium speed applications. | The VEEMStar-LC is designed exclusively for super-yachts and other medium speed vessels that simply require the ultimate in smoothness and efficiency. The VEEMStar-LC has been designed in conjunction with several of the worlds' largest super-yacht manufacturers, where the design criteria was to obtain maximum efficiency and smoothness. In order to satisfy the highest customer expectations, the VEEMStar-LC incorporates high skew, variable cambered blade sections, variable pitch, optimized thickness distributions, cavitation burn resistant profiles and anti-singing edges. Manufactured using the latest robotic and CNC processes, the VEEMStar-LC is of the highest quality and accuracy attainable, and is further improved with dynamic balancing at VEEM's NATA approved balancing facility. The VEEMStar-LC is the choice for those who require the smoothest and most efficient operation possible, while retaining excellent manoeuvrability. | |
| | | |
| | VEEMStar-LC High Performance Nominal Specifications | |
| | | |
| | Diameter: Pitch Distribution: Blade Section Type: Skew: Blade Rake: Material: | 500mm - 2000mm (20" - 78") Variable Pitch Double Ogival/Cambered 35 Degrees 0 Degrees NiBrAl (Nickel Aluminium Bronze) | |
| | | |
| | 5 Blade VEEMStar® Propeller | Manufacturing Standard: ISO 484/2 Class S Balance Standard: ISO 1940/1 G2.5 | |
| | | |
| | VEEMStar Nominal Specifications | |
| | | |
| | Diameter: Pitch Distribution: Blade Section Type: Skew: Blade Rake: Material: | 500mm - 2000mm (20" - 78") Variable Pitch Double Ogival 25 Degrees 0 Degrees NiBrAl (Nickel Aluminium Bronze) | |
| | | |
| | Manufacturing Standard: ISO 484/2 Class S Balance Standard: ISO 1940/1 G6.3 or G2.5 | |
| | | |
| | 6 Blade VEEMStar-LC® Propeller | |
| | | |
| | | | | | |
