| | | Ancillary products for composites professionals | | |
| | | |

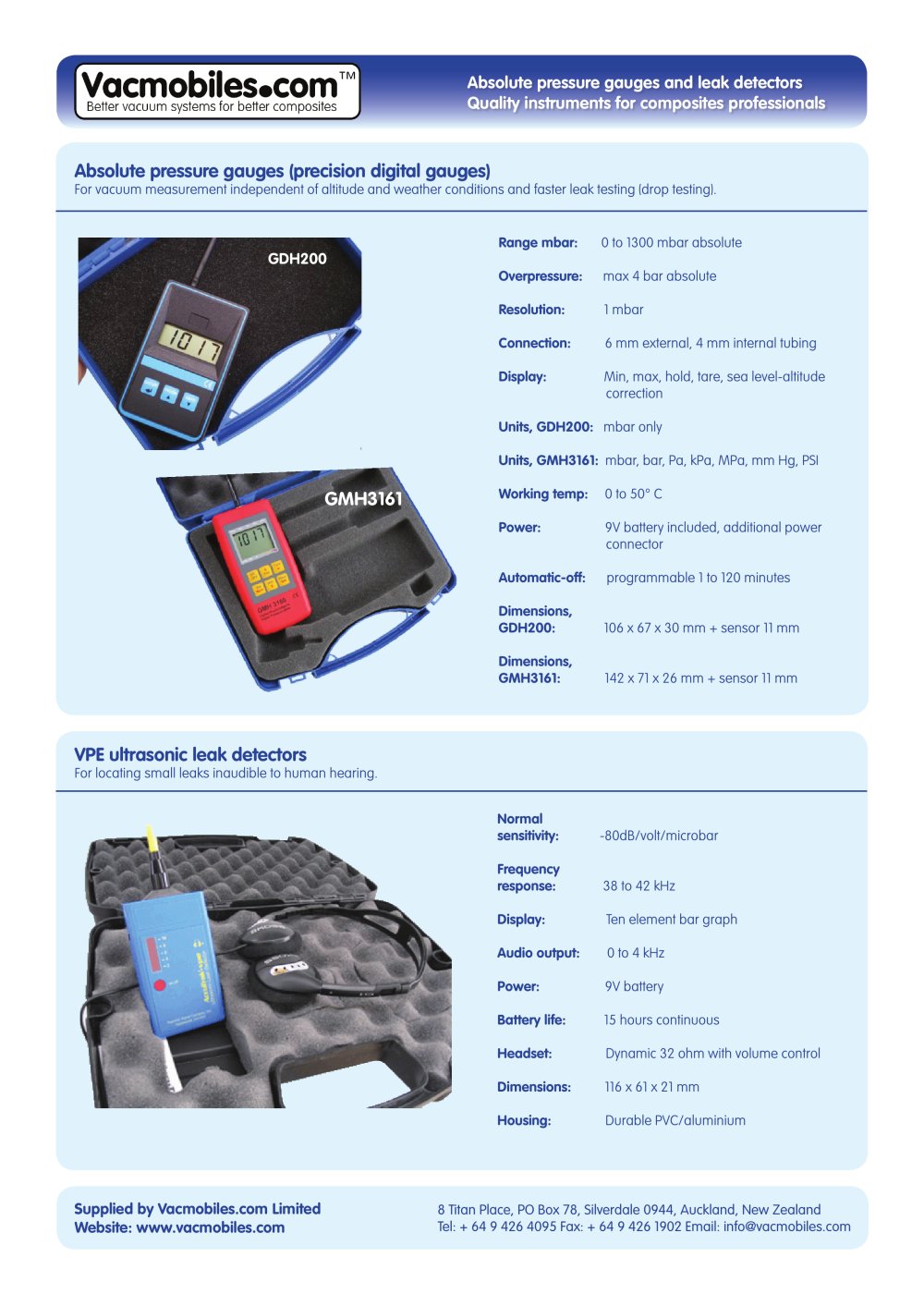

| | | Absolute pressure gauges (precision digital gauges) For vacuum measurement independent of altitude and weather conditions and faster leak testing (drop testing). | | |
| | | |
| | | | | | | | | | Range mbar: | 0 to 1300 mbar absolute | | | | Overpressure: | max 4 bar absolute | | | | Resolution: | 1 mbar | | | | Connection: | 6 mm external, 4 mm internal tubing | | | | Display: | Min, max, hold, tare, sea level-altitude correction | | | | Units, GDH200: | mbar only | | | | Units, GMH3160 | mbar, bar, Pa, kPa, MPa, mm Hg, PSI | | | | Working temp: | 0 to 50° C | | | | Power: | 9V battery included, additional power connector | | | | Automatic-off: | programmable 1 to 120 minutes | | | | Dimensions, GDH200:_ | 106 x 67 x 30 mm + sensor 11 mm | | | | Dimensions, GMH3160; | 142 x 71 x 26 mm + sensor 11 mm | | | | | | | | | |
| | | VPE ultrasonic leak detectors For locating small/invisible leaks. | | |
| | | |
| | | |
| | | | | | | | | | Normal sensitivity: | -80dB/volt/microbar | | | | Frequency response: | 38 to 42 kHz | | | | Display: | Ten element bar graph | | | | Audio output: | 0 to 4 kHz | | | | Power: | 9V battery_ | | | | Battery life: | 15 hours continuous | | | | Headset: | Dynamic 32 ohm with volume control | | | | Dimensions: | 116 x61 x 21 mm | | | | Housing: | Durable PVC/aluminium | | | | | | | | | |
| | | |
| | | Polyethylene vacuum tubing & spiral wrap ^ Tubing 13 (1/2"), 16 (5/8") & 23mm outside diameter.
| | |
| | | |
| | | ( | | Ideal for vacuum and boat resin supply lines. Translucent and easy to clamp off. | | |
| | | |
| | | |
| | | Spiral wrap 10 (3/8"), 12 (1/2") & 19mm (3/4") nominal outside diameter. For vacuum and resin distribution inside the bag. Thick wall - won't flatten under vacuum. | | |
| | | |
| | | Tube cutter, resin/vacuum valves & plastic fittings | | |
| | | |
| | | | | | | | | | | | | | | | | | |
