Tube end Tube end Tube end Tube end cut squarecut squarecut squarecut square Insert tube Insert tube Insert tube Insert tube with gland with gland with gland with gland nut loosenut loosenut loosenut loose Push tube down Push tube down Push tube down Push tube down to stop. Tighten to stop. Tighten to stop. Tighten to stop. Tighten nnnnutututut

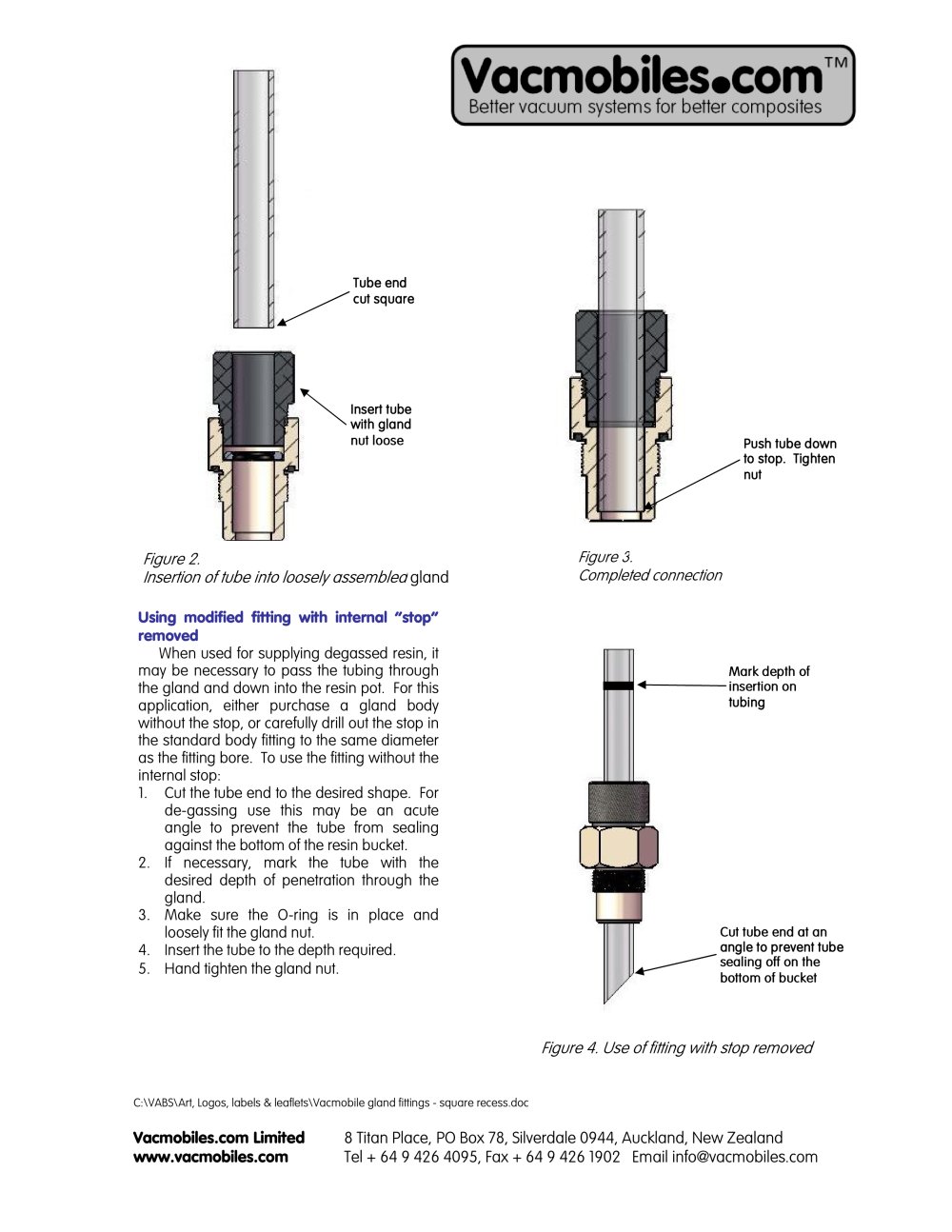

Figure 2. Insertion of tube into loosel

Figure 3 . Completed connection

y assemble d g land

Usin g modified fittin g with internal “sto p ” removed When used for supplying degassed boat resin, it may be necessary to pass the tubing through the gland and down into the resin pot. For this application, either purchase a gland body without the stop, or carefully drill out the stop in the standard body fitting to the same diameter as the fitting bore. To use the fitting without the internal stop: 1. Cut the tube end to the desired shape. For de-gassing use this may be an acute angle to prevent the tube from sealing against the bottom of the resin bucket. 2. If necessary, mark the tube with the desired depth of penetration through the gland. 3. Make sure the O-ring is in place and loosely fit the gland nut. 4. Insert the tube to the depth required. 5. Hand tighten the gland nut.
Cut tube end at an Cut tube end at an Cut tube end at an Cut tube end at an angle to prevent tube angle to prevent tube angle to prevent tube angle to prevent tube sealing off on the sealing off on the sealing off on the sealing off on the bottom of bucketbottom of bucketbottom of bucketbottom of bucket Mark depth of Mark depth of Mark depth of Mark depth of iiiinsertion on nsertion on nsertion on nsertion on tubingtubingtubingtubing

Figure 4. Use of fitting with stop removed
