SV 44

Catalog excerpts

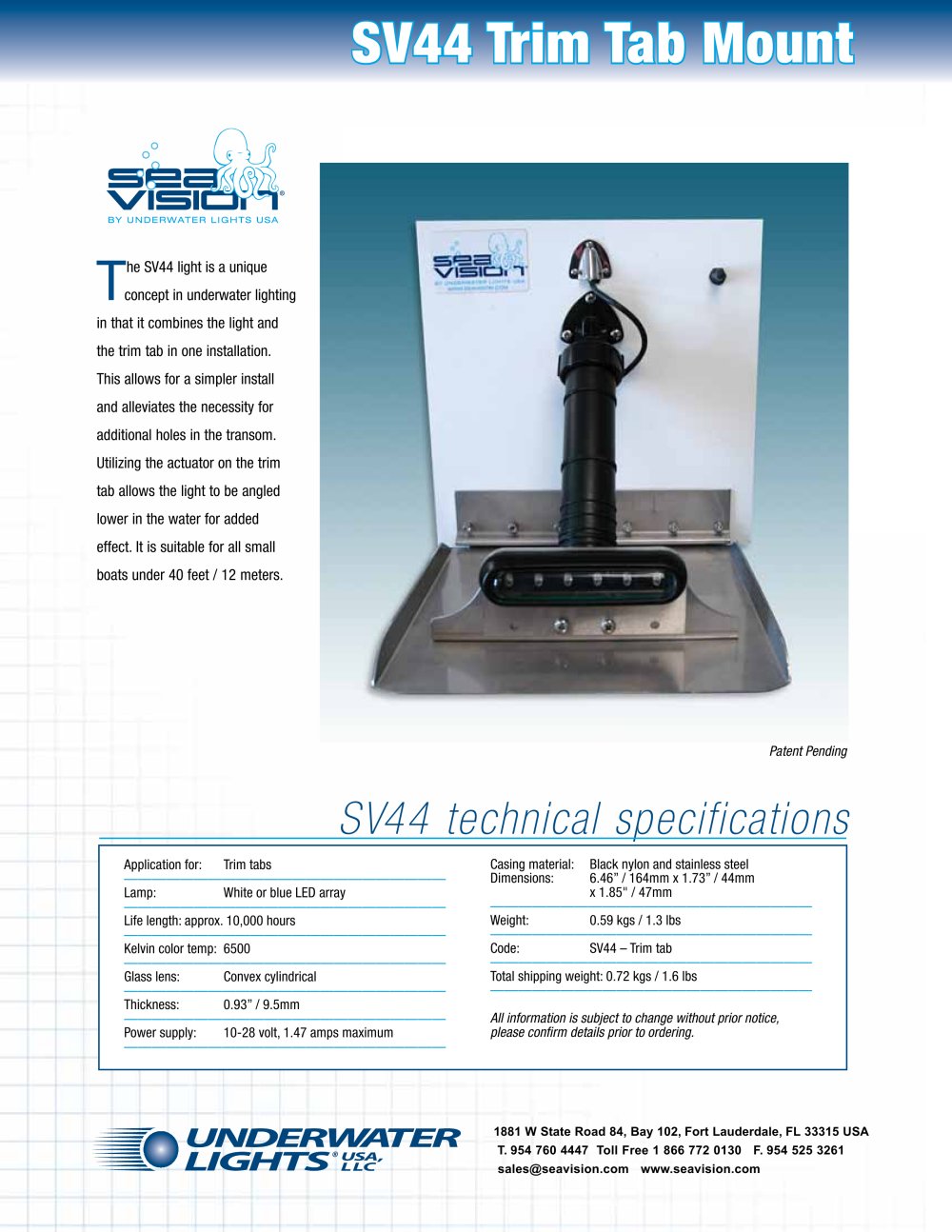

 he SV44 light is a unique concept in underwater lighting in that it combines the light and the trim tab in one installation. This allows for a simpler install and alleviates the necessity for additional holes in the transom. Utilizing the actuator on the trim tab allows the light to be angled lower in the water for added effect. It is suitable for all small boats under 40 feet / 12 meters. Patent Pending SV44 technical specifications Application for: Trim tabs ——————————————————————— Lamp: White or blue LED array ——————————————————————— Life length: approx. 10,000 hours ——————————————————————— Kelvin color temp: 6500 ——————————————————————— Glass lens: Convex cylindrical ——————————————————————— Thickness: 0.93” / 9.5mm ——————————————————————— Power supply: 10-28 volt, 1.47 amps maximum ——————————————————————— Casing material: Dimensions: Black nylon and stainless steel 6.46” / 164mm x 1.73” / 44mm x 1.85" / 47mm ——————————————————————— Weight: 0.59 kgs / 1.3 lbs ——————————————————————— Code: SV44 – Trim tab ——————————————————————— Total shipping weight: 0.72 kgs / 1.6 lbs ——————————————————————— All information is subject to change without prior notice, please confirm details prior to ordering. 1881 W State Road 84, Bay 102, Fort Lauderdale, FL 33315 USA T. 954 760 4447 Toll Free 1 866 772 0130 F. 954 525 3261 sales@seavision.com www.seavision.com

 Open the catalog to page 1

TRIM TAB MOUNTED, LED ARRAY, Congratulations on the purchase of your new trim tab mounted LED light (Patent Pending). Underwater Lights® USA, LLC takes pride in providing well designed, high quality and thoroughly tested lights that allow you to "enhance your boating experience". These lights can be installed in your vessel for aesthetics, to attract fish, for security and safety. General Operating Information: The commercial grade Light Emitting Diode (LED) technology used in this light will provide robust and reliable operation under normal operating conditions. The light can be operated...

 Open the catalog to page 2

TRIM TAB MOUNTED, LED ARRAY, 12VDC or 24VDC Underwater Lights® USA, LLC warrants this light to be free from defects in workmanship and materials for a period of two years from the date of original purchase. Further, misuse, abuse, improper installation, neglect, improper shipping, damage caused by disasters such as fire, flood and lightning, unauthorized repair or modifications will void said warranty. Should your light prove defective during the warranty period, promptly contact Underwater Lights® USA, LLC for an RMA number and then return the light freight prepaid with the RMA number...

 Open the catalog to page 3
