SV 43

Catalog excerpts

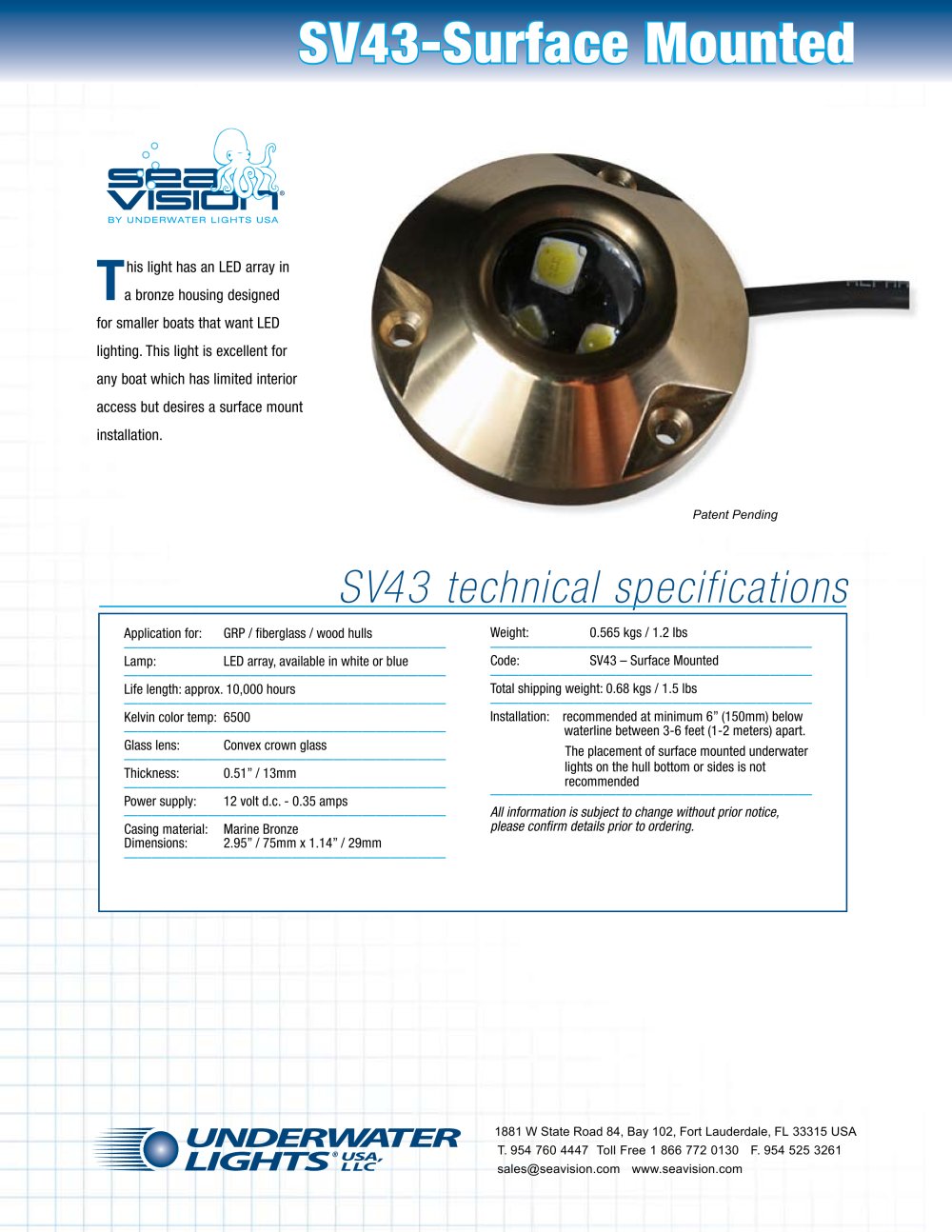

 his light has an LED array in a bronze housing designed for smaller boats that want LED lighting. This light is excellent for any boat which has limited interior access but desires a surface mount installation. Patent Pending SV43 technical specifications Application for: GRP / fiberglass / wood hulls ——————————————————————— Lamp: LED array, available in white or blue ——————————————————————— Life length: approx. 10,000 hours ——————————————————————— Kelvin color temp: 6500 ——————————————————————— Glass lens: Convex crown glass ——————————————————————— Thickness: 0.51” / 13mm ——————————————————————— Power supply: 12 volt d.c. - 0.35 amps ——————————————————————— Casing material: Marine Bronze Dimensions: 2.95” / 75mm x 1.14” / 29mm ——————————————————————— Weight: 0.565 kgs / 1.2 lbs ——————————————————————— Code: SV43 – Surface Mounted ——————————————————————— Total shipping weight: 0.68 kgs / 1.5 lbs ——————————————————————— Installation: recommended at minimum 6” (150mm) below waterline between 3-6 feet (1-2 meters) apart. The placement of surface mounted underwater lights on the hull bottom or sides is not recommended ——————————————————————— All information is subject to change without prior notice, please confirm details prior to ordering. 1881 W State Road 84, Bay 102, Fort Lauderdale, FL 33315 USA T. 954 760 4447 Toll Free 1 866 772 0130 F. 954 525 3261 sales@seavision.com www.seavision.com

 Open the catalog to page 1

SURFACE MOUNTED, LED ARRAY, 12VDC Important Information, Please Save Congratulations on the purchase of your new surface mounted LED light (Patent Pending). Underwater Lights® USA, LLC takes pride in providing well designed, high quality and thoroughly tested lights that allow you to “enhance your boating experience”. These lights can be installed in your vessel for aesthetics, to attract fish, for security and safety. General Operating Information: The commercial grade Light Emitting Diode (LED) technology used in this light will provide robust and reliable operation under normal operating...

 Open the catalog to page 2

SURFACE MOUNTED, LED ARRAY, 12VDC Installation: This light should be installed at least 125-150mm (5-6”) below the water line by qualified/approved personnel using proper tools and materials. The placement of surface mounted underwater lights on the hull bottom or sides is not recommended. Select a flat surface at the desired location on the vessel hull then orient and attach the light using three Phillips Flat Head Screws (9) and 3M 5200 Marine Adhesive or equivalent . Note: Depending upon installation surface material, three small pilot holes may be required. Caution! Check that no...

 Open the catalog to page 3
