Sea VIsion SV 27 Underwater Camera

Catalog excerpts

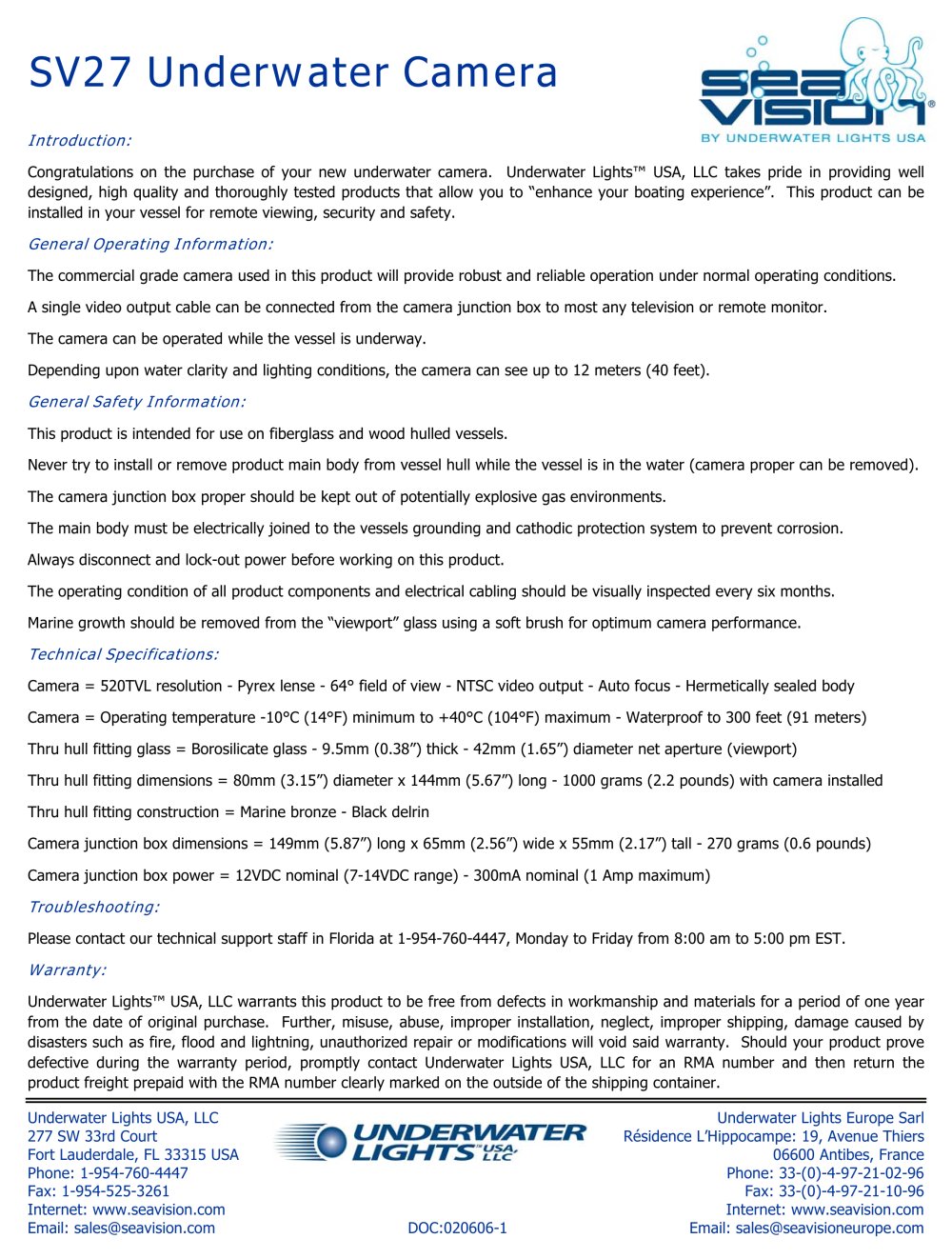

SV27 Underwater Camera Introduction: Congratulations on the purchase of your new underwater camera. Underwater Lights™ USA, LLC takes pride in providing well designed, high quality and thoroughly tested products that allow you to “enhance your boating experience”. This product can be installed in your vessel for remote viewing, security and safety. General Operating Information: The commercial grade camera used in this product will provide robust and reliable operation under normal operating conditions. A single video output cable can be connected from the camera junction box to most any television or remote monitor. The camera can be operated while the vessel is underway. Depending upon water clarity and lighting conditions, the camera can see up to 12 meters (40 feet). General Safety Information: This product is intended for use on fiberglass and wood hulled vessels. Never try to install or remove product main body from vessel hull while the vessel is in the water (camera proper can be removed). The camera junction box proper should be kept out of potentially explosive gas environments. The main body must be electrically joined to the vessels grounding and cathodic protection system to prevent corrosion. Always disconnect and lock-out power before working on this product. The operating condition of all product components and electrical cabling should be visually inspected every six months. Marine growth should be removed from the “viewport” glass using a soft brush for optimum camera performance. Technical Specifications: Camera = 520TVL resolution - Pyrex lense - 64° field of view - NTSC video output - Auto focus - Hermetically sealed body Camera = Operating temperature -10°C (14°F) minimum to +40°C (104°F) maximum - Waterproof to 300 feet (91 meters) Thru hull fitting glass = Borosilicate glass - 9.5mm (0.38”) thick - 42mm (1.65”) diameter net aperture (viewport) Thru hull fitting dimensions = 80mm (3.15”) diameter x 144mm (5.67”) long - 1000 grams (2.2 pounds) with camera installed Thru hull fitting construction = Marine bronze - Black delrin Camera junction box dimensions = 149mm (5.87”) long x 65mm (2.56”) wide x 55mm (2.17”) tall - 270 grams (0.6 pounds) Camera junction box power = 12VDC nominal (7-14VDC range) - 300mA nominal (1 Amp maximum) Troubleshooting: Please contact our technical support staff in Florida at 1-954-760-4447, Monday to Friday from 8:00 am to 5:00 pm EST. Warranty: Underwater Lights™ USA, LLC warrants this product to be free from defects in workmanship and materials for a period of one year from the date of original purchase. Further, misuse, abuse, improper installation, neglect, improper shipping, damage caused by disasters such as fire, flood and lightning, unauthorized repair or modifications will void said warranty. Should your product prove defective during the warranty period, promptly contact Underwater Lights USA, LLC for an RMA number and then return the product freight prepaid with the RMA number clearly marked on the outside of the shipping container. Underwater Lights USA, LLC 277 SW 33rd Court Fort Lauderdale, FL 33315 USA Phone: 1-954-760-4447 Fax: 1-954-525-3261 Internet: www.seavision.com Email: sales@seavision.com DOC:020606-1 Underwater Lights Europe Sarl Résidence L’Hippocampe: 19, Avenue Thiers 06600 Antibes, France Phone: 33-(0)-4-97-21-02-96 Fax: 33-(0)-4-97-21-10-96 Internet: www.seavision.com Email: sales@seavisioneurope.com

 Open the catalog to page 1

SV27 Underwater Camera Installation: This product should be installed at least 152mm (6”) below the water line by qualified/approved personnel using proper tools and materials. The minimum hull thickness is 10mm (0.4”) and maximum is 70mm (2.75”) with an access area of at least 100mm (3.9”) left behind the product for camera access. After selecting a flat surface, cut a 60mm (2-3/8”) diameter hole through the vessel hull in the desired location. Caution! Check that no electrical wiring, fuel lines, oil lines, water lines etc., pass near or through the intended hole location. Loosen number...
