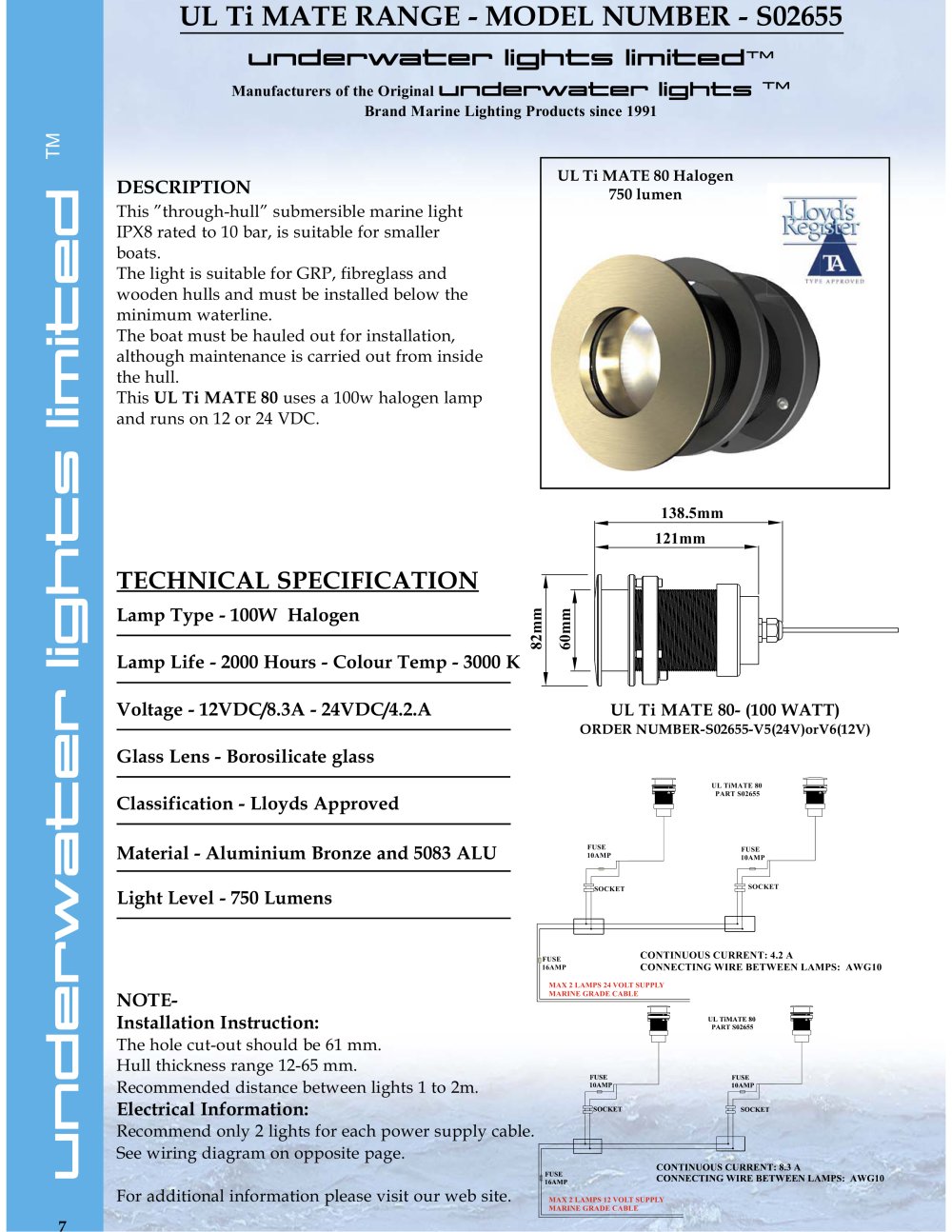

UL Ti MATE RANGE - MODEL NUMBER - S02655

underwc

¡r^ ligi—its limifct=cd

Manufacturers of the Original I_II n I'—" '\/vx=3H i—M » |jg| |fcí

Brand Marine Lighting Products since 1991

.J

DESCRIPTION

This "through-hull" submersible marine light

IPX8 rated to 10 bar, is suitable for smaller

boats.

The light is suitable for GRP, fibreglass and

wooden hulls and must be installed below the

minimum waterline.

The boat must be hauled out for installation,

although maintenance is carried out from inside

the hull.

This UL Ti MATE 80 uses a lOOw halogen lamp

and runs on 12 or 24 VDC.

UL Ti MATE 80 Halogen

750 lumen

138.5mm

TECHNICAL SPECIFICATION

Lamp Type - 100W Halogen

Lamp Life - 2000 Hours - Colour Temp - 3000 K

Voltage - 12VDC/8.3A - 24VDC/4.2.A

Glass Lens - Borosilicate glass

UL Ti MATE 80- (100 WATT)

ORDER NUMBER-S02655-V5(24V)orV6(12V)

Classification - Lloyds Approved

Material - Aluminium Bronze and 5083 ALU

FUSE

10 AMP

UL TÍMATE SO

PART S02655

FUSE

10AMPN

Light Level - 750 Lumens

NOTE-

Installation Instruction:

The hole cut-out should be 61 mm.

Hull thickness range 12-65 mm.

Recommended distance between lights 1 to 2m.

Electrical Information:

Recommend only 2 lights for each power supply cable.

See wiring diagram on opposite page.

For additional information please visit our web site.

FUSE

16AMP

CONTINUOUS CURRENT: 4.2 A

CONNECTING WIRE BETWEEN LAMPS: AWG10

MAX 2 LAMPS 24 VOLT SUPPLY

MARINE GRADE CABLE

lOAMPn-

ÍÍSOCKET

ULTIMATE 80

PART 802655

FUSE

lOAMPn

CONTINUOUS CURRENT: 83 A

CONNECTING WIRE BETWEEN LAMPS: AWG10

MAX 2 LAMPS 12 VOLT SUPPLY

MARINE GRADE CABLE
