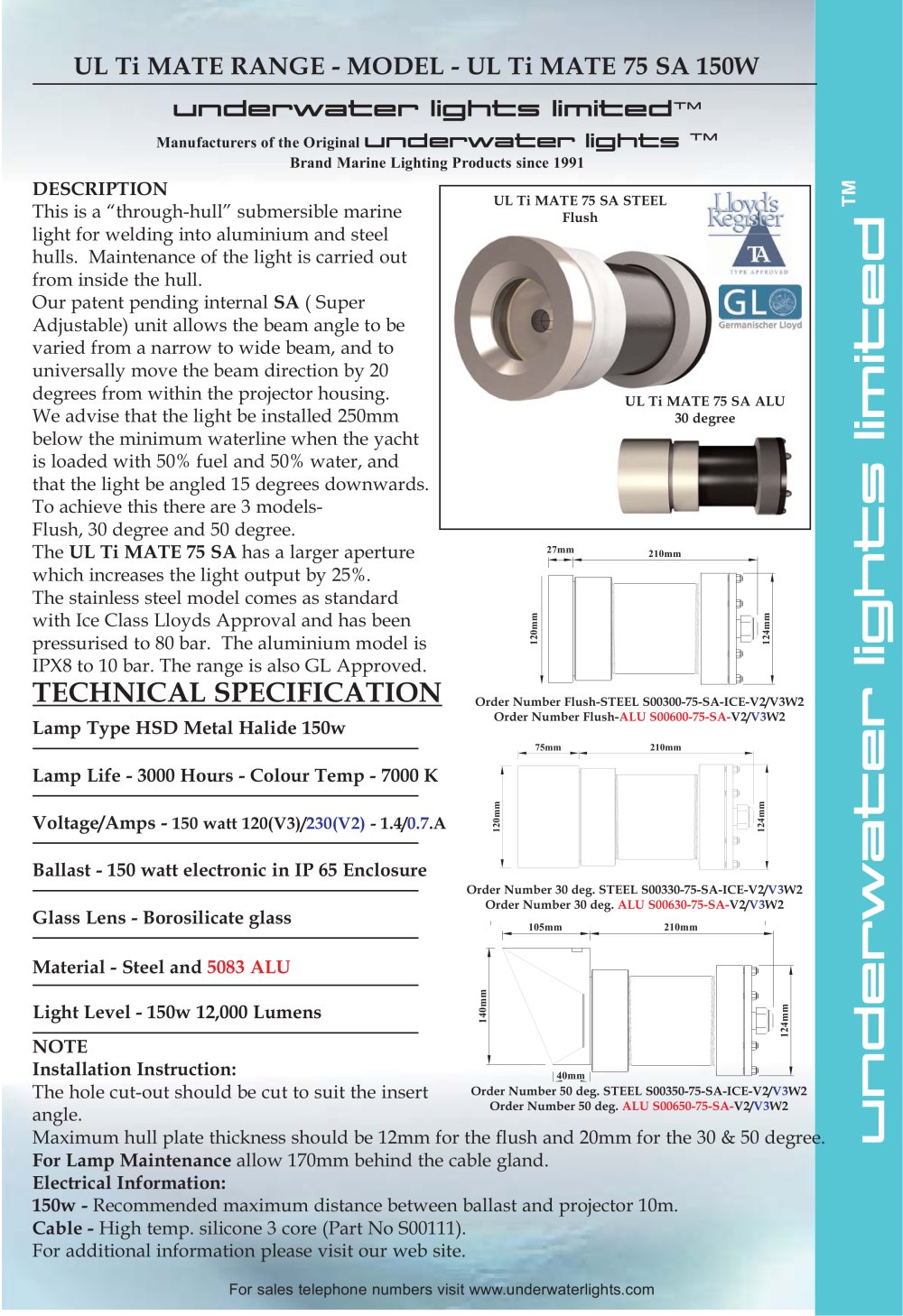

ULTi MATE 75 SA 316LSTAINLESS STEEL& 5083 ALUMINIUM ORDERING NUMBER FOR 30 DEG - 316 S.S, S00330-75 SA, 5083 ALU, S00630-75-SAORDERING NUMBER FOR 50 DEG -316 S.S. S00350-75 SA, 5083 ALU, S00650-75 SAWITH 120 (V3)OR 230 (V2) VOLTBALLASTAND 150W(W2) OR 250W(W1) WATTLAMP. OPERATIONALCONDITIONS AND CONSIDERATIONS The ULTi MATE 75 SAis serviced from inside the hull. Allow access for maintenance and space for ventilation.Do not use the ULTi MATE™ in dry-dock or out of waterAllow a minimum of 70mm behind the projector lid (item 1) for marine lamp replacements.ULTi MATE™ to be fitted 250mm below the yachts water line when loaded with 50% fuel and 50% freshwater onboard Do not attempt to remove the glass lens while afloat.The projector must be correctly assembled with lid secured to the ULTi MATE™ whilst afloat. ELECTRICALINFORMATION TM Cable specification from electronic ballast to projector (Pt.No. S00111)Shielded 3 core, Temperature -60C to +180C, Voltage 2000 volts. Maximum distance between ballast and projector with the shield earthed 10 meters.Ballast power 150 watt ballast 120/230 volt, running current 1.4/0.7.ABallast power 250 watt ballast 120/230 volt, running current 2.4/1.2.ABallast will not ignite a hot lamp. The ballast has a cycle of three atemptsto ignite the lamp then will wait for four minutes before repeating the cycle. ELECTRONIC BALLASTCOMPLETEWITH IP65 ENCLOSURE Part Description 75-SAPart No 1: Projector lid securing plate00283-A2: M6 Nut933813: 'O' Ring001084: Gasket NAF00285-A5: Connecting ring00274-C6: Lamp holder screw002907: Lamp holder (250W)911957: Lamp holder (150W)911918: Reflector collar bush 00288-A
9: M4 Lock nut 9338210: Lamp (250W - 75)9120710: Lamp (150W - 75)9120611: Reflector adjustment rod0028412: Reflector completeS9179113: Gasket NAF00285-A14: Connecting ring00303-75A
14: Connecting ring00603-75A15: Projector barrel00101-C16: Gasket NAF000C07-B30: Glass gaskets NAF00286-A31: Glass lens0028140: Body 50 deg (s.s.)00350-75A40: Body 50 deg (alu)00650-75A41: Body 30 deg (s.s.)00330-75A41: Body 30 deg (alu)00630-75A42: Glass retaining ring00304-75A42: Glass retaining ring00604-75A43: Cap head screws9333443: Cap head screws93460-SC Part Description 75-SAPart No 20: Ignitor (250W)S95325
21: Projector cover (250W)00102-G
22: Gland92010
23: Projector cover (150W)00102-E
24: Ballast 250 watt95323-A
24: Ballast 250 watt 95323-M
24: Ballast 150 watt 230v95322-V224: Ballast 150 watt 120v95322-V3 150 watt Recommended SparesPart No Lamp ( 250w = W1 )91207
Lamp ( 150w = W2 )91206Glass with gasketsS00281-ABallastIgnitor 250 wattS95325 250 watt LENS FITTINGINSTRUCTIONS Check the glass landing surface is clean and apply a suitable silicone grease to the gaskets. Fit the glass, gaskets and retaining ring as shown above. Hand tighten the screws with a 5mm “Allen key” making sure the glass retaining ring is square. Torque settings for all retaining screws - 10 Nm (7.5 ft/lbs). Torque the screws in the sequence shown. Check the ring again and re-torque the screws again to the same torque setting. PLEASE REGISTER YOUR PRODUCTWARRANTYDIRECTTO WWW ,REGISTER-UWL.COM FOR TECHNICALINFORMATION PLEASE EMAIL T@UNDER W A TERLIGHTS.COM SALES, PRODUCTINFORMATION AND NEWS GO TO WWW ,UNDER W A TERLIGHTS.COM ULTi MATE 75-SAS00X50-W2-26-01-06 S.S + ALU
|
