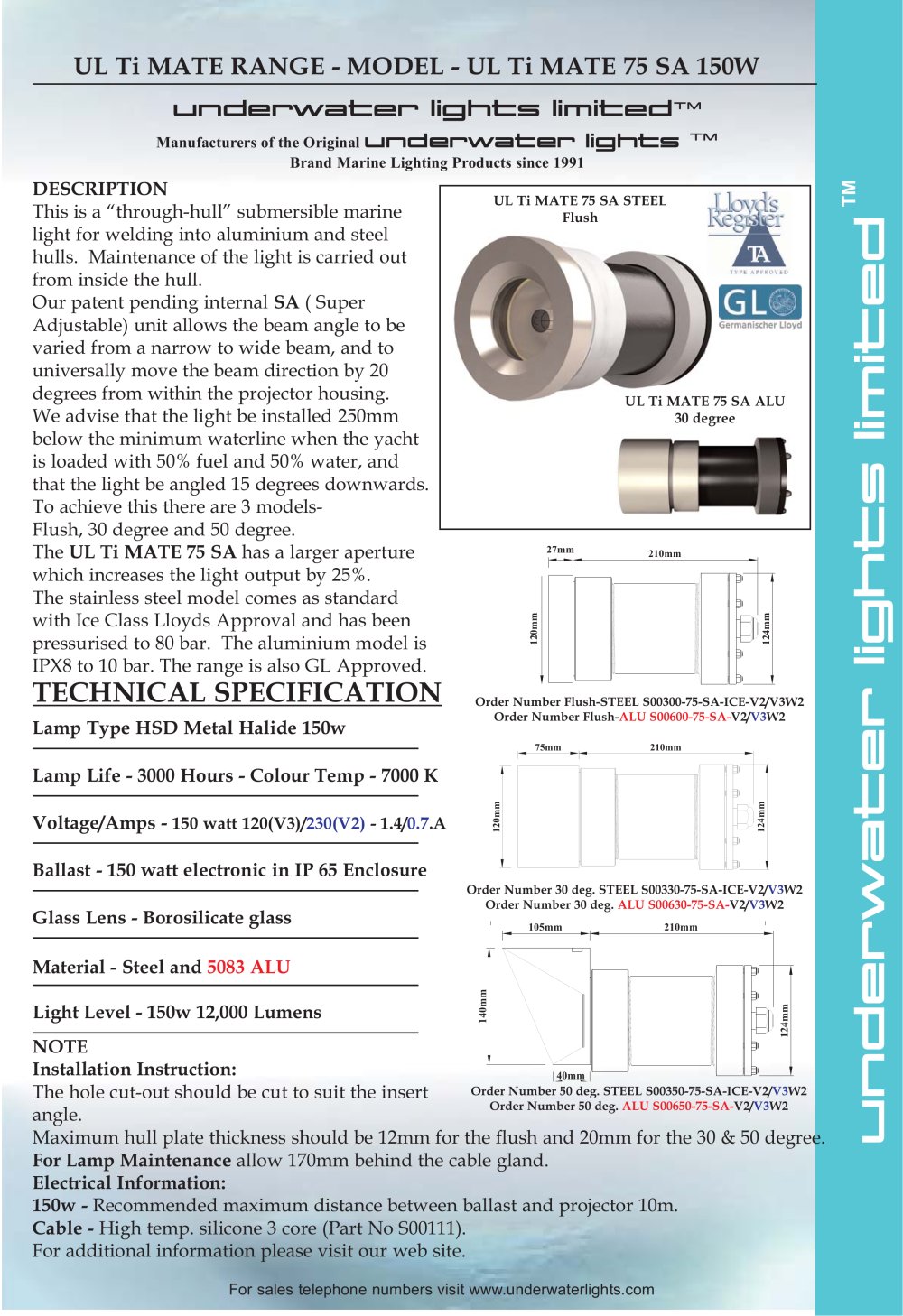

UL Ti MATE RANGE - MODEL - UL Ti MATE 75 SA 150W underwater lights limited™ TECHNICAL SPECIFICATION Lamp Type HSD Metal Halide 150w UL Ti MATE 75 SA STEEL Flush UL Ti MATE 75 SA ALU 30 degree 124mm 210mm 120mm 27mm Order Number Flush-STEEL S00300-75-SA-ICE-V2/V3W2 Order Number Flush-ALU S00600-75-SA-V2/V3W2 75mm 210mm Voltage/Amps - 150 watt 120(V3)/230(V2) - 1.4/0.7.A 124mm 120mm Lamp Life - 3000 Hours - Colour Temp - 7000 K Ballast - 150 watt electronic in IP 65 Enclosure Glass Lens - Borosilicate glass Order Number 30 deg. STEEL S00330-75-SA-ICE-V2/V3W2 Order Number 30 deg. ALU S00630-75-SA-V2/V3W2 105mm 210mm 124mm Light Level - 150w 12,000 Lumens 140mm Material - Steel and 5083 ALU NOTE Installation Instruction: 40mm Order Number 50 deg. STEEL S00350-75-SA-ICE-V2/V3W2 The hole cut-out should be cut to suit the insert Order Number 50 deg. ALU S00650-75-SA-V2/V3W2 angle. Maximum hull plate thickness should be 12mm for the flush and 20mm for the 30 & 50 degree. For Lamp Maintenance allow 170mm behind the cable gland. Electrical Information: 150w - Recommended maximum distance between ballast and projector 10m. Cable - High temp. silicone 3 core (Part No S00111). For additional information please visit our web site. For sales telephone numbers visit www.underwaterlights.com underwater lights limited DESCRIPTION This is a “through-hull” submersible marine light for welding into aluminium and steel hulls. Maintenance of the light is carried out from inside the hull. Our patent pending internal SA ( Super Adjustable) unit allows the beam angle to be varied from a narrow to wide beam, and to universally move the beam direction by 20 degrees from within the projector housing. We advise that the light be installed 250mm below the minimum waterline when the yacht is loaded with 50% fuel and 50% water, and that the light be angled 15 degrees downwards. To achieve this there are 3 modelsFlush, 30 degree and 50 degree. The UL Ti MATE 75 SA has a larger aperture which increases the light output by 25%. The stainless steel model comes as standard with Ice Class Lloyds Approval and has been pressurised to 80 bar. The aluminium model is IPX8 to 10 bar. The range is also GL Approved. ™ TM Manufacturers of the Original underwater lights Brand Marine Lighting Products since 1991
