underwater lights limited ™

Manufactured by the Original

underwater lights

TM

Brand Marine Lighting Products

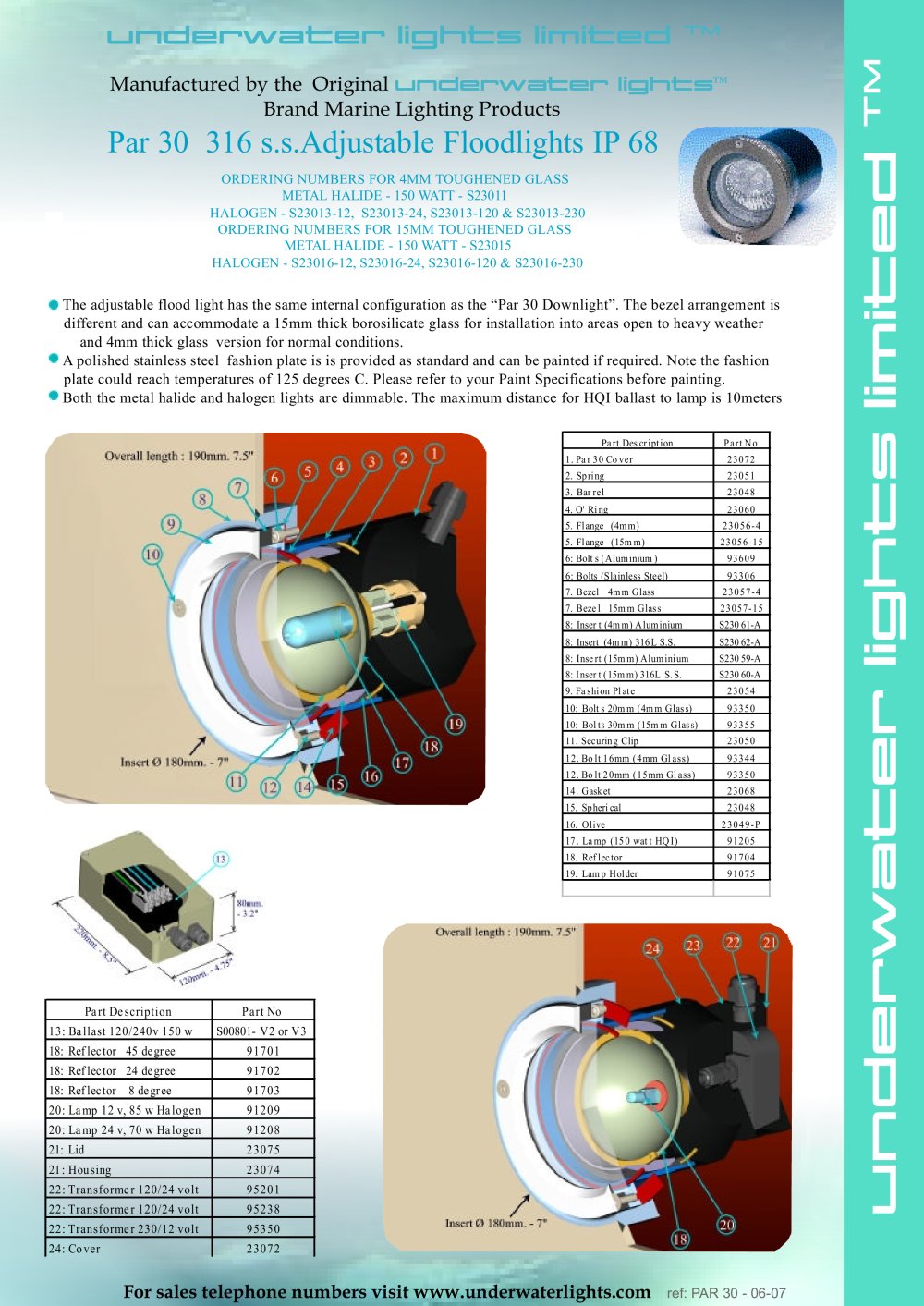

Par 30 316 s.s.Adjustable Floodlights IP 68

ORDERING NUMBERS FOR 4MM TOUGHENED GLASSMETAL HALIDE - 150 WATT - S23011 HALOGEN - S23013-12, S23013-24, S23013-120 & S23013-230ORDERING NUMBERS FOR 15MM TOUGHENED GLASSMETAL HALIDE - 150 WATT - S23015HALOGEN - S23016-12, S23016-24, S23016-120 & S23016-230

The adjustable flood light has the same internal configuration as the “Par 30 Downlight”. The bezel arrangement is different and can accommodate a 15mm thick borosilicate glass for installation into areas open to heavy weather and 4mm thick glass version for normal conditions. A polished stainless steel fashion plate is is provided as standard and can be painted if required. Note the fashion plate could reach temperatures of 125 degrees C. Please refer to your Paint Specifications before painting.Both the metal halide and halogen lights are dimmable. The maximum distance for HQI ballast to lamp is 10meters

Part DescriptionPart No1. Par 30 Cover230722. Spring230513. Barrel230484. O' Ring230605. Flange (4mm)23056-45. Flange (15mm)23056-156: Bolts (Aluminium)936096: Bolts (Slainless Steel)933067. Bezel 4mm Glass23057-47. Bezel 15mm Glass23057-158: Insert (4mm) AluminiumS23061-A8: Insert (4mm) 316L S.S.S23062-A8: Insert (15mm) AluminiumS23059-A8: Insert (15mm) 316L S.S.S23060-A9. Fashion Plate2305410: Bolts 20mm (4mm Glass)9335010: Bolts 30mm (15mm Glass)9335511. Securing Clip2305012. Bolt 16mm (4mm Glass)9334412. Bolt 20mm (15mm Glass)9335014. Gasket2306815. Spherical2304816. Olive23049-P17. Lamp (150 watt HQI)9120518. Reflector9170419. Lamp Holder91075 Part DescriptionPart No13: Ballast 120/240v 150 wS00801-V2 or V318: Reflector 45 degree9170118: Reflector 24 degree9170218: Reflector 8 degree9170320: Lamp 12 v, 85 w Halogen9120920: Lamp 24 v, 70 w Halogen9120821: Lid2307521: Housing2307422: Transformer 120/24 volt9520122: Transformer 120/24 volt9523822: Transformer 230/12 volt9535024:
underwater lights limited ™ Cover23072

For sales telephone numbers visit www.underwaterlights.com

ref: PAR 30 - 06-07
