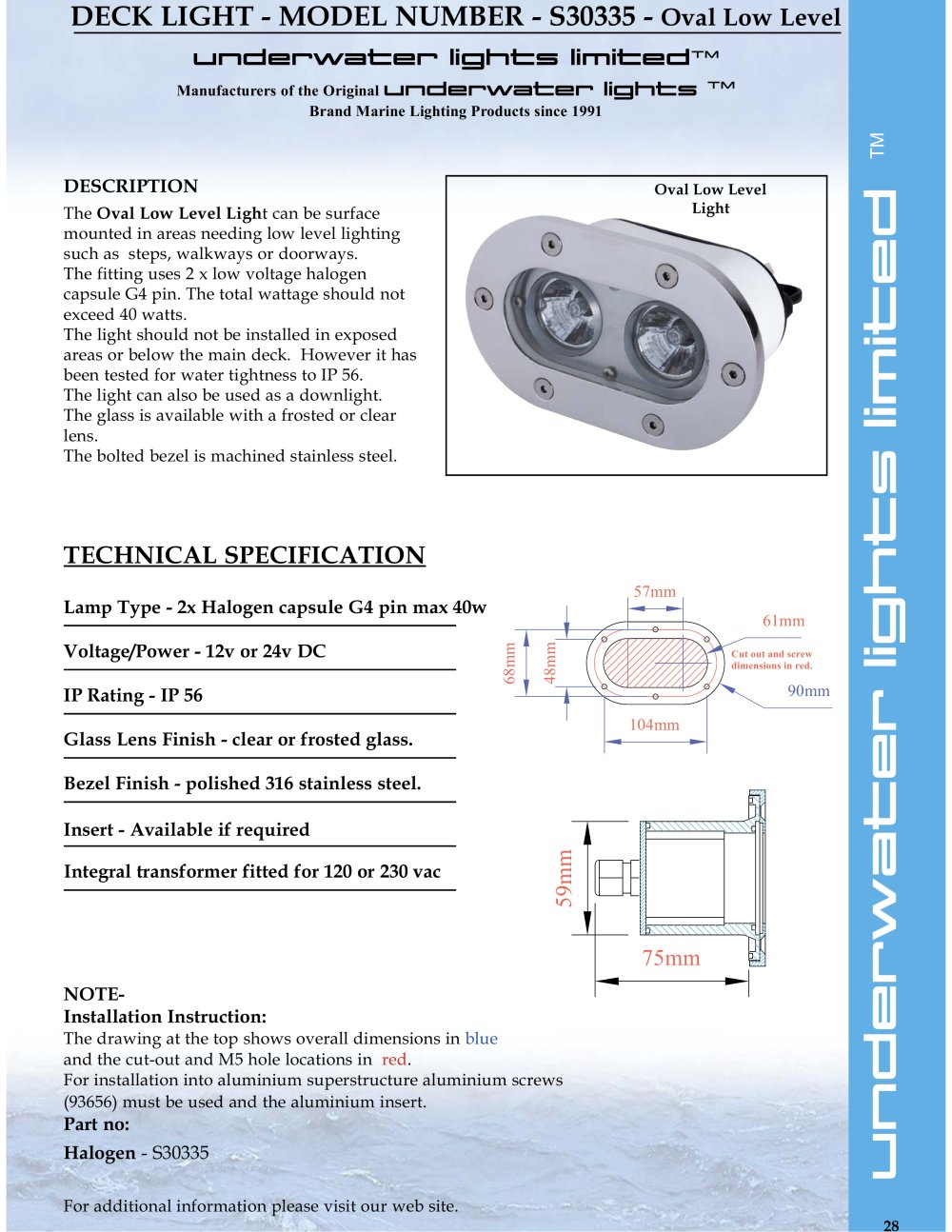

DECK LIGHT - MODEL NUMBER - S30335 - Oval Low Level underwater lights limited™ ™ DESCRIPTION 2YDO /RZ /HYHO /LJKW The Oval Low Level Light can be surface mounted in areas needing low level lighting such as steps, walkways or doorways. The fitting uses 2 x low voltage halogen capsule G4 pin. The total wattage should not exceed 40 watts. The light should not be installed in exposed areas or below the main deck. However it has been tested for water tightness to IP 56. The light can also be used as a downlight. The glass is available with a frosted or clear lens. The bolted bezel is machined stainless steel. TECHNICAL SPECIFICATION PP Lamp Type - 2x Halogen capsule G4 pin max 40w PP PP Voltage/Power - 12v or 24v DC PP &XW RXW DQG VFUHZ GLPHQVLRQV LQ UHG PP IP Rating - IP 56 PP Glass Lens Finish - clear or frosted glass. Bezel Finish - polished 316 stainless steel. Integral transformer fitted for 120 or 230 vac PP Insert - Available if required PP NOTEInstallation Instruction: The drawing at the top shows overall dimensions in blue and the cut-out and M5 hole locations in red. For installation into aluminium superstructure aluminium screws (93656) must be used and the aluminium insert. Part no: Halogen - S30335 XQGHUZDWHU OLJKWV OLPLWHG 70 Manufacturers of the Original underwater lights Brand Marine Lighting Products since 1991 For additional information please visit our web site.
