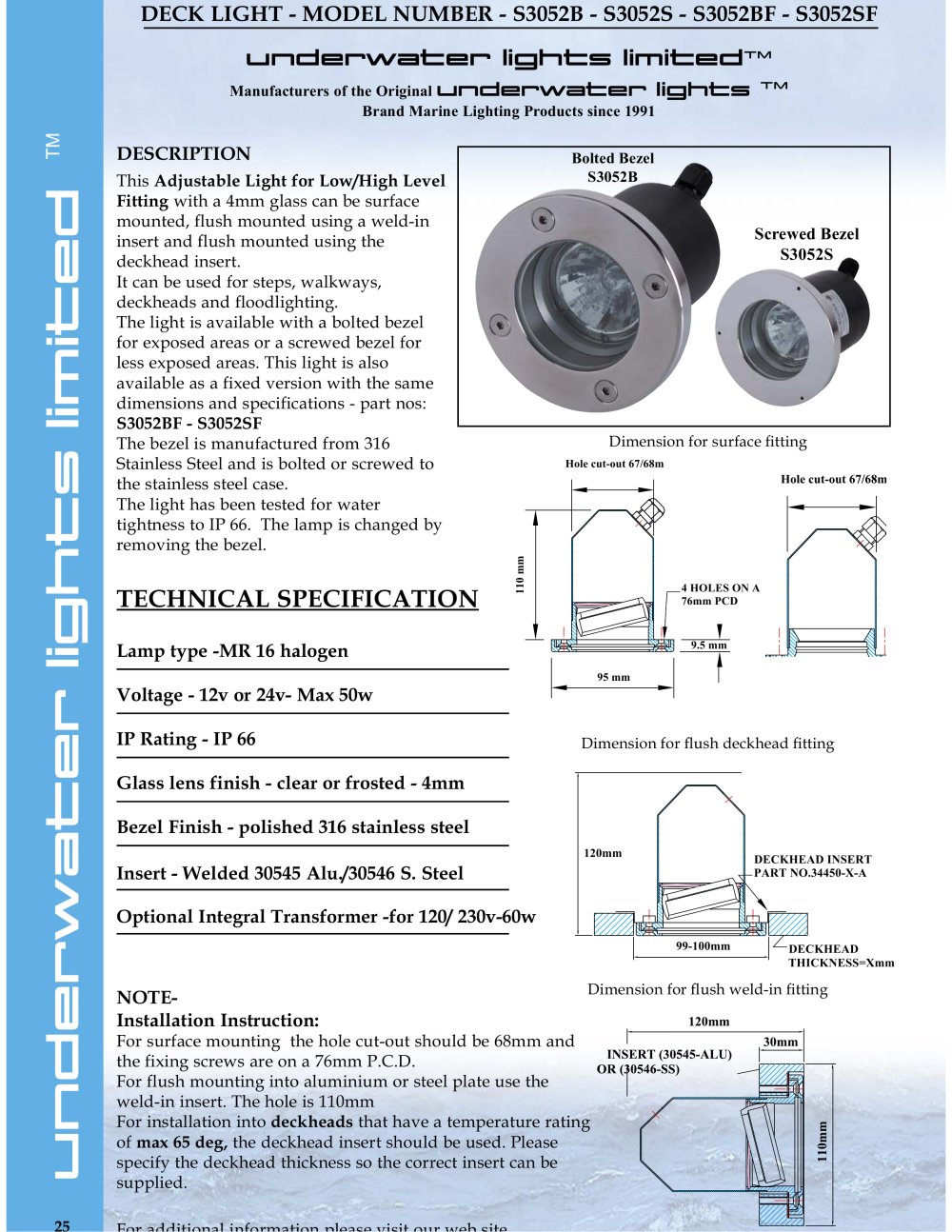

DECK LIGHT - MODEL NUMBER - S3052B - S3052S - S3052BF - S3052SF

undsrwi

•r^ ligi—its limitecd

Manufacturers of the Original I_II n I'—" '\/vx=3H i—M » ligi |fc«

Brand Marine Lighting Products since 1991

DESCRIPTION

This Adjustable Light for Low/High Level

Fitting with a 4mm glass can be surface

mounted, flush mounted using a weld-in

insert and flush mounted using the

deckhead insert.

It can be used for steps, walkways,

deckheads and floodlighting.

The light is available with a bolted bezel

for exposed areas or a screwed bezel for

less exposed areas. This light is also

available as a fixed version with the same

dimensions and specifications - part nos:

S3052BF - S3052SF

The bezel is manufactured from 316

Stainless Steel and is bolted or screwed to

the stainless steel case.

The light has been tested for water

tightness to IP 66. The lamp is changed by

removing the bezel.

TECHNICAL SPECIFICATION

Lamp type -MR 16 halogen

Voltage - 12v or 24v- Max 50w

Bolted Bezel

S3052B

Screwed Bezel

S3052S

Dimension for surface fitting

Hole cut-out 67/68m

Hole cut-out 67/68m

4 HOLES ON A

76mm PCD

IP Rating - IP 66

Glass lens finish - clear or frosted - 4mm

Bezel Finish - polished 316 stainless steel

Insert - Welded 30545 Alu./30546 S. Steel

Optional Integral Transformer -for 120/ 230v-60w

Dimension for flush deckhead fitting

DECKHEAD INSERT

-PART NO.34450-X-A

DECKHEAD

THICKNESS=Xmm

NOTE-

Installation Instruction:

For surface mounting the hole cut-out should be 68mm and

the fixing screws are on a 76mm P.CD.

For flush mounting into aluminium or steel plate use the

weld-in insert. The hole is 110mm

For installation into deckheads that have a temperature rating

of max 65 deg, the deckhead insert should be used. Please

specify the deckhead thickness so the correct insert can be

supplied.

Tnr*r ^irlrlì fiondi infnfmafinn nlaacp ^ncif mil- TA7£ih cifri

Dimension for flush weld-in fitting

120mm

INSERT (30545-ALU)

OR(30546-SS)

30mm
