HYDRAULIC STEERING SYSTEMS - 44 Pages

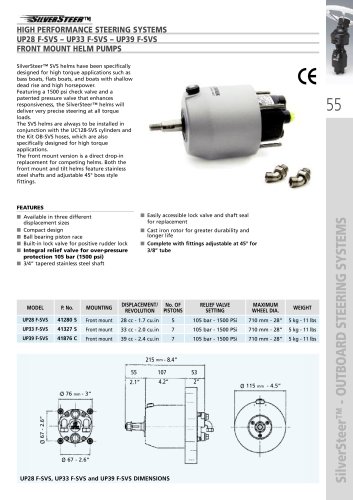

HIGH PERFORMANCE STEERING SYSTEMS

UP28 F-SVS - UP33 F-SVS - UP39 F-SVS

FRONT MOUNT HELM PUMPS

SilverSteer™ SVS helms have been specifically

designed for high torque applications such as

bass boats, flats boats, and boats with shallow

dead rise and high horsepower.

Featuring a 1500 psi check valve and a

patented pressure valve that enhances

responsiveness, the SilverSteer™ helms will

deliver very precise steering at all torque

loads.

The SVS helms are always to be installed in

conjunction with the UC128-SVS cylinders and

the Kit OB-SVS hoses, which are also

specifically designed for high torque

applications.

The front mount version is a direct drop-in

replacement for competing helms. Both the

front mount and tilt helms feature stainless

steel shafts and adjustable 45° boss style

fittings.

FEATURES

■ Available in three different

displacement sizes

■ Compact design

■ Ball bearing piston race

■ Built-in lock valve for positive rudder lock

■ Integral relief valve for over-pressure

protection 105 bar (1500 psi)

■ 3/4" tapered stainless steel shaft

Easily accessible lock valve and shaft seal

for replacement

Cast iron rotor for greater durability and

longer life

Complete with fittings adjustable at 45° for

3/8" tube

MODEL

P. No.

MOUNTING

DISPLACEMENT/

REVOLUTION

No. OF

PISTONS

RELIEF VALVE

SETTING

MAXIMUM

WHEEL DIA.

WEIGHT

UP28 F-SVS

41280 S

Front mount

28 cc - 1.7 cu.in

5

105 bar - 1500 PSi

710 mm - 28"

5 kg -11 lbs

UP33 F-SVS

41327 S

Front mount

33 cc - 2.0 cu.in

7

105 bar - 1500 PSi

710 mm - 28"

5 kg -11 lbs

UP39 F-SVS

41876 C

Front mount

39 cc - 2.4 cu.in

7

105 bar - 1500 PSi

710 mm - 28"

5 kg -11 lbs

21 5 mm-8.4"

55 107 53

UP28 F-SVS, UP33 F-SVS and UP39 F-SVS DIMENSIONS
