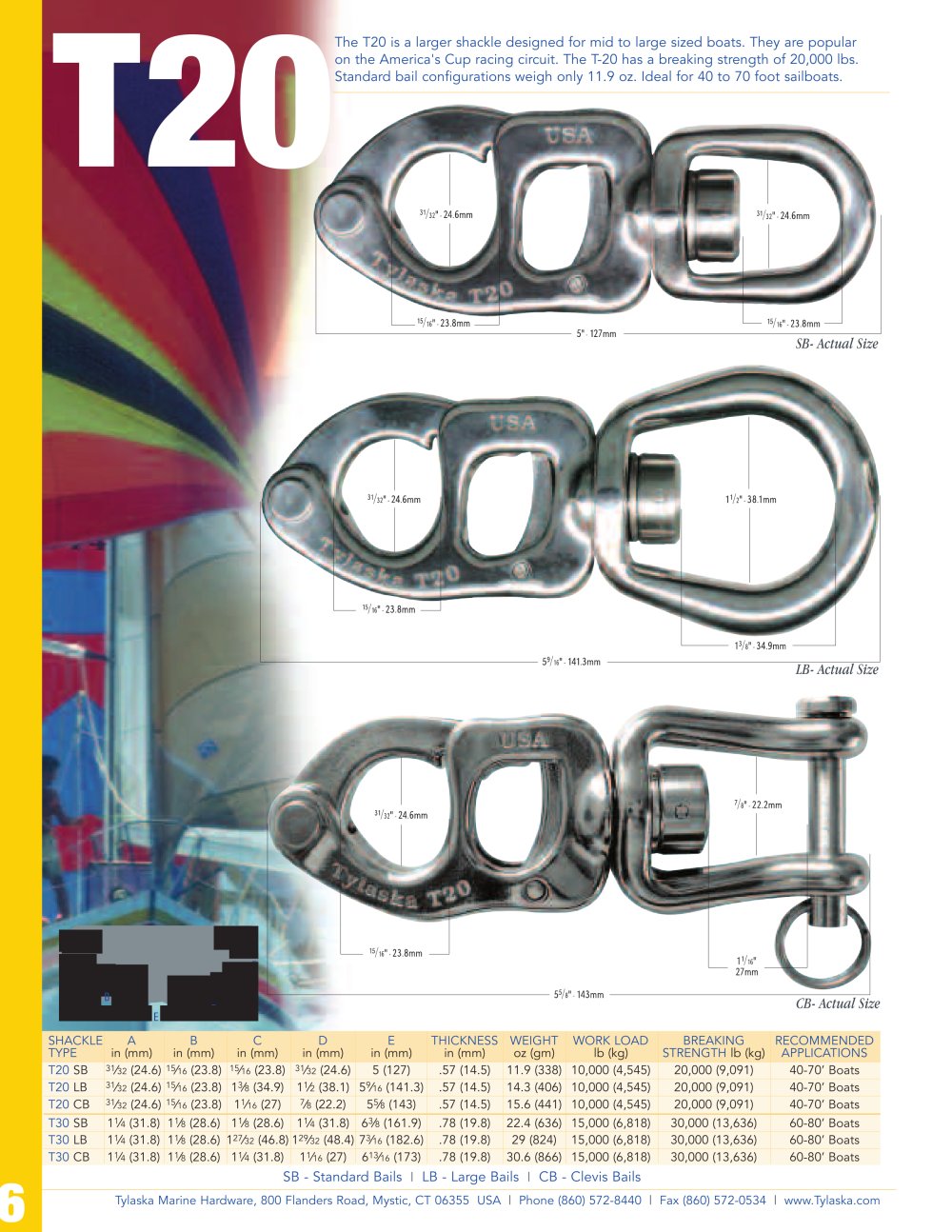

T20

The T20 is a larger shackle designed for mid to large sized boats. They are popularon the America's Cup racing circuit. The T-20 has a breaking strength of 20,000 lbs. Standard bail configurations weigh only 11.9 oz. Ideal for 40 to 70 foot sailboats.

SB- Actual Size LB- Actual Size CB- Actual Size

SHACKLEABCDETHICKNESSWEIGHTWORK LOADBREAKINGRECOMMENDEDTYPE in (mm)in (mm)in (mm)in (mm)in (mm)in (mm)oz (gm)lb (kg) STRENGTH lb (kg) APPLICATIONS T20 SB
31 �
32 (24.6)
15 �
16 (23.8)
15 �
16 (23.8)
31 �
32 (24.6)5 (127).57 (14.5)11.9 (338)10,000 (4,545)20,000 (9,091)40-70’ Boats T20 LB
31 �
32 (24.6)
15 �
16 (23.8)1
3 �
8 (34.9)1
1 �
2 (38.1)5
9 �
16 (141.3).57 (14.5)14.3 (406)10,000 (4,545)20,000 (9,091)40-70’ Boats T20 CB
31 �
32 (24.6)
15 �
16 (23.8)1
1 �
16 (27)
7 �
8 (22.2)5
5 �
8 (143).57 (14.5)15.6 (441)10,000 (4,545)20,000 (9,091)40-70’ Boats T30 SB1
1 �
4 (31.8)1
1 �
8 (28.6)1
1 �
8 (28.6)1
1 �
4 (31.8)6
3 �
8 (161.9).78 (19.8)22.4 (636)15,000 (6,818)30,000 (13,636)60-80’ Boats T30 LB1
1 �
4 (31.8)1
1 �
8 (28.6)1
27 �
32 (46.8)1
29 �
32 (48.4)7
3 �
16 (182.6).78 (19.8)29 (824)15,000 (6,818)30,000 (13,636)60-80’ Boats T30 CB1
1 �
4 (31.8)1
1 �
8 (28.6)1
1 �
4 (31.8)1
1 �
16 (27)6
13 �
16 (173).78 (19.8)30.6 (866)15,000 (6,818)30,000 (13,636)60-80’ Boats

6

SB - Standard Bails

|

LB - Large Bails

|

CB - Clevis Bails
