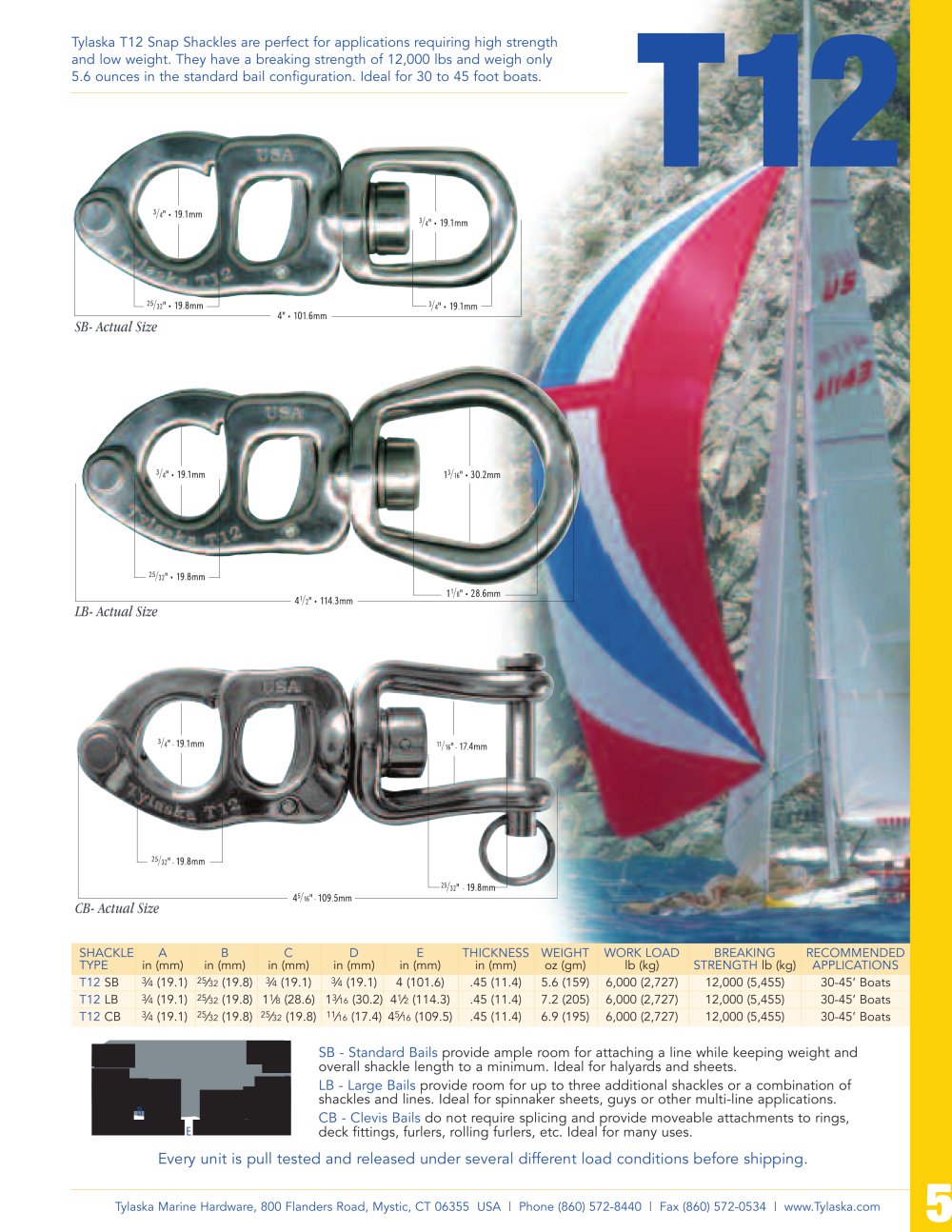

| | | | | | | | | | | | | | | | | | | | | | | | T12 | | | | | | Tylaska T12 Snap shackles are perfect for applications requiring high strength and low weight. They have a breaking strength of 12,000 lbs and weigh only 5.6 ounces in the standard bail configuration. Ideal for 30 to 45 foot boats. | | | | | | | | | | | | | | CB- Actual Size | | | | | | | | | | | | | | | | | | | | | | | | | | SHACKLE TYPE | A in (mm) | B in (mm) | C in (mm) | D in (mm) | E in (mm) | THICKNESS in (mm) | WEIGHT oz (gm) | WORK LOAD lb (kg) | BREAKING STRENGTH lb (kg) | RECOMMENDED APPLICATIONS | | | | T12 SB | 3/4 (19.1) | 25/32 (1 9.8) | 3/4 (19.1) | 3/4 (19.1) | 4 (101.6) | .45 (11.4) | 5.6 (159) | 6,000 (2,727) | 12,000 (5,455) | 30-45' Boats | | | | T12 LB | 3/4 (19.1) | 25/32 (1 9.8) | 1V8 (28.6) | 13/16 (30.2) | 4V2 (114.3) | .45 (11.4) | 7.2 (205) | 6,000 (2,727) | 12,000 (5,455) | 30-45' Boats | | | | T12 CB | 3/4 (19.1) | 25/32 (1 9.8) | 25/32 (19.8) | "/16 (17.4) | 45/16 (109.5) | .45 (11.4) | 6.9 (195) | 6,000 (2,727) | 12,000 (5,455) | 30-45' Boats | | | | | | | | | | | | | | | | | | | | | | | | | | SB - Standard Bails provide ample room for attaching a line while keeping weight and overall shackle length to a minimum. Ideal for halyards and sheets. LB - Large Bails provide room for up to three additional shackles or a combination of shackles and lines. Ideal for spinnaker sheets, guys or other multi-line applications. CB - Clevis Bails do not require splicing and provide moveable attachments to rings, deck fittings, furlers, rolling furlers, etc. Ideal for many uses. Every unit is pull tested and released under several different load conditions before shipping. | | | | | | | | | | 5 | | | | | Tylaska Marine hardware, 800 Flanders Road, Mystic, CT 06355 USA I Phone (860) 572-8440 I Fax (860) 572-0534 I www.Tylaska.com | | | | | | | | | | | | | | | | | | | | | | | | | | | |
|
