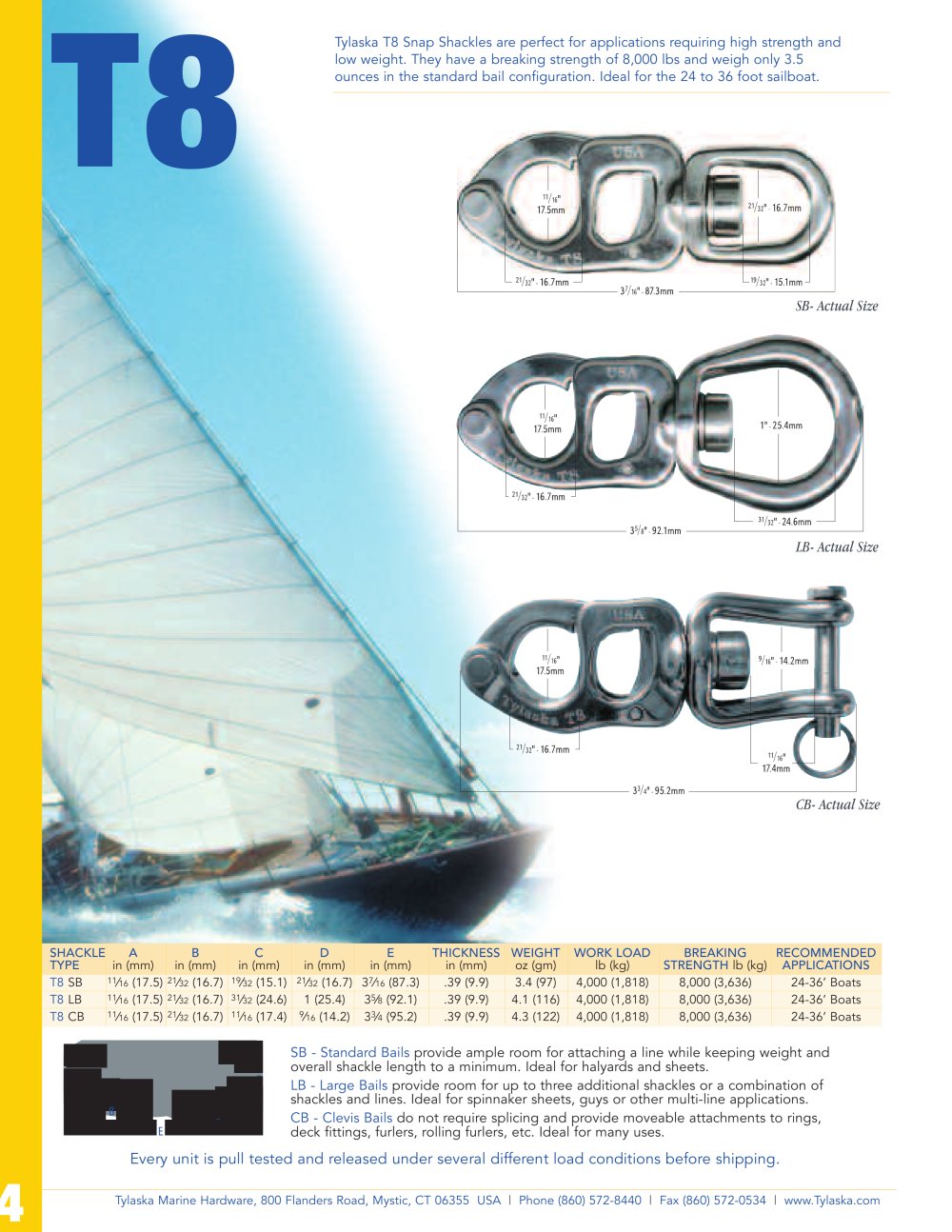

| | | | | | | | | | | | | | | | | | | | | | | | | Tylaska T8 Snap shackles are perfect for applications requiring high strength and low weight. They have a breaking strength of 8,000 lbs and weigh only 3.5 ounces in the standard bail configuration. Ideal for the 24 to 36 foot sailboat. | | | | | | | | | | 3 7/i6" - 87.3mm | | | | | | | | | | SB- Actual Size | | | | | | | | | | CB- Actual Size | | | | | | | | | | | | | | | | | | | | | | | | | | SHACKLE TYPE | A in (mm) | B in (mm) | C in (mm) | D in (mm) | E in (mm) | THICKNESS in (mm) | WEIGHT oz (gm) | WORK LOAD lb (kg) | BREAKING STRENGTH lb (kg) | RECOMMENDED APPLICATIONS | | | | T8 SB | "/16 (17.5) | 21/32 (16.7) | 19/32 (15.1) | 21/32 (16.7) | 37/16 (87.3) | .39 (9.9) | 3.4 (97) | 4,000 (1,818) | 8,000 (3,636) | | | | | T8 LB | 11/16 (17.5) | 21/32 (16.7) | 31/32 (24.6) | 1 (25.4) | 35/8 (92.1) | .39 (9.9) | 4.1 (116) | 4,000 (1,818) | 8,000 (3,636) | 24-36' Boats | | | | T8 CB | "/6 (17.5) | 21/32 (16.7) | "/16 (17.4) | 9/16 (14.2) | 33/t (95.2) | .39 (9.9) | 4.3 (122) | 4,000 (1,818) | 8,000 (3,636) | 24-36' Boats | | | | | | | | | | | | | | | | | | | | | | | | | | SB - Standard Bails provide ample room for attaching a line while keeping weight and overall shackle length to a minimum. Ideal for halyards and sheets. LB - Large Bails provide room for up to three additional shackles or a combination of shackles and lines. Ideal for spinnaker sheets, guys or other multi-line applications. CB - Clevis Bails do not require splicing and provide moveable attachments to rings, deck fittings, furlers, rolling furlers, etc. Ideal for many uses. Every unit is pull tested and released under several different load conditions before shipping. | | | | | | | | | 4 | | | | | | Tylaska Marine hardware, 800 Flanders Road, Mystic, CT 06355 USA I Phone (860) 572-8440 I Fax (860) 572-0534 I www.Tylaska.com | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
|
