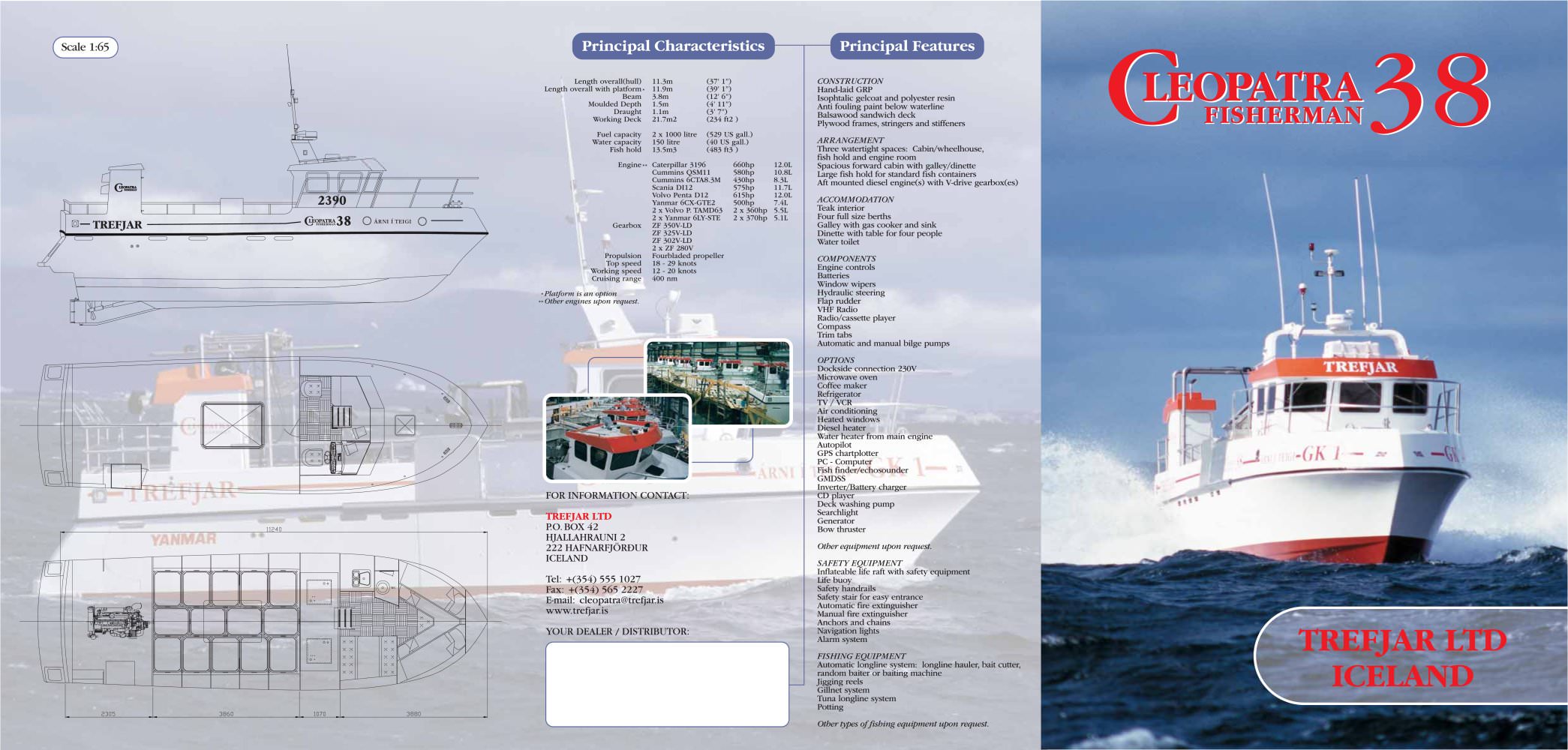

Catalogue Cleopatra Fisherman 38
www.cleopatra.is
print switch display
Page / 2
Make a request
Trefjar - 3074, 3027, 17731, 16486, 4397, 17086, 4127, 152375, 4060
/ 2
See other catalogues for Trefjar
Text version of the page
( Scale 1:65 )
Principal Characteristics
Principal Features
3 8
CONSTRUCTION Hand-laid GRP
Isophtalic gelcoat and polyester resin Marine anti fouling paint below waterline Balsawood sandwich deck Plywood frames, stringers and stiffeners
ARRANGEMENT
Three watertight spaces: Cabin/wheelhouse,
fish hold and engine room
Spacious forward cabin with galley/dinette
Large fish hold for standard fish containers
Aft mounted marine diesel engine(s) with V-drive gearbox(es)
ACCOMMODATION
Teak interior
Four full size berths
Galley with gas cooker and sink
Dinette with table for four people
Water toilet
COMPONENTS Engine controls Batteries Window wipers Hydraulic steering Flap rudder VHF Radio Radio/cassette player Compass Trim tabs
Automatic and manual bilge pumps OPTIONS
Dockside connection 230V Microwave oven Coffee maker Refrigerator TV/VCR Air conditioning Heated windows Diesel heater
Marine water heater from main engine Autopilot Gps chartplotter PC - Computer Fish finder/echosounder GMDSS
Inverter/Battery charger ^L^Eyer Deck washing pump Searchlight Generator Bow thruster
Other equipment upon request.
SAFETY EQUIPMENT , Inflateable life raft with safety equipment Life marine buoy Safety handrails Safety stair for easy entrance Automatic fire extinguisher Manual fire extinguisher Anchors and chains Navigation lights Alarm system
FISHING EQUIPMENT
Automatic longline system: longline hauler, bait cutter, random baiter or baiting machine Jigging reels Gillnet system Tuna longline system Potting
Other types of fishing equipment upon request.
Length overall(hull) Length overall with platform* Beam Moulded Depth Draught Working Deck
Fuel capacity Water capacity Fish hold
Engine*
(37' 1") (39' 1") (12' 6") (4' 11") (3' 7") (234 ft2 )
(529 US gall.) (40 US gall.) (483 ft3 )
11.3m
11.9m
3.8m
1.5m
1.1m
21.7m2
2 X 1000 litre 150 litre 13.5m3
Caterpillar 3196 Cummins QSM11 Cummins 6CTA8.3M Scania DI12 Volvo Penta D12 Yanmar 6CX-GTE2 2 x Volvo P. TAMD63 2 x Yanmar 6LY-STE ZF 350V-LD ZF 325V-LD ZF 302V-LD 2 x ZF 280V Fourbladed propeller 18 - 29 knots 12 - 20 knots 400 nm
660hp 580hp 430hp 575hp 6l5hp 500hp 2 x 360hp 2 x 370hp
12.0L
10.8L
8.3L
11.7L
12.0L
7.4L
5.5L
5.1L
Gearbox
Propulsion Top speed Working speed Cruising range
* Platform is an option ** Other engines upon request.
/ !
1
FOR INFORMATION CONTACT:
4lEFJARLTD
P.O. BOX 42 HJALLAHRAUNI 2 222 HAFNARFJORDUR ICELAND
Tel: +(354) 555 1027 Fax: +(354) 565 2227 E-mail: cleopatra@trefjar.is www.trefjar.is
YOUR DEALER / DISTRIBUTOR:
V TREEJAR LTD
