pr-2000 - 5 / 17 Pages

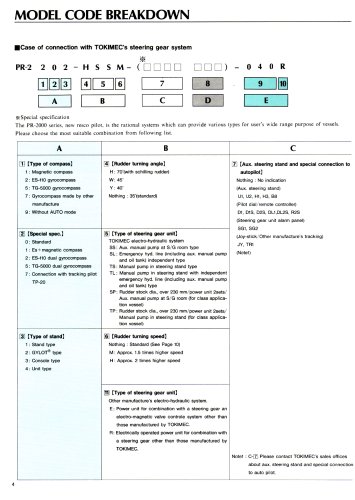

MODEL CODE BREAKDOWN

■Case of connection with TOKIMEC's steering gear system

PR-2 2 0 2- HSSM-(DDDD □□□)

- 0 4 0 R

1

8

10

B

D

^Special specification

The PR-2000 series, new resco pilot, is the rational systems which can provide various types for user's wide range purpose of vessels.

Please choose the most suitable combination from following list.

B

GD [Type of compass]

1 : Magnetic compass

2 : ES-110 gyrocompass

5 : TG-5000 gyrocompass

7 : Gyrocompass made by other

manufacture

9 : Without AUTO mode

4 [Rudder turning angle]

H : 70°(with schilling rudder)

W: 45°

Y : 40°

Nothing : 35°(standard)

2 [Special spec.]

0 : Standard

1 : Es+ magnetic compass

2 : ES-110 dual gyrocompass

5 : TG-5000 dual gyrocompass

7 : Connection with tracking pilot

TP-20

[5j [Type of steering gear unit]

TOKIMEC electro-hydraulic system

SS : Aux. manual pump at S/G room type

Emergency hyd. line (including aux. manual pump

and oil tank) independent type

Manual pump in steering stand type

Manual pump in steering stand with independent

emergency hyd. line (including aux. manual pump

and oil tank) type

Rudder stock dia., over 230 mm/power unit 2sets/

Aux. manual pump at S/G room (for class applica-

tion vessel)

Rudder stock dia., over 230 mm/power unit 2sets/

Manual pump in steering stand (for class applica-

tion vessel)

SL:

TS:

TL:

SP:

TP:

g] [Type of stand]

1 : Stand type

2 : GYLOT® type

3 : Console type

4 : Unit type

[6] [Rudder turning speed]

Nothing : Standard (See Page 10)

M: Approx. 1.5 times higher speed

H : Approx. 2 times higher speed

11 [Type of steering gear unit]

Other manufacture's electro-hydraulic system.

E : Power unit for combination with a steering gear an

electro-magnetic valve controle system other than

those manufactured by TOKIMEC.

R: Electrically operated power unit for combination with

a steering gear other than those manufactured by

TOKIMEC.

7 [Aux. steering stand and special connection to

autopilot]

Nothing : No indication

(Aux. steering stand)

U1, U2, H1, H3, B8

(Pilot dial/remote controller)

D1, D1S, D2S, DL1.DL2S, R2S

(Steering gear unit alarm panel)

SG1, SG2

(Joy-stick/Other manufacture's tracking)

JY, TR1

(Notel)

Notel : C-T] Please contact TOKIMEC's sales offices

about aux. steering stand and special connection

to auto pilot.

4
