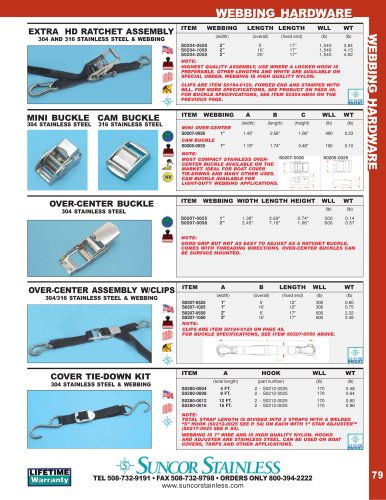

Catalog - 81 / 144 Pages

WEBBING HARDWARE
WEBBING HARDWARE
ITEM
WEBBING
LENGTH LENGTH
(width)
304 AND 316 STAINLESS STEEL & WEBBING
(overall)
WLL
(lb)
(fixed end)
WT
(lb)
S0204-0550
2"
5’
17”
1,540
3.84
S0204-1050
2"
10’
17”
1,540
4.13
S0204-2050
2"
20’
17”
1,540
4.62
NOTE:
HIGHEST QUALITY ASSEMBLY, USE WHERE A LOCKED HOOK IS
PREFERABLE. OTHER LENGTHS AND WHITE ARE AVAILABLE ON
SPECIAL ORDER. WEBBING IS HIGH QUALITY NYLON.
CLIPS ARE ITEM S0184-0120, FORGED END AND STAMPED WITH
WLL. FOR MORE SPECIFICATIONS, SEE PRODUCT ON PAGE 48.
FOR BUCKLE SPECIFICATIONS, SEE ITEM S0204-HD50 ON THE
PREVIOUS PAGE.
MINI BUCKLE CAM BUCKLE
304 STAINLESS STEEL
316 STAINLESS STEEL
ITEM
WEBBING
MINI OVER-CENTER
S0207-0026
1"
CAM BUCKLE
S0205-0025
1"
A
B
(width)
(length)
C
1.43"
1.19"
WLL
(lb)
(lb)
2.56"
1.06"
400
0.33
1.74"
0.48"
100
0.10
NOTE:
S0207-0026
MOST COMPACT STAINLESS OVERCENTER BUCKLE AVAILABLE ON THE
MARKET. IDEAL FOR BOAT COVER
TIE-DOWNS AND MANY OTHER USES.
CAM BUCKLE AVAILABLE FOR
LIGHT-DUTY WEBBING APPLICATIONS.
OVER-CENTER BUCKLE
ITEM
WT
(height)
S0205-0025
WEBBING WIDTH LENGTH HEIGHT
WLL
304 STAINLESS STEEL
WT
(lb)
S0207-0025
S0207-0050
1"
2"
1.39"
2.45"
3.69"
7.16"
(lb)
300
600
0.74"
1.06"
WEBBING HARDWARE
WEBBING HARDWARE
EXTRA HD RATCHET ASSEMBLY
0.14
0.57
NOTE:
GOOD GRIP BUT NOT AS EASY TO ADJUST AS A RATCHET BUCKLE.
COMES WITH THREADING DIRECTIONS. OVER-CENTER BUCKLES CAN
BE SURFACE MOUNTED.
OVER-CENTER ASSEMBLY W/CLIPS
304/316 STAINLESS STEEL & WEBBING
ITEM
A
B
LENGTH
WLL
(width)
(overall)
(fixed end)
(lb)
WT
(lb)
S0207-0525
1"
5’
12"
300
S0207-1025
1"
10’
12"
300
S0207-0550
2"
5’
17"
600
S0207-1050
2"
10’
17"
600
NOTE:
CLIPS ARE ITEM S0184-0120 ON PAGE 48.
FOR BUCKLE SPECIFICATIONS, SEE ITEM S0207-0050 ABOVE.
0.60
0.75
2.32
2.48
ITEM
WT
304 STAINLESS STEEL & WEBBING
A
HOOK
WLL
(total length)
(part number)
(lb)
S0280-0004
S0280-0008
4 FT.
8 FT.
2 - S0212-0025
2 - S0212-0025
170
170
0.48
0.64
S0280-0012
S0280-0016
COVER TIE-DOWN KIT
12 FT.
16 FT.
2 - S0212-0025
2 - S0212-0025
170
170
0.80
0.96
(lb)
NOTE:
TOTAL STRAP LENGTH IS DIVIDED INTO 2 STRAPS WITH A WELDED
“S” HOOK (S0212-0025 SEE P 54) ON EACH WITH 1” STAR ADJUSTERTM
.
(S0217-0025 SEE P. 84).
WEBBING IS 1” WIDE AND IS HIGH QUALITY NYLON. HOOKS
AND ADJUSTER ARE STAINLESS STEEL. CAN BE USED ON BOAT
COVERS, TARPS AND OTHER APPLICATIONS.
TEL 508-732-9191 • FAX 508-732-9798 • ORDERS ONLY 800-394-2222
www.suncorstainless.com
79
