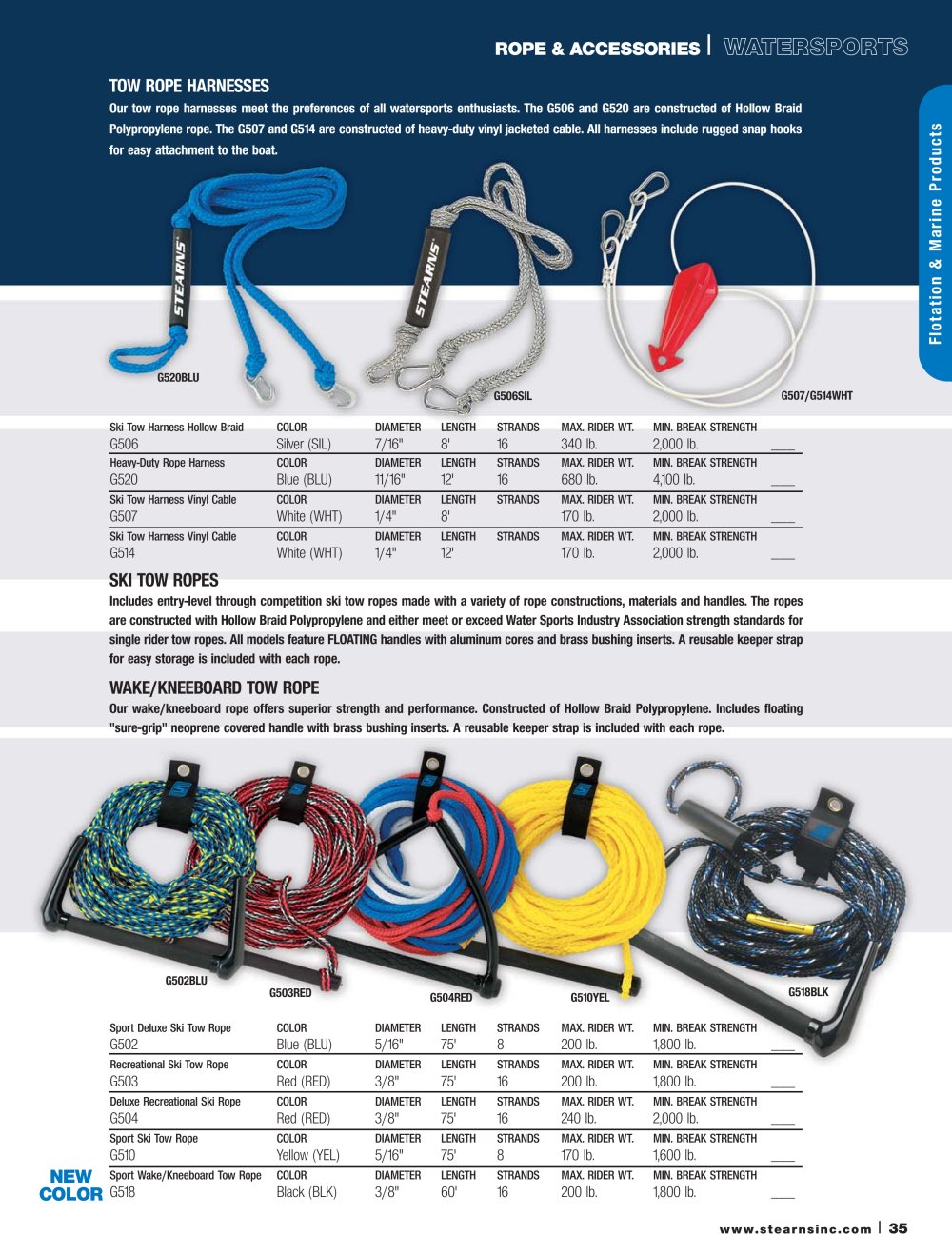

ROPE & ACCESSORIES

ı

WATERSPORTS

TOW ROPE HARNESSES

Our tow rope harnesses meet the preferences of all watersports enthusiasts. The G506 and G520 are constructed of Hollow BraidPolypropylene rope. The G507 and G514 are constructed of heavy-duty vinyl jacketed cable. All harnesses include rugged snap hooksfor easy attachment to the boat.
Flotation & Marine Products Ski Tow Boat harness Hollow Braid COLOR DIAMETER LENGTH STRANDS MAX. RIDER WT. MIN. BREAK STRENGTH

G506 Silver (SIL) 7/16" 8' 16 340 lb. 2,000 lb.___

Heavy-Duty Rope Harness COLOR DIAMETER LENGTH STRANDS MAX. RIDER WT. MIN. BREAK STRENGTH

G520 Blue (BLU) 11/16" 12' 16 680 lb. 4,100 lb.___

Ski Tow Harness Vinyl Cable COLOR DIAMETER LENGTH STRANDS MAX. RIDER WT. MIN. BREAK STRENGTH

G507 White (WHT) 1/4" 8' 170 lb. 2,000 lb.___

Ski Tow Harness Vinyl Cable COLOR DIAMETER LENGTH STRANDS MAX. RIDER WT. MIN. BREAK STRENGTH

G514 White (WHT) 1/4" 12' 170 lb. 2,000 lb.___

SKI TOW ROPES

Includes entry-level through competition ski tow ropes made with a variety of rope constructions, materials and handles. The ropesare constructed with Hollow Braid Polypropylene and either meet or exceed Water sports Industry Association strength standards forsingle rider tow ropes. All models feature FLOATING handles with aluminum cores and brass bushing inserts. A reusable keeper strapfor easy storage is included with each rope.

WAKE/KNEEBOARD TOW ROPE

Our wake/kneeboard rope offers superior strength and performance. Constructed of Hollow Braid Polypropylene. Includes floating"sure-grip" neoprene covered handle with brass bushing inserts. A reusable keeper strap is included with each rope.
G502BLUG503REDG504REDG510YELG518BLK G507/G514WHTG506SILG520BLU Sport Deluxe Ski Tow RopeCOLORDIAMETERLENGTHSTRANDSMAX. RIDER WT.MIN. BREAK STRENGTH

G502 Blue (BLU) 5/16" 75' 8 200 lb. 1,800 lb.___

Recreational Ski Tow Rope COLOR DIAMETER LENGTH STRANDS MAX. RIDER WT. MIN. BREAK STRENGTH

G503 Red (RED) 3/8" 75' 16 200 lb. 1,800 lb.___

Deluxe Recreational Ski RopeCOLOR DIAMETER LENGTH STRANDS MAX. RIDER WT. MIN. BREAK STRENGTH

G504 Red (RED) 3/8" 75' 16 240 lb. 2,000 lb.___

Sport Ski Tow Rope COLOR DIAMETER LENGTH STRANDS MAX. RIDER WT. MIN. BREAK STRENGTH

G510 Yellow (YEL) 5/16" 75' 8 170 lb. 1,600 lb.___

NEWCOLOR

Sport Wake/Kneeboard Tow Rope COLOR DIAMETER LENGTH STRANDS MAX. RIDER WT. MIN. BREAK STRENGTH

G518 Black (BLK) 3/8" 60' 16 200 lb. 1,800 lb.___

www.stearnsinc.com

ı

35
