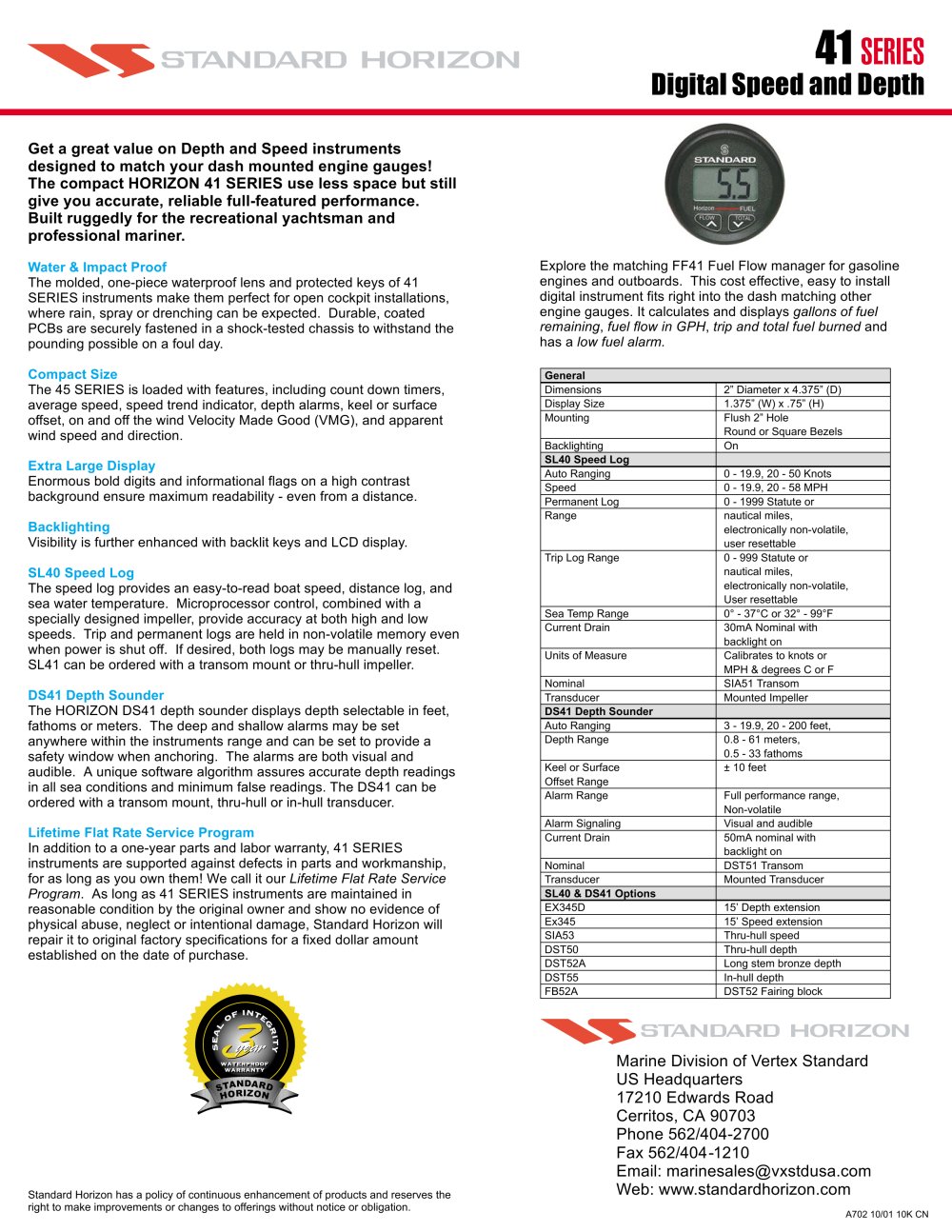

| | | | | | | | | | | | | | | | | | | | | | | 41 SERIES Digital Speed and Depth | | | | | | | | | | Get a great value on Depth and Speed instruments designed to match your dash mounted engine for boats gauges! The compact HORIZON 41 SERIES use less space but still give you accurate, reliable full-featured performance. Built ruggedly for the recreational yachtsman and professional mariner. Water & Impact Proof The molded, one-piece waterproof lens and protected keys of 41 SERIES instruments make them perfect for open cockpit installations, where rain, spray or drenching can be expected. Durable, coated PCBs are securely fastened in a shock-tested chassis to withstand the pounding possible on a foul day. Compact Size The 45 SERIES is loaded with features, including count down timers, average speed, speed trend indicator, depth boat alarms, keel or surface offset, on and off the wind Velocity Made Good (VMG), and apparent wind speed and direction. Extra Large Display Enormous bold digits and informational flags for boats on a high contrast background ensure maximum readability - even from a distance. Backlighting Visibility is further enhanced with backlit keys and LCD display. SL40 Speed Log The speed log provides an easy-to-read boat for boat speed, distance log, and sea water temperature. Microprocessor control, combined with a specially designed impeller, provide accuracy at both high and low speeds. Trip and permanent logs are held in non-volatile memory even when power is shut off. If desired, both logs may be manually reset. SL41 can be ordered with a transom mount or thru-hull impeller. The HORIZON DS41 depth sounder displays depth selectable in feet, fathoms or meters. The deep and shallow alarms may be set anywhere within the instruments range and can be set to provide a safety window when anchoring. The alarms are both visual and audible. A unique software for boat algorithm assures accurate depth readings in all sea conditions and minimum false readings. The DS41 can be ordered with a transom mount, thru-hull or in-hull transducer. Lifetime Flat Rate Service Program In addition to a one-year parts and labor warranty, 41 SERIES instruments are supported against defects in parts and workmanship, for as long as you own them! We call it our Lifetime Flat Rate Service Program. As long as 41 SERIES instruments are maintained in reasonable condition by the original owner and show no evidence of physical abuse, neglect or intentional damage, Standard Horizon will repair it to original factory specifications for a fixed dollar amount established on the date of purchase. | | | | | | Explore the matching FF41 Fuel Flow manager for gasoline engines and outboards. This cost effective, easy to install digital instrument fits right into the dash matching other engine gauges. It calculates and displays gallons of fuel remaining, fuel flow in GPH, trip and total fuel burned and has a low fuel alarm. | | | | | | | | | | | | | | | | | General | | | | Dimensions | 2" Diameter x 4.375" (D) | | | | Display Size | 1.375" (W) x .75" (H) | | | | Mounting | Flush 2" Hole | | | | | Round or Square Bezels | | | | Backlighting | On | | | | SL40 Speed Log | | | | | Auto Ranging | 0-19.9, 20-50 Knots | | | | Speed | 0-19.9, 20-58MPH | | | | Permanent Log | 0 - 1999 Statute or | | | | Range | nautical miles, | | | | | electronically non-volatile, | | | | | user resettable | | | | Trip Log Range | 0 - 999 Statute or | | | | | nautical miles, | | | | | electronically non-volatile, | | | | | User resettable | | | | Sea Temp Range | 0° - 37°C or 32° - 99°F | | | | Current Drain | 30mA Nominal with | | | | | backlight on | | | | Units of Measure | Calibrates to knots or | | | | | MPH & degrees C or F | | | | Nominal | SIA51 Transom | | | | Transducer | Mounted Impeller | | | | DS41 Depth Sounder | | | | | Auto Ranging | 3-19.9, 20-200 feet, | | | | Depth Range | 0.8 - 61 meters, | | | | | 0.5 - 33 fathoms | | | | Keel or Surface | ± 10 feet | | | | Offset Range | | | | | Alarm Range | Full performance range, | | | | | Non-volatile | | | | Alarm Signaling | Visual and audible | | | | Current Drain | 50mA nominal with | | | | | backlight on | | | | Nominal | DST51 Transom | | | | Transducer | Mounted Transducer | | | | SL40 & DS41 Options | | | | | EX345D | 15' Depth extension | | | | Ex345 | 15' Speed extension | | | | SIA53 | Thru-hull speed | | | | DST50 | Thru-hull depth | | | | DST52A | Long stem bronze depth | | | | DST55 | In-hull depth | | | | FB52A | | | | | | | | | | | | | | | | | | | | | | ^ STANDARD HORIZON Marine Division of Vertex Standard US Headquarters 17210 Edwards Road Cerritos, CA 90703 Phone 562/404-2700 Fax 562/404-1210 Email: marinesales@vxstdusa.com Web: www.standardhorizon.com A702 10/01 10KCN | | | | | | Standard Horizon has a policy of continuous enhancement of products and reserves the right to make improvements or changes to offerings without notice or obligation. | | | | | | | | | | | | | | | | | | | | | | | | | | |
|
