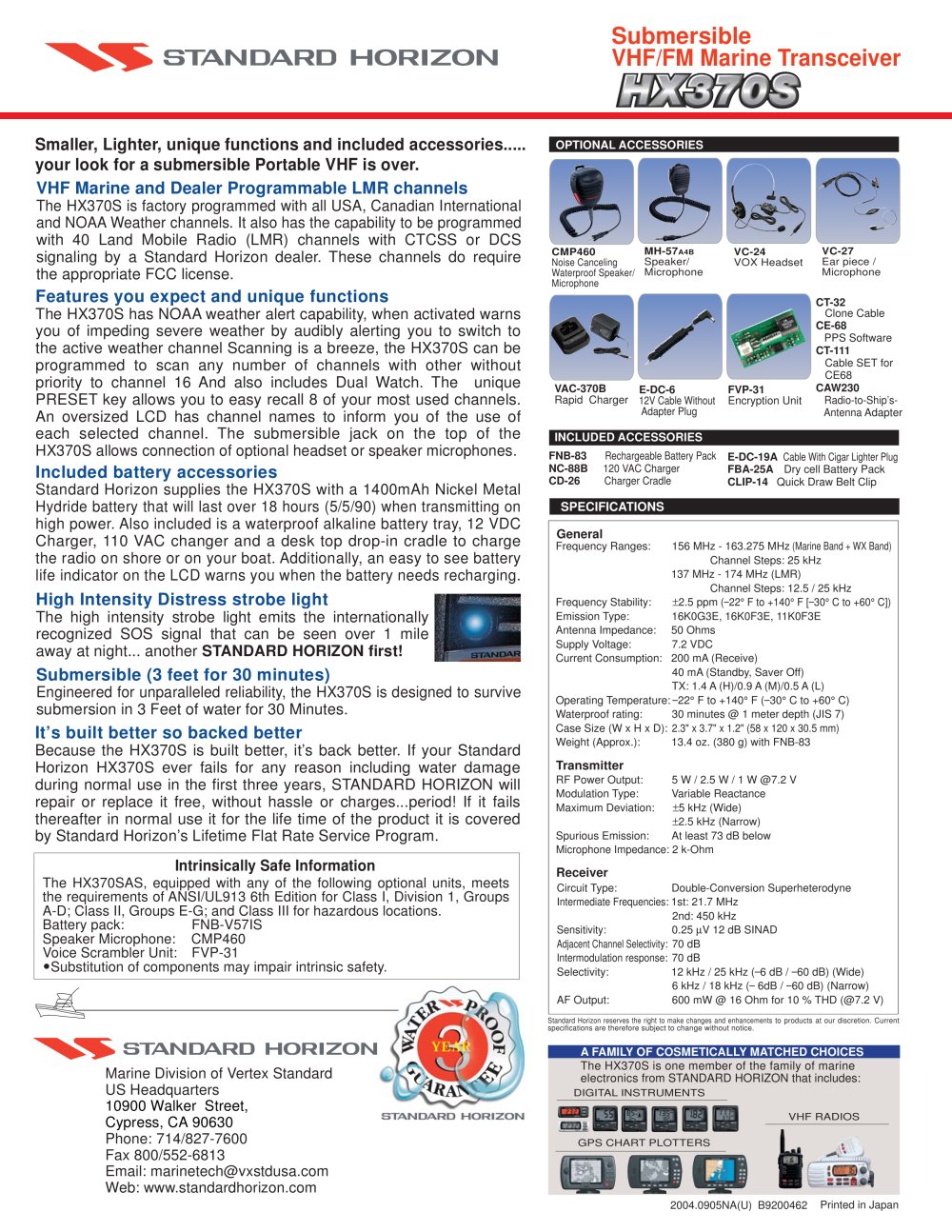

Submersible
VHF/FM Marine Transceiver
Smaller, Lighter, unique functions and included accessories.....
your look for a submersible Portable VHF is over.
VHF Marine and Dealer Programmable LMR channels
The HX370S is factory programmed with all USA, Canadian International
and NOAA Weather channels. It also has the capability to be programmed
with 40 Land Mobile Radio (LMR) channels with CTCSS or DCS
signaling by a Standard Horizon dealer. These channels do require
the appropriate FCC license.
OPTIONAL ACCESSORIES
MH-57A4B
CMP460
Speaker/
Noise Canceling
Waterproof Speaker/ Microphone
Microphone
VC-24
VOX Headset
Features you expect and unique functions
The HX370S has NOAA weather alert capability, when activated warns
you of impeding severe weather by audibly alerting you to switch to
the active weather channel Scanning is a breeze, the HX370S can be
programmed to scan any number of channels with other without
priority to channel 16 And also includes Dual Watch. The unique
PRESET key allows you to easy recall 8 of your most used channels.
An oversized LCD has channel names to inform you of the use of
each selected channel. The submersible jack on the top of the
HX370S allows connection of optional headset or speaker microphones.
Included battery accessories
Standard Horizon supplies the HX370S with a 1400mAh Nickel Metal
Hydride battery that will last over 18 hours (5/5/90) when transmitting on
high power. Also included is a waterproof alkaline battery tray, 12 VDC
Charger, 110 VAC changer and a desk top drop-in cradle to charge
the radio on shore or on your boat. Additionally, an easy to see battery
life indicator on the LCD warns you when the battery needs recharging.
High Intensity Distress strobe light
The high intensity strobe light emits the internationally
recognized SOS signal that can be seen over 1 mile
away at night... another STANDARD HORIZON first!
Submersible (3 feet for 30 minutes)
Engineered for unparalleled reliability, the HX370S is designed to survive
submersion in 3 Feet of water for 30 Minutes.
It’s built better so backed better
Because the HX370S is built better, it’s back better. If your Standard
Horizon HX370S ever fails for any reason including water damage
during normal use in the first three years, STANDARD HORIZON will
repair or replace it free, without hassle or charges...period! If it fails
thereafter in normal use it for the life time of the product it is covered
by Standard Horizon’s Lifetime Flat Rate Service Program.
Intrinsically Safe Information
The HX370SAS, equipped with any of the following optional units, meets
the requirements of ANSI/UL913 6th Edition for Class I, Division 1, Groups
A-D; Class II, Groups E-G; and Class III for hazardous locations.
Battery pack:
FNB-V57IS
Speaker Microphone: CMP460
Voice Scrambler Unit: FVP-31
•Substitution of components may impair intrinsic safety.
VAC-370B
E-DC-6
Rapid Charger 12V Cable Without
Adapter Plug
FVP-31
Encryption Unit
VC-27
Ear piece /
Microphone
CT-32
Clone Cable
CE-68
PPS Software
CT-111
Cable SET for
CE68
CAW230
Radio-to-Ship’sAntenna Adapter
INCLUDED ACCESSORIES
FNB-83
NC-88B
CD-26
Rechargeable Battery Pack
120 VAC Charger
Charger Cradle
E-DC-19A Cable With Cigar Lighter Plug
FBA-25A Dry cell Battery Pack
CLIP-14 Quick Draw Belt Clip
SPECIFICATIONS
General
Frequency Ranges:
156 MHz - 163.275 MHz (Marine Band + WX Band)
Channel Steps: 25 kHz
137 MHz - 174 MHz (LMR)
Channel Steps: 12.5 / 25 kHz
Frequency Stability:
±2.5 ppm (–22° F to +140° F [–30° C to +60° C])
Emission Type:
16K0G3E, 16K0F3E, 11K0F3E
Antenna Impedance: 50 Ohms
Supply Voltage:
7.2 VDC
Current Consumption: 200 mA (Receive)
40 mA (Standby, Saver Off)
TX: 1.4 A (H)/0.9 A (M)/0.5 A (L)
Operating Temperature: –22° F to +140° F (–30° C to +60° C)
Waterproof rating:
30 minutes @ 1 meter depth (JIS 7)
Case Size (W x H x D): 2.3" x 3.7" x 1.2" (58 x 120 x 30.5 mm)
Weight (Approx.):
13.4 oz. (380 g) with FNB-83
Transmitter
RF Power Output:
Modulation Type:
Maximum Deviation:
5 W / 2.5 W / 1 W @7.2 V
Variable Reactance
±5 kHz (Wide)
±2.5 kHz (Narrow)
Spurious Emission:
At least 73 dB below
Microphone Impedance: 2 k-Ohm
Receiver
Circuit Type:
Double-Conversion Superheterodyne
Intermediate Frequencies: 1st: 21.7 MHz
2nd: 450 kHz
Sensitivity:
0.25 µV 12 dB SINAD
Adjacent Channel Selectivity: 70 dB
Intermodulation response: 70 dB
Selectivity:
12 kHz / 25 kHz (–6 dB / –60 dB) (Wide)
6 kHz / 18 kHz (– 6dB / –60 dB) (Narrow)
AF Output:
600 mW @ 16 Ohm for 10 % THD (@7.2 V)
Standard Horizon reserves the right to make changes and enhancements to products at our discretion. Current
specifications are therefore subject to change without notice.
Marine Division of Vertex Standard
US Headquarters
10900 Walker Street,
Cypress, CA 90630
Phone: 714/827-7600
Fax 800/552-6813
Email: marinetech@vxstdusa.com
Web: www.standardhorizon.com
A FAMILY OF COSMETICALLY MATCHED CHOICES
The HX370S is one member of the family of marine
electronics from STANDARD HORIZON that includes:
DIGITAL INSTRUMENTS
VHF RADIOS
GPS CHART PLOTTERS
2004.0905NA(U) B9200462
Printed in Japan
