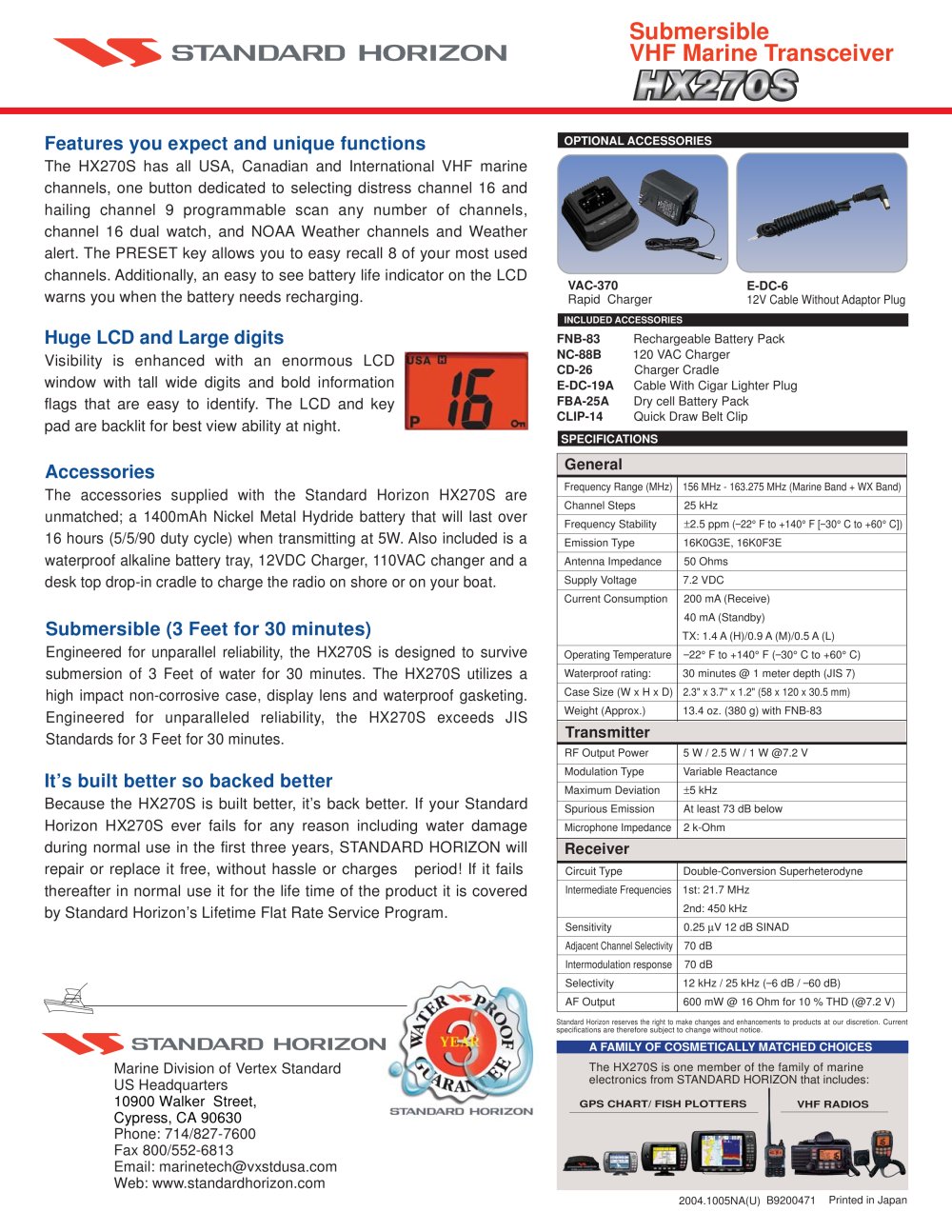

SubmersibleVHF Marine Marine transceiver Features you expect and unique functions

OPTIONAL ACCESSORIES

The HX270S has all USA, Canadian and International VHF marine channels, one button dedicated to selecting distress channel 16 and hailing channel 9 programmable scan any number of channels, channel 16 dual watch, and NOAA Weather channels and Weather alert. The PRESET key allows you to easy recall 8 of your most used channels. Additionally, an easy to see battery life indicator on the LCD warns you when the battery needs recharging.

VAC-370 E-DC-6 Rapid Charger for boat 12V Cable Without Adaptor Plug

INCLUDED ACCESSORIES

Huge LCD and Large digits

FNB-83 Rechargeable Battery Pack

Visibility is enhanced with an enormous LCD window with tall wide digits and bold information flags for boats that are easy to identify. The LCD and key pad are backlit for best view ability at night.

NC-88B 120 VAC Charger CD-26 Charger Cradle E-DC-19A Cable With Cigar Lighter Plug FBA-25A Dry cell Battery Pack CLIP-14 Quick Draw Belt Clip

SPECIFICATIONS

Accessories

General TransmitterReceiver The accessories supplied with the Standard Horizon HX270S are unmatched; a 1400mAh Nickel Metal Hydride battery that will last over 16 hours (5/5/90 duty cycle) when transmitting at 5W. Also included is a waterproof alkaline battery tray, 12VDC Charger, 110VAC changer and a desk top drop-in cradle to charge the radio on shore or on your boat.

Frequency Range (MHz) 156 MHz - 163.275 MHz (Marine Band + WX Band) Channel Steps 25 kHzFrequency Stability ± 2.5 ppm ( – 22 ° F to +140 ° F [ – 30 ° C to +60 ° C]) Emission Type 16K0G3E, 16K0F3EAntenna Impedance 50 Ohms Supply Voltage 7.2 VDC Current Consumption 200 mA (Receive) 40 mA (Standby) TX: 1.4 A (H)/0.9 A (M)/0.5 A (L)

Submersible (3 Feet for 30 minutes)

Engineered for unparallel reliability, the HX270S is designed to survive submersion of 3 Feet of water for 30 minutes. The HX270S utilizes a high impact non-corrosive case, display lens and waterproof gasketing. Engineered for unparalleled reliability, the HX270S exceeds JIS Standards for 3 Feet for 30 minutes.

Operating Temperature – 22 ° F to +140 ° F ( – 30 ° C to +60 ° C)Waterproof rating: 30 minutes @ 1 meter depth (JIS 7) Case Size (W x H x D) 2.3" x 3.7" x 1.2" (58 x 120 x 30.5 mm) Weight (Approx.) 13.4 oz. (380 g) with FNB-83RF Output Power 5 W / 2.5 W / 1 W @7.2 VModulation Type Variable ReactanceMaximum Deviation

It’s built better so backed better

± 5 kHzSpurious Emission At least 73 dB below

Because the HX270S is built better, it’s back better. If your Standard Horizon HX270S ever fails for any reason including water damage during normal use in the first three years, STANDARD HORIZON will repair or replace it free, without hassle or charges period! If it fails thereafter in normal use it for the life time of the product it is covered by Standard Horizon’s Lifetime Flat Rate Service Program.

Microphone Impedance 2 k-OhmCircuit Type Double-Conversion Superheterodyne Intermediate Frequencies 1st: 21.7 MHz 2nd: 450 kHz Sensitivity 0.25 µ V 12 dB SINAD Adjacent Channel Selectivity 70 dB Intermodulation response 70 dB Selectivity 12 kHz / 25 kHz ( – 6 dB / – 60 dB)AF Output 600 mW @ 16 Ohm for 10 % THD (@7.2 V)
Standard Horizon reserves the right to make changes and enhancements to products at our discretion. Current specifications are therefore subject to change without notice.

AFAMILY OF COSMETICALLY MATCHED CHOICES

Marine Division of Vertex Standard US Headquarters 10900 Walker Street, Cypress, CA 90630Phone: 714/827-7600Fax 800/552-6813Email: marinetech@vxstdusa.com Web: www.standardhorizon.com

The HX270S is one member of the family of marine electronicsfrom STANDARD HORIZON that includes:
