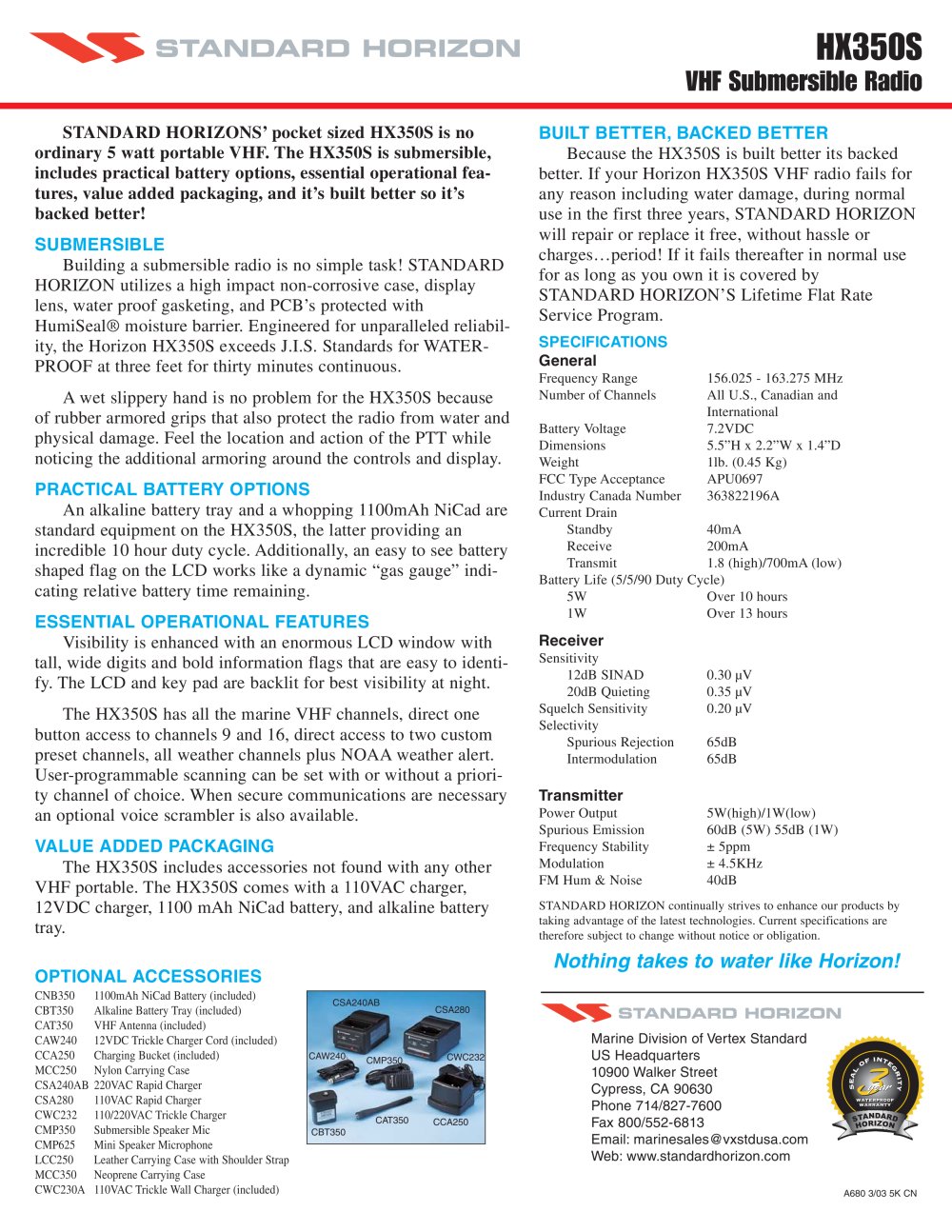

HX350S
EMPFÄNGER Submersible Radio
STANDARD HORIZON
BUILT BETTER, BACKED BETTER
Because the HX350S is built better its backed better. If your Horizon HX350S VHF radio fails for any reason including water damage, during normal
use in the first three years, STANDARD HORIZON
will repair or replace it free, without hassle or charges.. .period! If it fails thereafter in normal use for as long as you own it is covered by STANDARD HORIZON'S Lifetime Flat Rate Service Program.
STANDARD HORIZONS' pocket sized HX350S is no ordinary 5 watt portable VHF. The HX350S is submersible, includes practical battery options, essential operational fea­tures, value added packaging, and it's built better so it's backed better!
SUBMERSIBLE
Building a submersible radio is no simple task! STANDARD HORIZON utilizes a high impact non-corrosive case, display lens, water proof gasketing, and PCB's protected with HumiSeal® moisture barrier. Engineered for unparalleled reliabil­ity, the Horizon HX350S exceeds J.I.S. Standards for WATER­PROOF at three feet for thirty minutes continuous.
A wet slippery hand is no problem for the HX350S because of rubber armored grips that also protect the radio from water and physical damage. Feel the location and action of the PTT while noticing the additional armoring around the controls and display.
PRACTICAL BATTERY OPTIONS
An alkaline battery tray and a whopping 1100mAh NiCad are standard equipment on the HX350S, the latter providing an incredible 10 hour duty cycle. Additionally, an easy to see battery shaped flag on the LCD works like a dynamic "gas gauge" indi­cating relative battery time remaining.
ESSENTIAL OPERATIONAL FEATURES
Visibility is enhanced with an enormous LCD window with tall, wide digits and bold information flags for boats that are easy to identi­fy. The LCD and key pad are backlit for best visibility at night.
The HX350S has all the marine VHF channels, direct one button access to channels 9 and 16, direct access to two custom preset channels, all weather channels plus NOAA weather alert. User-programmable scanning can be set with or without a priori­ty channel of choice. When secure communications are necessary an optional voice scrambler is also available.
VALUE ADDED PACKAGING
The HX350S includes accessories not found with any other VHF portable. The HX350S comes with a 110VAC boat charger, 12VDC charger, 1100 mAh NiCad battery, and alkaline battery tray.
OPTIONAL ACCESSORIES
CNB350 HOOmAh NiCad Battery (included)
CBT350 Alkaline Battery Tray (included)
CAT350 Marine vhf antenna (included)
CAW240 12VDC Trickle Charger Cord (included)
CCA250 Charging Bucket (included)
MCC250 Nylon Carrying Case
CSA240AB 220VAC Rapid Charger
CSA280 110VAC Rapid Charger CWC232 110/220VAC Trickle Charger
CMP350 Submersible Marine speaker Mic
CMP625 Mini Speaker Microphone
LCC250 Leather Carrying Case with Shoulder Strap
MCC350 Neoprene Carrying Case
CWC230A 110VAC Trickle Wall Charger (included)
SPECIFICATIONS General
Frequency Range Number of Channels
Battery Voltage
Dimensions
Weight
FCC Type Acceptance Industry Canada Number Current Drain
Standby
Receive
Transmit Battery Life (5/5/90 Duty
5W
1W
Receiver
Sensitivity
12dB SINAD
20dB Quieting Squelch Sensitivity Selectivity
Spurious Rejection Intermodulation
Transmitter
Power Output
Spurious Emission
Frequency Stability
Modulation
FM Hum & Noise
156.025 - 163.275 MHz All U.S., Canadian and International 7.2VDC
5.5"H x 2.2"Wx 1.4"D 1lb. (0.45 Kg) APU0697 363822196A
40mA 200mA
1.8 (high)/700mA (low) Cycle)
Over 10 hours Over 13 hours
0.30 |iV 0.35 |iV 0.20 |iV
65dB 65dB
5W(high)/1W(low) 60dB (5W) 55dB (1W) ± 5ppm ± 4.5KHz 40dB
STANDARD HORIZON continually strives to enhance our products by taking advantage of the latest technologies. Current specifications are therefore subject to change without notice or obligation.
Nothing takes to water like Horizon!
Marine Division of Vertex Standard
US Headquarters
10900 Walker Street
Cypress, CA 90630
Phone 714/827-7600
Fax 800/552-6813
Email: marinesales@vxstdusa.com
Web: www.standardhorizon.com
A680 3/03 5K CN
