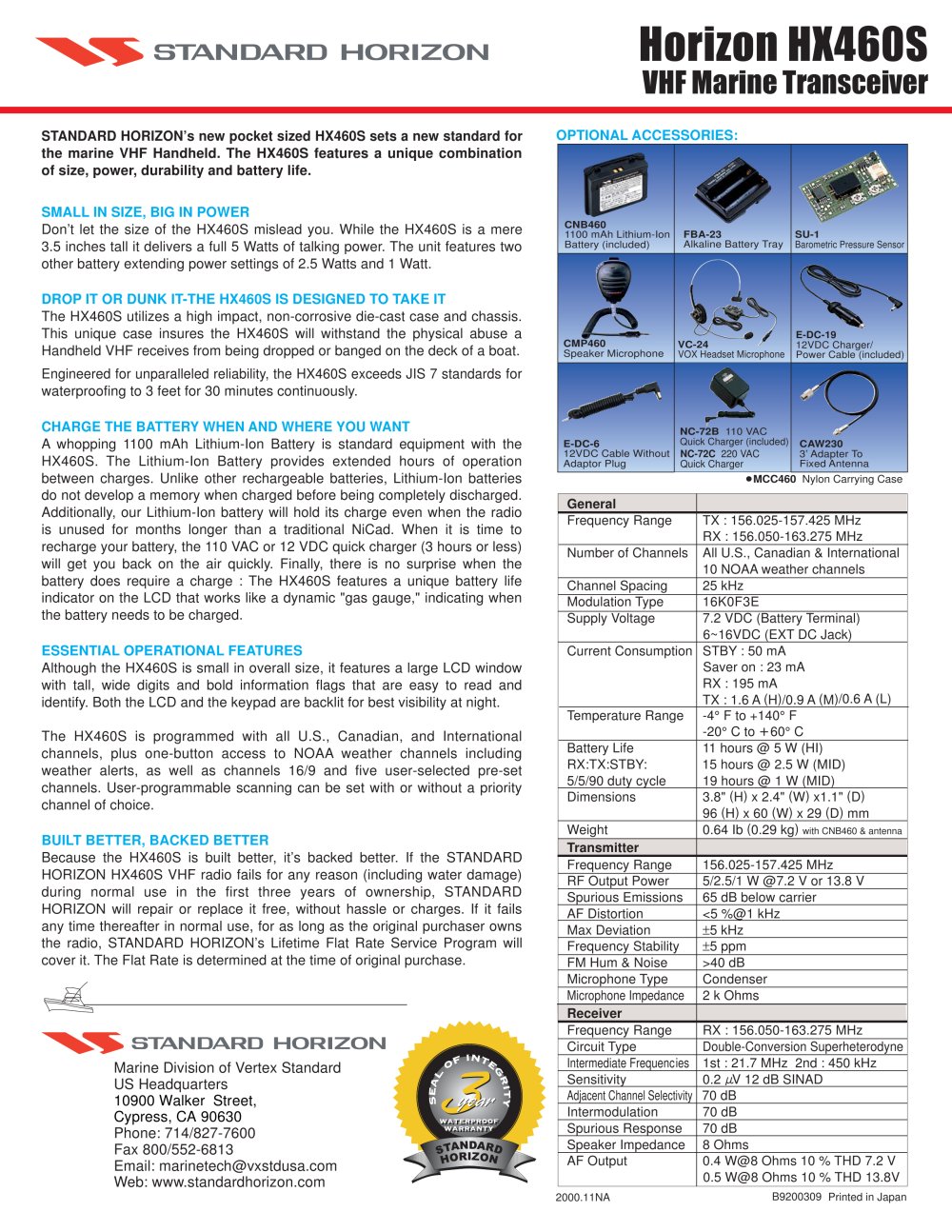

Horizon HX460S STANDARD HORIZON’s new pocket sized HX460S sets a new standard for OPTIONAL ACCESSORIES: the marine VHF Handheld. The HX460S features a unique combination of size, power, durability and battery life.SMALL IN SIZE, BIG IN POWER Don’t let the size of the HX460S mislead you. While the HX460S is a mere 3.5 inches tall it delivers a full 5 Watts of talking power. The unit features two other battery extending power settings of 2.5 Watts and 1 Watt. CNB460 1100 mAh Lithium-Ion Battery (included) FBA-23 SU-1 Alkaline Battery Tray Barometric Pressure Sensor DROP IT OR DUNK IT-THE HX460S IS DESIGNED TO TAKE IT The HX460S utilizes a high impact, non-corrosive die-cast case and chassis. This unique case insures the HX460S will withstand the physical abuse a MARINE HANDHELD VHF receives from being dropped or banged on the deck of a boat supplier. E-DC-19 CMP460 VC-24 12VDC Charger for boats/Power Cable (included) Boat speaker Microphone VOX Headset Microphone Engineered for unparalleled reliability, the HX460S exceeds JIS 7 standards forwaterproofing to 3 feet for 30 minutes continuously. CHARGE THE BATTERY WHEN AND WHERE YOU WANT NC-72B 110 VAC Awhopping 1100 mAh Lithium-Ion Battery is standard equipment with the HX460S. The Lithium-Ion Battery provides extended hours of operation between charges. Unlike other rechargeable batteries, Lithium-Ion batteries do not develop a memory when charged before being completely discharged. Additionally, our Lithium-Ion battery will hold its charge even when the marine radio is unused for months longer than a traditional NiCad. When it is time to recharge your battery, the 110 VAC or 12 VDC quick charger (3 hours or less) will get you back on the air quickly. Finally, there is no surprise when the battery does require a charge : The HX460S features a unique battery life indicator on the LCD that works like a dynamic "gas gauge," indicating when the battery needs to be charged. ESSENTIAL OPERATIONAL FEATURES E-DC-6 Quick Charger (included) CAW230 Although the HX460S is small in overall size, it features a large LCD window with tall, wide digits and bold information marine flags that are easy to read and identify. Both the LCD and the keypad are backlit for best visibility at night. The HX460S is programmed with all U.S., Canadian, and International channels, plus one-button access to NOAA weather channels including weather alerts, as well as channels 16/9 and five user-selected pre-set channels. User-programmable scanning can be set with or without a priority channel of choice. 12VDC Cable WithoutAdaptor Plug NC-72C ° 220 VAC Quick Charger F to +140 ° F -20 3’ Adapter ToFixed Marine antenna ° C to • MCC460 + 60 ° CBattery Life 11 hours @ 5 W (HI)
RX:TX:STBY: 15 hours @ 2.5 W (MID)
5/5/90 duty cycle 19 hours @ 1 W (MID)
Dimensions 3.8" (H) x 2.4" (W) x1.1" (D) 96(H) x 60 (W) x 29 (D) mmWeight 0.64 Ib (0.29 kg) Nylon Carrying Case General Frequency Range TX : 156.025-157.425 MHz
RX : 156.050-163.275 MHz
Number of Channels All U.S., Canadian & International
10 NOAA weather channelsChannel Spacing 25 kHzModulation Type 16K0F3ESupply Voltage 7.2 VDC (Battery Marine terminal)
6~16VDC (EXT DC Jack) Current Consumption STBY : 50 mA
Saver on : 23 mA
RX : 195 mA
TX : 1.6 A (H)/0.9 A (M)/0.6 A (L)Temperature Range -4 BUILT BETTER, BACKED BETTER Because the HX460S is built better, it’s backed better. If the STANDARD HORIZON HX460S Marine vhf radio fails for any reason (including water damage) during normal use in the first three years of ownership, STANDARD HORIZON will repair or replace it free, without hassle or charges. If it fails any time thereafter in normal use, for as long as the original purchaser owns the radio, STANDARD HORIZON’s Lifetime Flat Rate Service Program will cover it. The Flat Rate is determined at the time of original purchase. ± 5 kHzFrequency Stability with CNB460 & antenna Transmitter ± 5 ppmFM Hum & Noise >40 dB
Microphone Type Condenser Frequency Range 156.025-157.425 MHzRF Output Power 5/2.5/1 W @7.2 V or 13.8 V
Spurious Emissions 65 dB below carrier
AF Distortion <5 %@1 kHz
Max Deviation Microphone Impedance 2 k Ohms receiver Frequency Range RX : 156.050-163.275 MHzCircuit Type Double-Conversion Superheterodyne Marine Division of Vertex Standard US Headquarters
10900 Walker Street, Cypress, CA 90630Phone: 714/827-7600
Fax 800/552-6813
Email: marinetech@vxstdusa.com
Web: www.standardhorizon.com Intermediate Frequencies 1st : 21.7 MHz 2nd : 450 kHzSensitivity 0.2 V 12 dB SINAD Adjacent Channel Selectivity 70 dBIntermodulation 70 dBSpurious Response 70 dB
Speaker Impedance 8 Ohms
AF Output 0.4 W@8 Ohms 10 % THD 7.2 V
0.5 W@8 Ohms 10 % THD 13.8V 2000.11NAB9200309Printed in Japan
|
