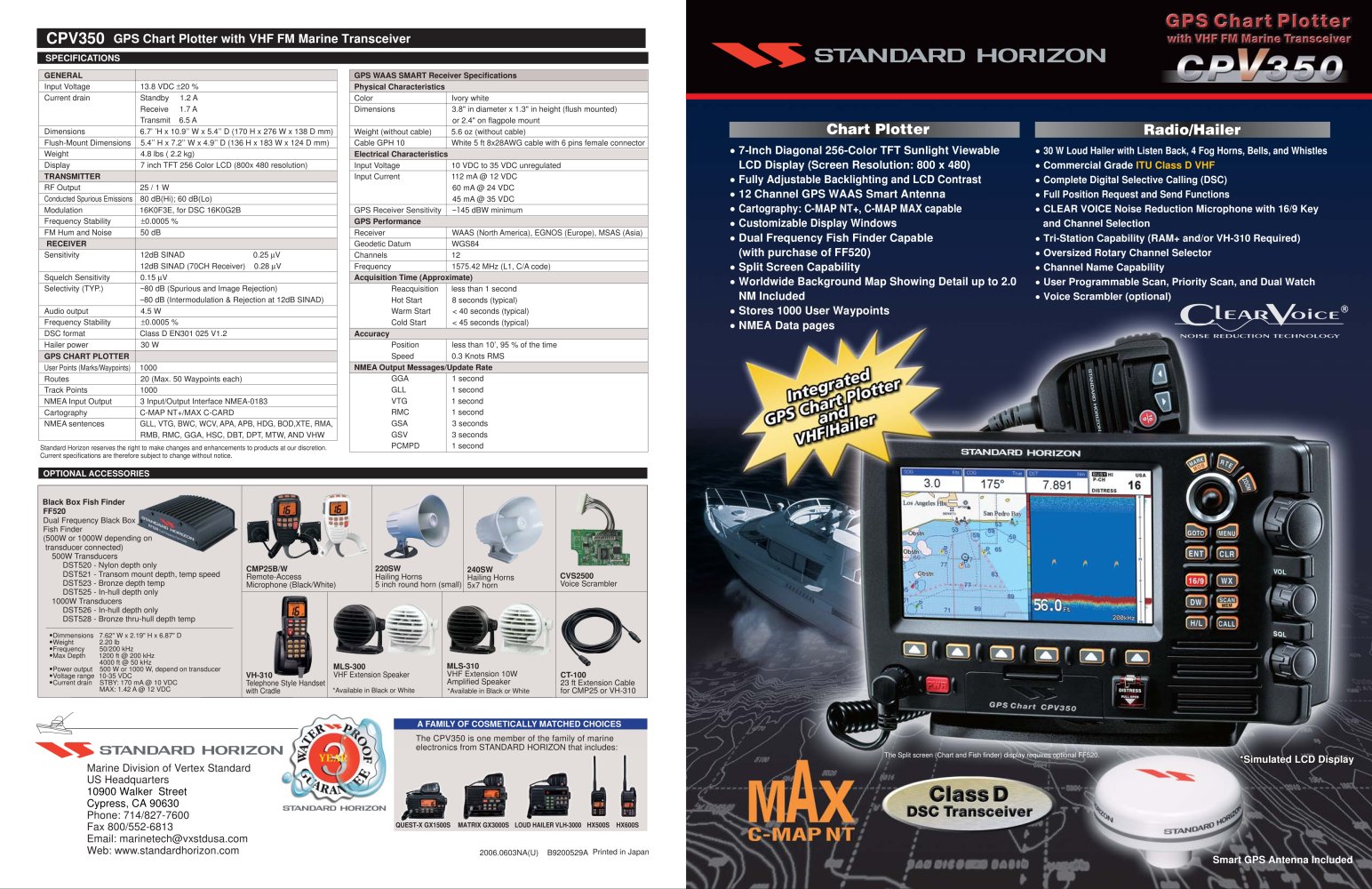

CPV350

GPS FOR BOAT Chart Plotter with VHF FM Marine Marine transceiver

SPECIFICATIONS

Input Voltage 10 VDC to 35 VDC unregulatedInput Current 112 mA @ 12 VDC 60 mA @ 24 VDC 45 mA @ 35 VDC Marine gps receiver Sensitivity Receiver –1 45 dBW minimum Electrical Characteristics GPS Performance GENERAL GPS WAAS SMART Receiver SpecificationsPhysical Characteristics Color Ivory white Dimensions 3.8" in diameter x 1.3" in height (flush mounted) or 2.4" on flagpole mountWeight (without cable) 5.6 oz (without cable) Cable GPH 10 White 5 ft 8x28AWG cable with 6 pins female connector TRANSMITTER Input Voltage 13.8 VDC ± 20 %Current drain Standby 1.2 A Receive 1.7 A Transmit 6.5 ADimensions 6.7’ ’H x 10.9’’ W x 5.4’’ D (170 H x 276 W x 138 D mm) Flush-Mount Dimensions 5.4’’ H x 7.2’’ W x 4.9’’ D (136 H x 183 W x 124 D mm) Weight 4.8 lbs ( 2.2 kg) Display 7 inch TFT 256 Color LCD (800x 480 resolution) RF Output 25 / 1 W

Chart Plotter Radio/Hailer

• 7-Inch Diagonal 256-Color TFT Sunlight Viewable LCD Display (Screen Resolution: 800 x 480)

• 30 W Loud Hailer with Listen Back, 4 Fog Marine horns, Bells, and Boat whistles • Commercial GradeITU Class D VHF

• Fully Adjustable Backlighting and LCD Contrast

• Complete Digital Selective Calling (DSC)

Conducted Spurious Emissions 80 dB(Hi); 60 dB(Lo)Modulation 16K0F3E, for DSC 16K0G2B Frequency Stability ± 0.0005 %FM Hum and Noise 50 dB Accuracy GGA 1 second GLL 1 second VTG 1 second RMC 1 second GSA 3 seconds GSV 3 seconds PCMPD 1 second

• 12 Channel GPS WAAS Smart Antenna for boats

• Full Position Request and Send Functions

Acquisition Time (Approximate) Position less than 10’, 95 % of the time Speed 0.3 Knots RMS NMEA Output Messages/Update Rate

• Cartography: C-MAP NT+, C-MAP MAX capable

• CLEAR VOICE Noise Reduction Microphone with 16/9 Key and Channel Selection

RECEIVER Reacquisition less than 1 second Hot Start 8 seconds (typical) Warm Start < 40 seconds (typical) Cold Start < 45 seconds (typical) Sensitivity 12dB SINAD 0.25 µ V 12dB SINAD (70CH receiver) 0.28 WAAS (North America), EGNOS (Europe), MSAS (Asia)

• Customizable Display Windows

µ VSquelch Sensitivity 0.15 Geodetic Datum WGS84 Channels 12 Frequency 1575.42 MHz (L1, C/A code)

• Dual Frequency Fish Finder Capable (with purchase of FF520)

• Tri-Station Capability (RAM+ and/or VH-310 Required)

µ VSelectivity (TYP.)

• Oversized Rotary Channel Selector

– 80 dB (Spurious and Image Rejection) – ± 80 dB (Intermodulation & Rejection at 12dB SINAD)Audio output 4.5 W Frequency Stability 0.0005 %DSC format Class D EN301 025 V1.2 Hailer power 30 W

• Split Screen Capability

• Channel Name Capability

GPS CHART PLOTTER

• • Stores 1000 User Waypoints Worldwide Background Map Showing Detail up to 2.0

• User Programmable Scan, Priority Scan, and Dual Watch

NM Included • NMEA Data pages

• Voice Scrambler (optional)

User Points (Marks/Waypoints) 1000Routes 20 (Max. 50 Waypoints each) Track Points 1000NMEA Input Output 3 Input/Output Interface NMEA-0183Cartography C-MAP NT+/MAX C-CARD NMEA sentences GLL, VTG, BWC, WCV, APA, APB, HDG, BOD,XTE, RMA, RMB, RMC, GGA, HSC, DBT, DPT, MTW, AND VHW
Standard Horizon reserves the right to make changes and enhancements to products at our discretion. Current specifications are therefore subject to change without notice.

OPTIONAL ACCESSORIES

Black Box Fish FinderCMP25B/W FF520 Dual Frequency Black Box Fish Finder(500W or 1000W depending on transducer connected) 500W Transducers DST520 - Nylon depth only DST521 - Transom mount depth, temp speed DST523 - Bronze depth temp DST525 - In-hull depth only 1000W Transducers DST526 - In-hull depth only DST528 - Bronze thru-hull depth temp CVS2500 Voice Scrambler 220SW Remote-Access Microphone (Black/White) Hailing Horns 5 inch round horn (small) 240SW Hailing Horns 5x7 horn MLS-300
• Dimmensions 7.62" W x 2.19" H x 6.87" D • Weight 2.20 lb • Frequency 50/200 kHz CT-100
• • Max Depth 1200 ft @ 200 kHz 4000 ft @ 50 kHz Power output 500 W or 1000 W, depend on transducer 23 ft Extension Cable for CMP25 or VH-310
• Voltage range 10-35 VDC • Current drain STBY: 170 mA @ 10 VDC MAX: 1.42 A @ 12 VDC MLS-310 VH-310 VHF Extension Marine speaker VHF Extension 10W Amplified Speaker Telephone Style Handset with Cradle
*Available in Black or White*Available in Black or White

AFAMILY OF COSMETICALLY MATCHED CHOICES The CPV350 is one member of the family of marine electronicsfrom STANDARD HORIZON that includes:

The Split screen (Chart and Fish finder) display requires optional FF520.

*Simulated LCD Display *Simulated LCD Display

Marine Division of Vertex Standard US Headquarters 10900 Walker Street Cypress, CA 90630 Phone: 714/827-7600 Fax 800/552-6813 Email: marinetech@vxstdusa.com Web: www.standardhorizon.com

QUEST-X GX1500SMATRIX GX3000S LOUD HAILER VLH-3000 HX500S HX600S 2006.0603NA(U) B9200529APrinted in Japan

Smart GPS Antenna Included
