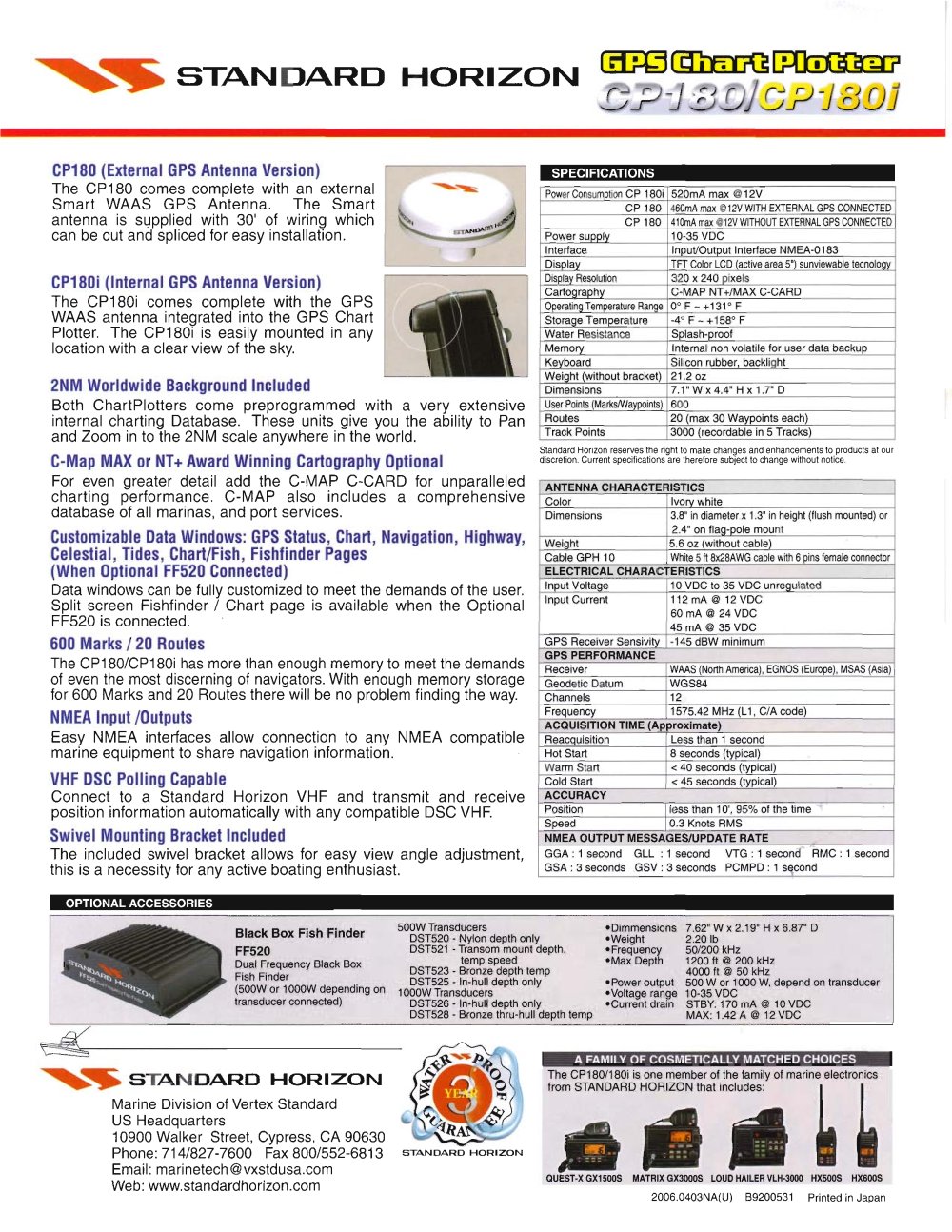

STANDARD HORIZON
SPECIFICATIONS
Power Corstmpjion CP 180i
520mA max @12V
CP 180
460mA max ®12V WITH EXTERNAL GPS FOR BOATS CONNECTED
CP 180
410mA max g 12V WITHOUT EXTERNAL GPS CONNECTED
Power supply
10-35 VDC
Interface
Input/Output Interface NMEA-0183
Display
TFT Color LCD (active area 5") sunviewable tecnology
Display Resolution
320 x 240_pixe!s
Cartography
C-MAP NT+/MAX C-CARD
Operating Temperature Range
0° F ~ +131° F
Storage Temperature
-4"F- + 158°F
Water Resistance
Splash-proof
Memory
Internal non volatile for user data backup
Keyboard
Silicon rubber, backlight
Weight (without bracket)
21.2 oz
Dimensions
7.1"Wx4.4" Hx 1.7" D
User Points (Marks/Waypoints)
600
Routes
20 (max 30 Waypoints each)
Track Points
3000 (recordable In 5 Tracks)
Standard Horizon reserves the right to make changes and enhancements to products at our discretion. Current specifications are therefore subject to change without notice.
ANTENNA FOR BOATS CHARACTERISTICS
Color
Ivory white
Dimensions
3.8" in diameter x 1.3" in height (flush mounted) or 2.4" on flag-pole mount
Weight
5.6 oz (without cable)
Cable GPH 10
White 5 ft 8x28AWG cable with 6 pins female connector
ELECTRICAL CHARACTERISTICS
Input Voltage
10 VDC to 35 VDC unregulated
Input Current
112 mA @ 12 VDC 60 mA @ 24 VDC 45 mA @ 35 VDC
-145 dBW minimum
GPS PERFORMANCE
Receiver
WAAS (North America), EGNOS (Europe), MSAS (Asia)
Geodetic Datum
WGS84
Channels
C\J
Frequency
1575.42 MHz (L1, C/A code)
ACQUISITION TIME (Approximate)
Reacquisition
Less than 1 second
Hot Start
8 seconds (typical)
Warm Start
< 40 seconds (typical)
Cold Start
< 45 seconds (typical)
ACCURACY
Position
less than 10'. 95% of the time
Speed
0.3 Knots RMS
NMEA OUTPUT MESSAGES/UPDATE RATE
GGA : 1 second GLL : 1 second VTG : 1 second RMC : 1 second GSA : 3 seconds GSV : 3 seconds PCMPD : 1 second
CP180 (External GPS Antenna Version)
The CP180 comes complete with an external Smart WAAS GPS Antenna. The Smart antenna is supplied with 30' of wiring which can be cut and spliced for easy installation.
CPISOi (Internal GPS Antenna Version)
The CP180J comes complete with the GPS WAAS antenna integrated into the GPS Chart Plotter. The CP180i is easily mounted in any location with a clear view of the sky.
2NM Worldwide Background Included
Both ChartPlotters come preprogrammed with a very extensive Internal charting Database. These units give you the ability to Pan and Zoom in to the 2NM scale anywhere in the world.
C-Map MAX or NT+ Award Winning Cartography Optional
For even greater detail add the C-MAP C-CARD for unparalleled charting performance. C-MAP also includes a comprehensive database of all marinas, and port services.
Customizable Data Windows: GPS Status, Chart, Navigation, Highway, Celestial, Tides, Chart/Fish, Fish finder Pages (When Optional FF520 Connected)
Data windows can be fully customized to meet the demands of the user. Split screen Fishfinder / Chart page is available when the Optional FF520 is connected.
600 Marks /20 Routes
The CP180/CP180i has more than enough memory to meet the demands of even the most discerning of navigators. With enough memory storage for 600 Marks and 20 Routes there will be no problem finding the way.
NMEA Input /Outputs
Easy NMEA interfaces allow connection to any NMEA compatible marine marine equipment to share navigation information.
EMPFÄNGER DSC Polling Capable
Connect to a Standard Horizon VHF and transmit and receive position information automatically with any compatible DSC VHF.
Swivel Mounting Bracket Included
The included swivel bracket allows for easy view angle adjustment, this is a necessity for any active boating enthusiast.
OPTIONAL ACCESSORIES
500W Transducers •Dimmensions
DST520 - Nylon depth only 'Weight
DST521 - Transom mount depth, 'Frequency
temp speed 'Max Depth DST523 - Bronze depth temp
DST525 - In-hull depth only 'Power output
1000W Transducers 'Voltage range
DST526 - In-hull depth only 'Current drain DST528 - Bronze thru-hull depth temp
7.62" Wx 2.19" Hx 6.87" D
2.20 lb
50/200 kHz
1200 ft @ 200 kHz
4000 ft @ 50 kHz
500 W or 1000 W, depend on transducer 10-35 VDC
STBY: 170 mA @ 10 VDC MAX: 1.42 A @ 12 VDC
Black Box Fish Finder FF520
Dual Frequency Black Box Fish Finder
(500W or 1000W depending on transducer connected)
A FAMILY OF COSMETICALLY MATCHED CHOICES
The CP180/180i is one member of the family of nautical electronics from STANDARD HORIZON that includes:
STANDARD HORIZON
Marine Division of Vertex Standard US Headquarters
10900 Walker Street, Cypress, CA 90630 Phone: 714/827-7600 Fax 800/552-6813 Email: marinetech@vxstdusa.com Web: www.standardhorizon.com
il
STANDARD HORIZON
QUEST-X GX1500S MATRIX GX3000S LOUD HAILER VLH-3000 HX500S HX600S
2006.04O3NA(U) B9200531 Printed in Japan
