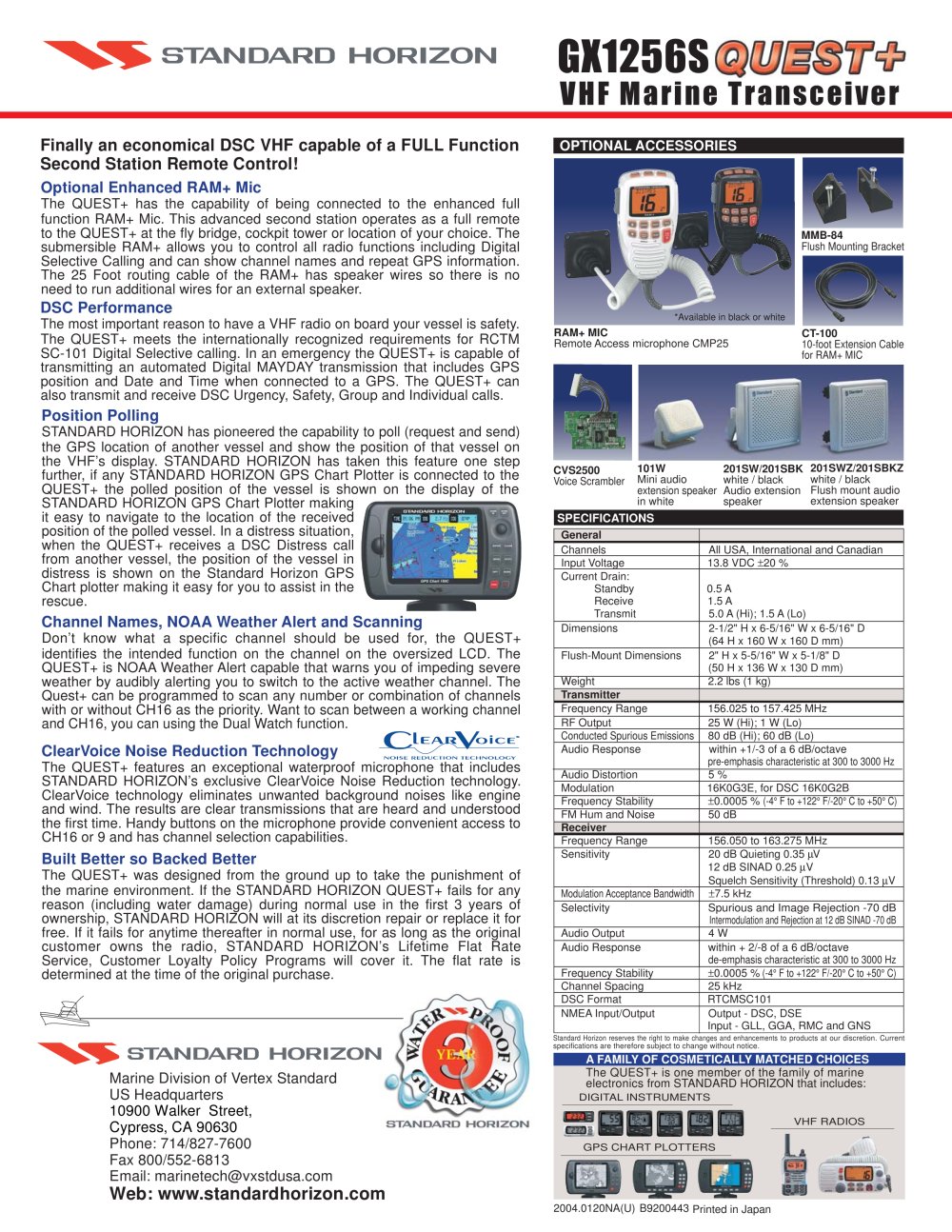

Standard horizon - 5114, 59747, 19116, 57840, 4745, 53516
/ 22
See other catalogues for Standard horizon
Text version of the page
GX1256S@№@№
VHF Marine Transceiver
Finally an economical DSC VHF capable of a FULL Function Second Station Remote Control!
Optional Enhanced RAM+ Mic
The QUEST+ has the capability of being connected to the enhanced full function RAM+ Mic. This advanced second station operates as a full remote to the QUEST+ at the fly bridge, cockpit tower or location of your choice. The submersible RAM+ allows you to control all radio functions including Digital Selective Calling and can show channel names and repeat GPS FOR BOAT information. The 25 Foot routing cable of the RAM+ has marine speaker wires so there is no need to run additional wires for an external speaker.
DSC Performance
The most important reason to have a VHF radio on board your vessel is safety. The QUEST+ meets the internationally recognized requirements for RCTM SC-101 Digital Selective calling. In an emergency the QUEST+ is capable of transmitting an automated Digital MAYDAY transmission that includes GPS position and Date and Time when connected to a GPS. The QUEST+ can also transmit and receive DSC Urgency, Safety, Group and Individual calls.
Position Polling
STANDARD HORIZON has pioneered the capability to poll (request and send) the GPS location of another vessel and show the position of that vessel on the VHF's display. STANDARD HORIZON has taken this feature one step further, if any STANDARD HORIZON GPS Chart Plotter is connected to the QUEST+ the polled position of the vessel is shown on the display of the STANDARD HORIZON GPS Chart Plotter making it easy to navigate to the location of the received position of the polled vessel. In a distress situation, when the QUEST+ receives a DSC Distress call from another vessel, the position of the vessel in distress is shown on the Standard Horizon GPS Chart plotter making it easy for you to assist in the rescue.
Channel Names, NOAA Weather Alert and Scanning
Don't know what a specific channel should be used for, the QUEST+ identifies the intended function on the channel on the oversized LCD. The QUEST+ is NOAA Weather Alert capable that warns you of impeding severe weather by audibly alerting you to switch to the active weather channel. The Quest+ can be programmed to scan any number or combination of channels with or without CH16 as the priority. Want to scan between a working channel and CH16, you can using the Dual Watch function.
ClearVoice Noise Reduction Technology l^tB^ZZ^^
The QUEST+ features an exceptional waterproof microphone that includes STANDARD HORIZON's exclusive ClearVoice Noise Reduction technology. ClearVoice technology eliminates unwanted background noises like engine for boat and wind. The results are clear transmissions that are heard and understood the first time. Handy buttons on the microphone provide convenient access to CH16 or 9 and has channel selection capabilities.
Built Better so Backed Better
The QUEST+ was designed from the ground up to take the punishment of the marine environment. If the STANDARD HORIZON QUEST+ fails for any reason (including water damage) during normal use in the first 3 years of ownership, STANDARD HORIZON will at its discretion repair or replace it for free. If it fails for anytime thereafter in normal use, for as long as the original customer owns the radio, STANDARD HORIZON's Lifetime Flat Rate Service, Customer Loyalty Policy Programs will cover it. The flat rate is determined at the time of the original purchase.
OPTIONAL ACCESSORIES
RAM+ MIC
Remote Access microphone CMP25
CT-100
10-foot Extension Cable for RAM+ MIC
CVS2500 101W 201SW/201SBK 201SWZ/201SBKZ
Voice Scrambler Mini audio white / black white / black
extension speaker Audio extension Flush mount audio
in white speaker extension speaker
SPECIFICATIONS
General
Channels
All USA, International and Canadian
Input Voltage
13.8 VDC ±20 %
Current Drain:
Standby
0.5 A
Receive
1.5 A
Transmit
5.0 A (Hi); 1.5 A (Lo)
Dimensions
2-1/2" H x 6-5/16" W x 6-5/16" D
(64 H x 160 W x 160 D mm)
Flush-Mount Dimensions
2" H x 5-5/16" W x 5-1/8" D
(50 H x 136 W x 130 D mm)
Weight
2.2 lbs (1 kg)
Transmitter
Frequency Range
156.025 to 157.425 MHz
RF Output
25 W (Hi); 1 W (Lo)
Conducted Spurious Emissions
80 dB (Hi); 60 dB (Lo)
Audio Response
within +1/-3 of a 6 dB/octave
pre-emphasis characteristic at 300 to 3000 Hz
Audio Distortion
5 %
Modulation
16K0G3E, for DSC 16K0G2B
Frequency Stability
±0.0005 % (-4° F to +122° F/-20° C to +50° C)
FM Hum and Noise
50 dB
Receiver
Frequency Range
156.050 to 163.275 MHz
Sensitivity
20 dB Quieting 0.35 uV
12 dB SINAD 0.25 p.V
Squelch Sensitivity (Threshold) 0.13 uV
Modulation Acceptance Bandwidth
±7.5 kHz
Selectivity
Spurious and Image Rejection -70 dB
Intermodulation and Rejection at 12 dB SINAD -70 dB
Audio Output
4 W
Audio Response
within + 2/-8 of a 6 dB/octave
de-emphasis characteristic at 300 to 3000 Hz
Frequency Stability
±0.0005 % (-4° F to +122° F/-20° C to +50° C)
Channel Spacing
25 kHz
DSC Format
RTCMSC101
NMEA Input/Output
Output - DSC, DSE
Input - GLL, GGA, RMC and GNS
Standard Horizon reserves the right to make changes and enhancements to products at our discretion. Current specifications are therefore subject to change without notice.
STANDARD HORIZON
Marine Division of Vertex Standard US Headquarters 10900 Walker Street, Cypress, CA 90630 Phone: 714/827-7600 Fax 800/552-6813 Email: marinetech@vxstdusa.com
Web: www.standardhorizon.com
^
A FAMIL
>f cosmetically matched choices
The QUEST+ is one member of the family of marine electronics from STANDARD HORIZON that includes: DIGITAL INSTRUMENTS
GPS CHART PLOTTERS
2004.0120NA(U) B9200443 Printed in Japan
