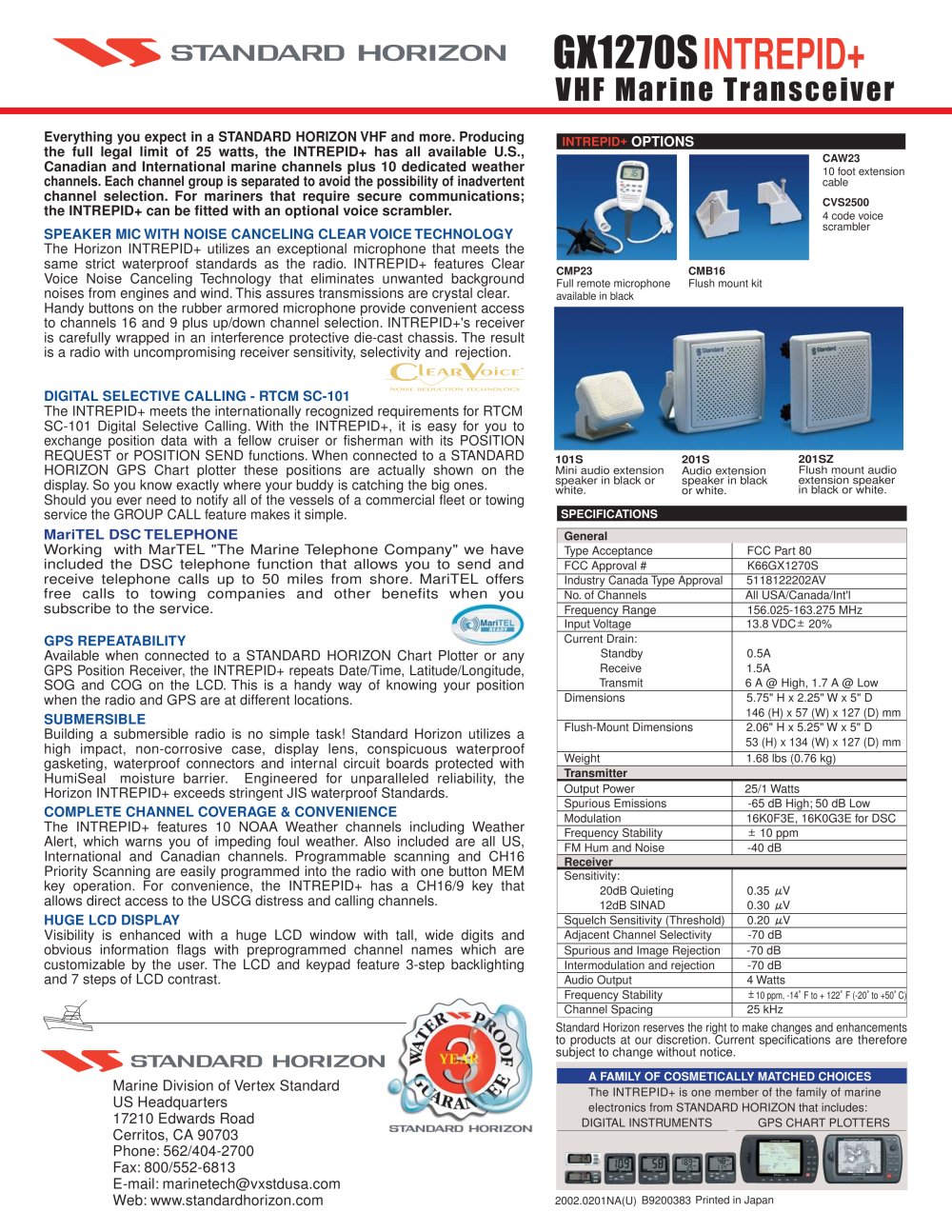

GX1270SINTREPID+ BOAT VHF Marine Transceiver
Everything you expect in a STANDARD HORIZON VHF and more. Producing the full legal limit of 25 watts, the INTREPID+ has all available U.S., Canadian and International marine channels plus 10 dedicated weather channels. Each channel group is separated to avoid the possibility of inadvertent channel selection. For mariners that require secure communications; the INTREPID+ can be fitted with an optional voice scrambler.
MARINE SPEAKER MIC WITH NOISE CANCELING CLEAR VOICE TECHNOLOGY
The Horizon INTREPID+ utilizes an exceptional microphone that meets the same strict waterproof standards as the radio. INTREPID+ features Clear Voice Noise Canceling Technology that eliminates unwanted background noises from engines and wind. This assures transmissions are crystal clear. Handy buttons on the rubber armored microphone provide convenient access to channels 16 and 9 plus up/down channel selection. INTREPID+'s receiver is carefully wrapped in an interference protective die-cast chassis. The result is a radio with uncompromising receiver sensitivity, selectivity and rejection.
{ M F/vrt^^M:^ici *
DIGITAL SELECTIVE CALLING - RTCM SC-101
The INTREPID+ meets the internationally recognized requirements for RTCM SC-101 Digital Selective Calling. With the INTREPID+, it is easy for you to exchange position data with a fellow cruiser or fisherman with its POSITION REQUEST or POSITION SEND functions. When connected to a STANDARD HORIZON GPS FOR BOAT Chart plotter these positions are actually shown on the display. So you know exactly where your buddy is catching the big ones. Should you ever need to notify all of the vessels of a commercial fleet or towing service the GROUP CALL feature makes it simple.
MariTEL DSC TELEPHONE
Working with MarTEL "The Marine Telephone Company" we have included the DSC telephone function that allows you to send and receive telephone calls up to 50 miles from shore. MariTEL offers free calls to towing companies and other benefits when you subscribe to the service.
GPS REPEATABILITY
Available when connected to a STANDARD HORIZON Chart Plotter or any GPS Position Receiver, the INTREPID+ repeats Date/Time, Latitude/Longitude, SOG and COG on the LCD. This is a handy way of knowing your position when the radio and GPS are at different locations.
SUBMERSIBLE
Building a submersible radio is no simple task! Standard Horizon utilizes a high impact, non-corrosive case, display lens, conspicuous waterproof gasketing, waterproof connectors and internal circuit marine boards protected with HumiSeal moisture barrier. Engineered for unparalleled reliability, the Horizon INTREPID+ exceeds stringent JIS waterproof Standards.
COMPLETE CHANNEL COVERAGE & CONVENIENCE
The INTREPID+ features 10 NOAA Weather channels including Weather Alert, which warns you of impeding foul weather. Also included are all US, International and Canadian channels. Programmable scanning and CH16 Priority Scanning are easily programmed into the radio with one button MEM key operation. For convenience, the INTREPID+ has a CH16/9 key that allows direct access to the USCG distress and calling channels.
HUGE LCD DISPLAY
Visibility is enhanced with a huge LCD window with tall, wide digits and obvious information flags for boats with preprogrammed channel names which are customizable by the user. The LCD and keypad feature 3-step backlighting and 7 steps of LCD contrast.
INTREPID+ OPTIONS
CAW23
10 foot extension cable
CVS2500
4 code voice scrambler
CMP23 CMB16
Full remote microphone Flush mount kit
available In black
201SZ
Flush mount audio extension speaker in black or white.
101S 201S
Mini audio extension Audio extension
speaker in black or speaker in black
white. or white.
SPECIFICATIONS
General
Type Acceptance
FCC Part 80
FCC Approval #
K66GX1270S
Industry Canada Type Approval
5118122202AV
No. of Channels
All USA/Canada/Int'l
Frequency Range
156.025-163.275 MHz
Input Voltage
13.8 VDC± 20%
Current Drain:
Standby
0.5A
Receive
1.5A
Transmit
6 A @ High, 1.7 A @ Low
Dimensions
5.75" H x 2.25" W x 5" D
146 (H) x 57 (W) x 127 (D) mm
Flush-Mount Dimensions
2.06" H x 5.25" W x 5" D
53 (H) x 134 (W) x 127 (D) mm
Weight
1.68 lbs (0.76 kg)
Transmitter
Output Power
25/1 Watts
Spurious Emissions
-65 dB High; 50 dB Low
Modulation
16K0F3E, 16K0G3E for DSC
Frequency Stability
± 10 ppm
FM Hum and Noise
-40 dB
Receiver
Sensitivity:
20dB Quieting
0.35 V
12dB SINAD
0.30 V
Squelch Sensitivity (Threshold)
0.20 V
Adjacent Channel Selectivity
-70 dB
Spurious and Image Rejection
-70 dB
Intermodulation and rejection
-70 dB
Audio Output
4 Watts
Frequency Stability
±10 ppm, -14' F to + 122' F (-20' to +50' C)
Channel Spacing
25 kHz
Standard Horizon reserves the right to make changes and enhancements to products at our discretion. Current specifications are therefore subject to change without notice.
»TANDARD HORIZON
A FAMILY OF COSMETICALLY MATCHED CHOICES
Marine Division of Vertex Standard
US Headquarters
17210 Edwards Road
Cerritos, CA 90703
Phone: 562/404-2700
Fax: 800/552-6813
E-mail: marinetech@vxstdusa.com
Web: www.standardhorizon.com
The INTREPID+ is one member of the family of nautical electronics from STANDARD HORIZON that includes: DIGITAL INSTRUMENTS GPS CHART PLOTTERS
2002.0201NA(U) B9200383 Printed in Japan
