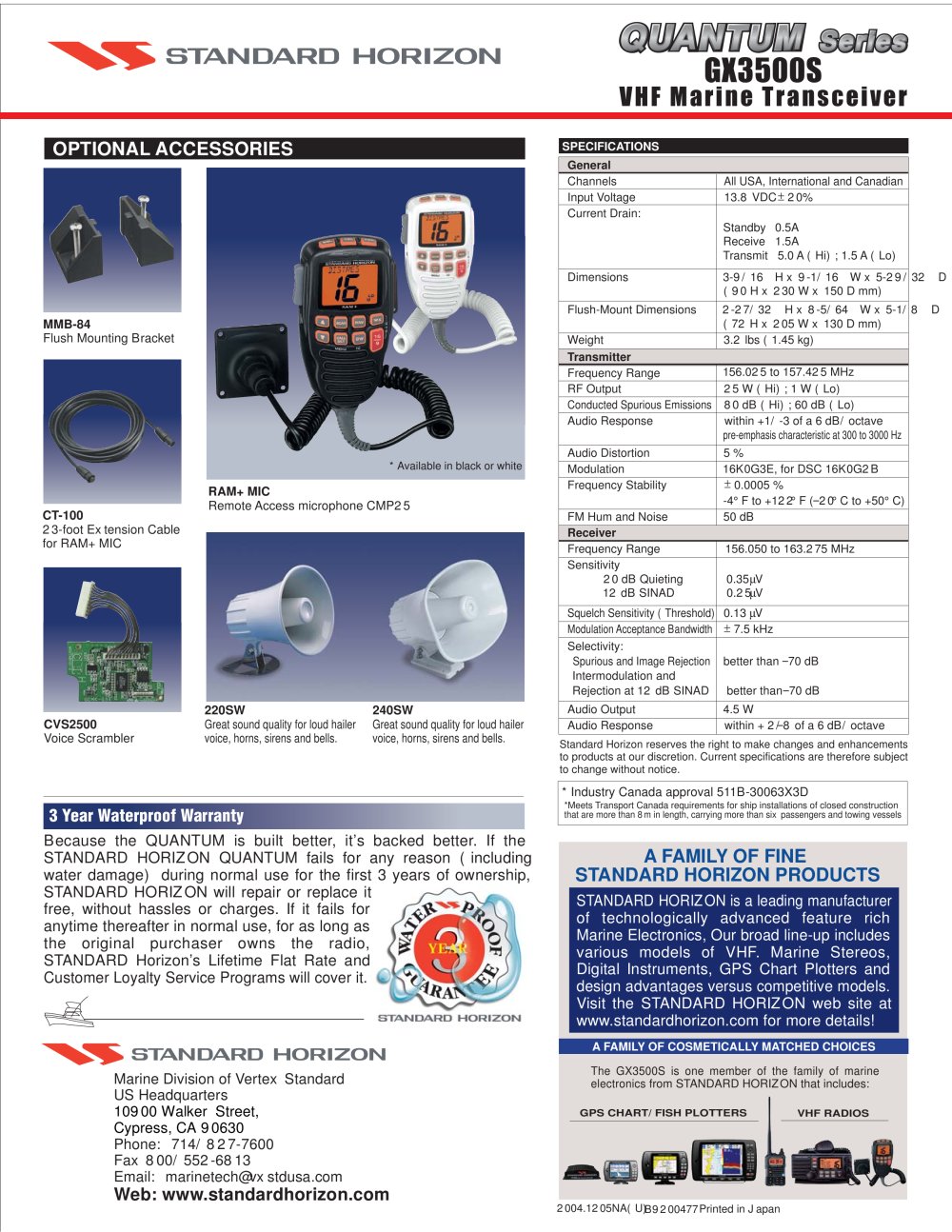

| | | GX3500S VHF Marine Transceiver | | |
| | | |
| | | | | | | | | | SPECIFICATIONS | | | | General | | | | Channels | All USA, International and Canadian | | | | Input Voltage | 13.8 VDC ± 2 0% | | | | Current Drain: | | | | | | Standby 0.5A | | | | | Receive 1.5A | | | | | Transmit 5.0 A ( Hi) ; 1.5 A ( Lo) | | | | Dimensions | 3-9/ 16 H x 9-1/ 16 W x 5-29 | | | | | (90 H x 230 W x 150 D mm) | | | | Flush-Mount Dimensions | 2 -2 7/ 32 H x 8 -5/ 64 W x 5-1 | | | | | (72 H x 205 W x 130 D mm) | | | | Weight | 3.2 lbs ( 1.45 kg) | | | | Transmitter | | | | | Frequency Range | 156.025 to 157.425 MHz | | | | RF Output | 2 5 W ( Hi) ; 1 W ( Lo) | | | | Conducted Spurious Emissions | 80 dB ( Hi) ; 60 dB ( Lo) | | | | Audio Response | within +1/ -3 of a 6 dB/ octave | | | | | pre-emphasis characteristic at 300 to 3000 Hz | | | | Audio Distortion | 5 % | | | | Modulation | 16K0G3E, for DSC 16K0G2B | | | | Frequency Stability | ± 0.0005 % | | | | | -4° F to +12 2° F (-2 0° C to +50° C) | | | | FM Hum and Noise | 50 dB | | | | | | | | | Frequency Range | 156.050 to 163.2 75 MHz | | | | Sensitivity | | | | | 2 0 dB Quieting | 0.35uV | | | | 12 dB SINAD | 0.2 5uV | | | | Squelch Sensitivity ( Threshold) | 0.13 uV | | | | Modulation Acceptance Bandwidth | ± 7.5 kHz | | | | Selectivity: | | | | | Spurious and Image Rejection | better than -70 dB | | | | Intermodulation and | | | | | Rejection at 12 dB SINAD | better than-70 dB | | | | Audio Output | 4.5 W | | | | Audio Response | within + 2 /-8 of a 6 dB/ octave | | | | | | | | | |
| | | :cessories | | |
| | | |
| | | MMB-84 Flush Mounting Bracket | | |
| | | |
| | | RAM+ MIC Remote Access microphone CMP25 | | |
| | | CT-100 23-foot Extension Cable for RAM+ MIC | | |
| | | |
| | | |
| | | 220SW 240SW Great sound quality for loud hailer Great sound quality for loud hailer voice, marine horns, sirens and bells. voice, horns, sirens and bells. | | |
| | | CVS2500 Voice Scrambler | | |
| | | |
| | | Standard Horizon reserves the right to make changes and enhancements to products at our discretion. Current specifications are therefore subject to change without notice. | | |
| | | |
| | | |
| | | |
| | | * Industry Canada approval 511B-30063X3D *Meets Transport Canada requirements for vessel installations of closed construction that are more than 8 m in length, carrying more than six passengers and towing vessels | | |
| | | 3 Year Waterproof Warranty | | |
| | | |
| | | |
| | | Because the QUANTUM is built better, it's backed better. If the STANDARD HORIZON QUANTUM fails for any reason ( including water damage) during normal use for the first 3 years of ownership, STANDARD HORIZON will repair or replace it free, without hassles or charges. If it fails for anytime thereafter in normal use, for as long as the original purchaser owns the radio, STANDARD Horizon's Lifetime Flat Rate and f ^ Customer Loyalty Service Programs will cover it. "V , - STANDARD HORIZON | | |
| | | a family of fine standard horizon products | | |
| | | |
| | | STANDARD HORIZON is a leading manufacturer of technologically advanced feature rich Marine electronics, Our broad line-up includes various models of VHF. Marine Stereos, Digital Instruments, GPS FOR BOATS Chart Plotters and design advantages versus competitive models. Visit the STANDARD HORIZON web site at www.standardhorizon.com for more details! | | |
| | | |
| | | |
| | | A FAMILY OF COSMETICALLY MATCHED CHOICES | | |
| | | ^ STANDARD HORIZON Marine Division of Vertex Standard US Headquarters 109 00 Walker Street, Cypress, CA 9 0630 Phone: 714/ 82 7-7600 Fax 8 00/ 552-6813 Email: marinetech@/x stdusa.com Web: www.standardhorizon.com | | |
| | | |
| | | |
| | | 2 004.12 05NA( U)B92 00477 Printed in J apan | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
