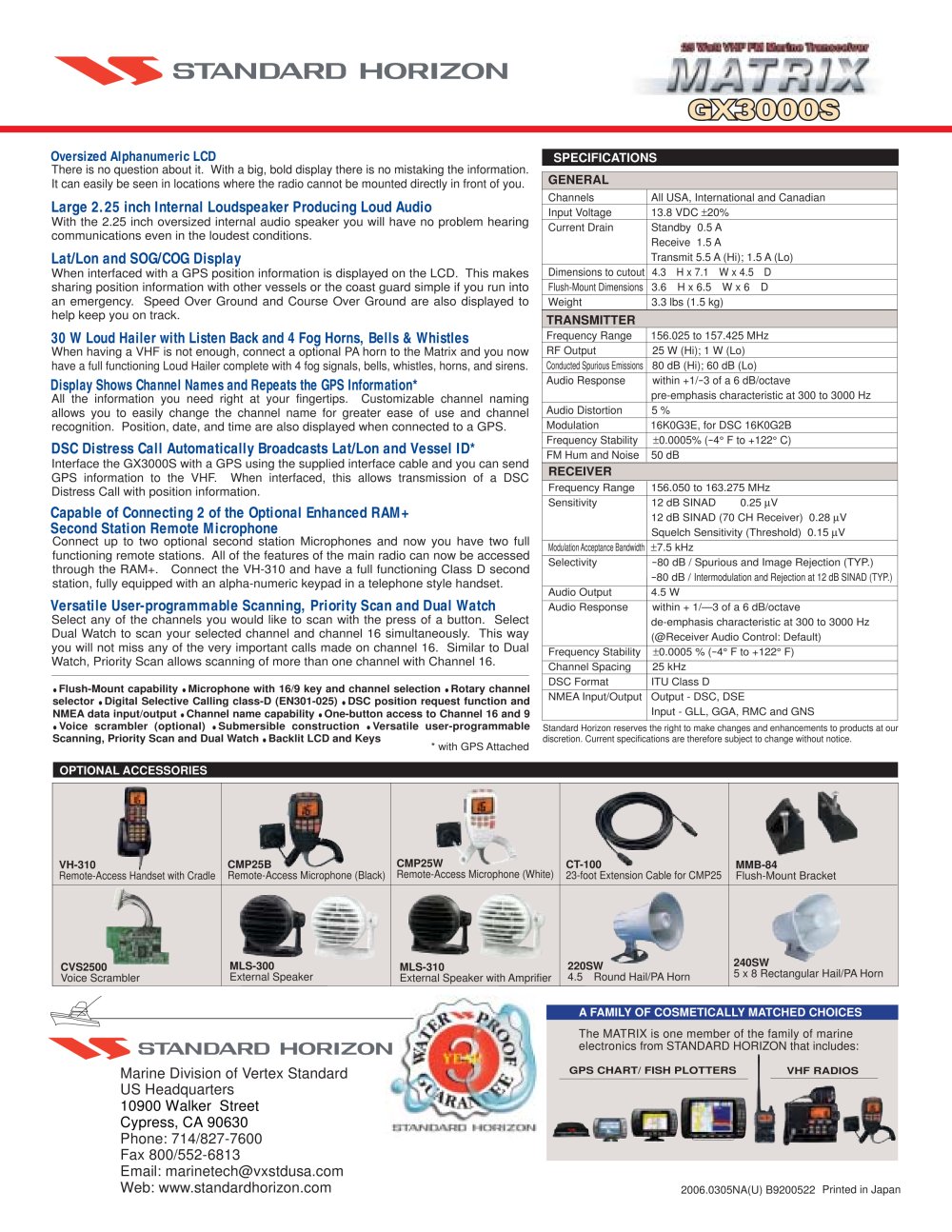

STANDARD HORIZON
Oversized Alphanumeric LCD
There is no question about it. With a big, bold display there is no mistaking the information. It can easily be seen in locations where the radio cannot be mounted directly in front of you.
Large 2.25 inch Internal Loudspeaker Producing Loud Audio
With the 2.25 inch oversized internal audio boat speaker you will have no problem hearing communications even in the loudest conditions.
Lat/Lon and SOG/COG Display
When interfaced with a GPS FOR BOAT position information is displayed on the LCD. This makes sharing position information with other vessels or the coast guard simple if you run into an emergency. Speed Over Ground and Course Over Ground are also displayed to help keep you on track.
30 W Loud Hailer with Listen Back and 4 Fog Boat horns, Bells & Boat whistles
When having a VHF is not enough, connect a optional PA horn to the Matrix and you now have a full functioning Loud Hailer complete with 4 fog signals, bells, whistles, horns, and sirens.
Display Shows Channel Names and Repeats the GPS Information*
All the information you need right at your fingertips. Customizable channel naming allows you to easily change the channel name for greater ease of use and channel
recognition. Position, date, and time are also displayed when connected to a GPS.
DSC Distress Call Automatically Broadcasts Lat/Lon and Vessel ID*
Interface the GX3000S with a GPS using the supplied interface cable and you can send GPS information to the VHF. When interfaced, this allows transmission of a DSC Distress Call with position information.
Capable of Connecting 2 of the Optional Enhanced RAM + Second Station Remote Microphone
Connect up to two optional second station Microphones and now you have two full functioning remote stations. All of the features of the main radio can now be accessed through the RAM+. Connect the VH-310 and have a full functioning Class D second station, fully equipped with an alpha-numeric keypad in a telephone style handset.
Versatile User-programmable Scanning, Priority Scan and Dual Watch
Select any of the channels you would like to scan with the press of a button. Select Dual Watch to scan your selected channel and channel 16 simultaneously. This way you will not miss any of the very important calls made on channel 16. Similar to Dual Watch, Priority Scan allows scanning of more than one channel with Channel 16.
• Flush-Mount capability • Microphone with 16/9 key and channel selection • Rotary channel selector ^ Digital Selective Calling class-D (EN301-025) ^ DSC position request function and NMEA data input/output ^ Channel name capability ^ One-button access to Channel 16 and 9 ^ Voice scrambler (optional) ^ Submersible construction ^ Versatile user-programmable
Scanning, Priority Scan and Dual Watch ^ Backlit LCD and Keys
M ' ' * with GPS Attached
SPECIFICATIONS
GENERAL
Channels
All USA, International and Canadian
Input Voltage
13.8 VDC ±20%
Current Drain
Standby 0.5 A
Receive 1.5 A
Transmit 5.5 A (Hi); 1.5 A (Lo)
Dimensions to cutout
4.3 H x 7.1 W x 4.5 D
Flush-Mount Dimensions
3.6 H x 6.5 W x 6 D
Weight
3.3 lbs (1.5 kg)
TRANSMITTER
Frequency Range
156.025 to 157.425 MHz
RF Output
25 W (Hi); 1 W (Lo)
Conducted Spurious Emissions
80 dB (Hi); 60 dB (Lo)
Audio Response
within +1/-3 of a 6 dB/octave
pre-emphasis characteristic at 300 to 3000 Hz
Audio Distortion
5 %
Modulation
16K0G3E, for DSC 16K0G2B
Frequency Stability
±0.0005% (-1° F to +122° C)
FM Hum and Noise
50 dB
RECEIVER
Frequency Range
156.050 to 163.275 MHz
Sensitivity
12 dB SINAD 0.25 |iV
12 dB SINAD (70 CH Receiver) 0.28 |iV
Squelch Sensitivity (Threshold) 0.15 |iV
Modulation Acceptance Bandwidth
± 7.5 kHz
Selectivity
-80 dB / Spurious and Image Rejection (TYP.)
-80 dB / Intermodulation and Rejection at 12 dB SINAD (TYP.)
Audio Output
4.5 W
Audio Response
within + 1/—3 of a 6 dB/octave
de-emphasis characteristic at 300 to 3000 Hz
(©Receiver Audio Control: Default)
Frequency Stability
±0.0005 % (-4° F to +122° F)
Channel Spacing
25 kHz
DSC Format
ITU Class D
NMEA Input/Output
Output - DSC, DSE
Input - GLL, GGA, RMC and GNS
Standard Horizon reserves the right to make changes and enhancements to products at our discretion. Current specifications are therefore subject to change without notice.
OPTIONAL ACCESSORIES
I
VH-310 r
Remote-Access Handset with Cradle
CMP25B W
Remote-Access Microphone (Black)
-wwt
m 1
CMP25W v
Remote-Access Microphone (White)
CT-100 ^
23-foot Extension Cable for CMP25
MMB-84
Flush-Mount Bracket
CVS2500 ^^^^
Voice Scrambler
ft*
MLS-300
External Speaker
§S :
MLS-310
External Speaker with Amprifier
220SW
4.5 Round Hail/PA Horn
240SW ^
5 x 8 Rectangular Hail/PA Horn
A FAMII Y OF COSMETICAII Y MATCHEn CHOICES
The MATRIX is one member of the family of marine electronics from STANDARD HORIZON that includes:
STANDARD HORIZON
GPS CHART/ FISH PLOTTERS
Marine Division of Vertex Standard
US Headquarters
10900 Walker Street
Cypress, CA 90630
Phone: 714/827-7600
Fax 800/552-6813
Email: marinetech@vxstdusa.com
Web: www.standardhorizon.com
2006.0305NA(U) B9200522 Printed in Japan
