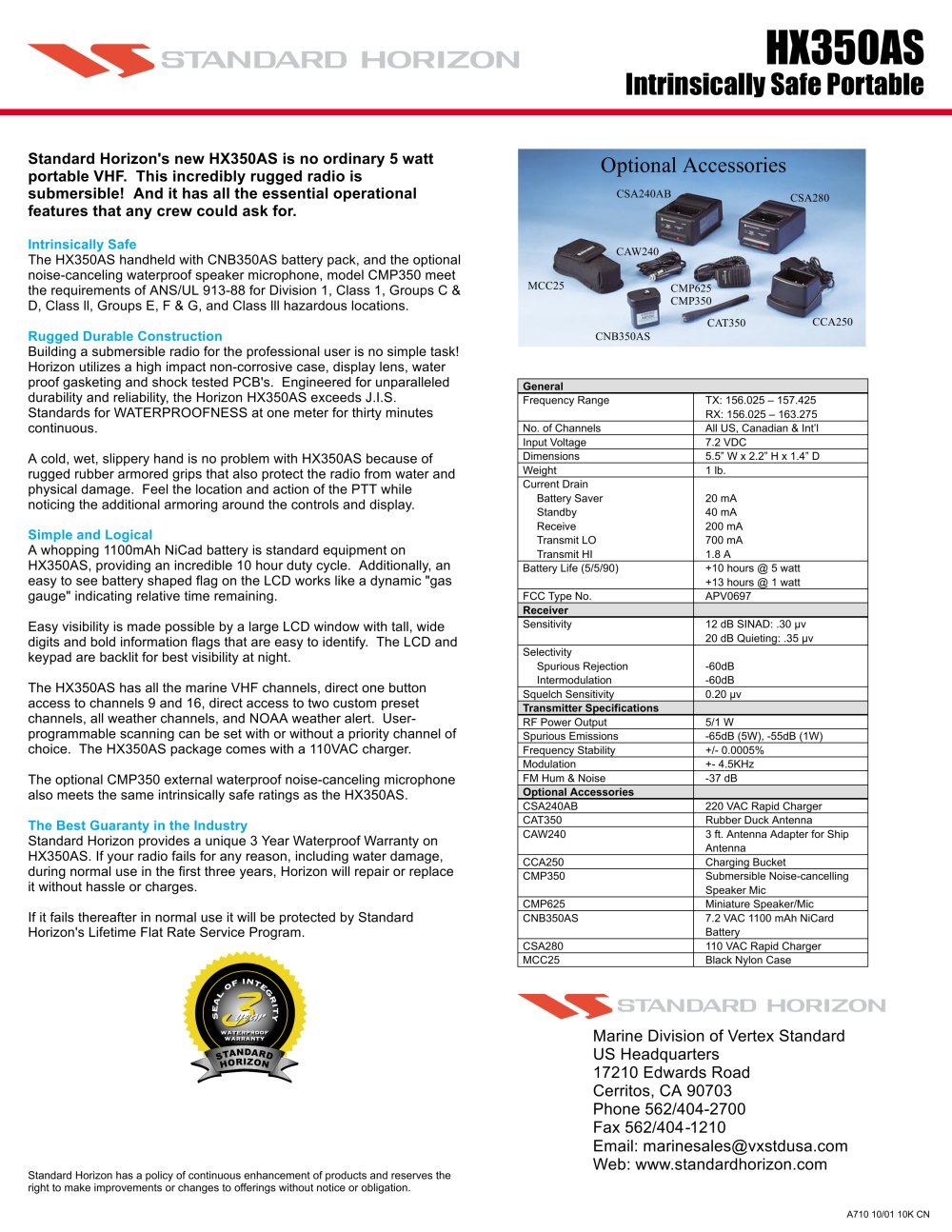

HX350AS
Intrinsically Safe Portable
Standard Horizon's new HX350AS is no ordinary 5 watt portable vhf. This incredibly rugged radio is submersible! And it has all the essential operational features that any crew could ask for.
Intrinsically Safe
The HX350AS handheld with CNB350AS battery pack, and the optional noise-canceling waterproof marine speaker microphone, model CMP350 meet the requirements of ANS/UL 913-88 for Division 1, Class 1, Groups C & D, Class ll, Groups E,F&G,and Class lll hazardous locations.
Rugged Durable Construction
Building a submersible radio for the professional user is no simple task! Horizon utilizes a high impact non-corrosive case, display lens, water proof gasketing and shock tested PCB's. Engineered for unparalleled durability and reliability, the Horizon HX350AS exceeds J.I.S. Standards for WATERPROOFNESS at one meter for thirty minutes continuous.
A cold, wet, slippery hand is no problem with HX350AS because of rugged rubber armored grips that also protect the radio from water and physical damage. Feel the location and action of the PTT while noticing the additional armoring around the controls and display.
Simple and Logical
A whopping 1100mAh NiCad battery is standard equipment on HX350AS, providing an incredible 10 hour duty cycle. Additionally, an easy to see battery shaped flag on the LCD works like a dynamic "gas gauge" indicating relative time remaining.
Easy visibility is made possible by a large LCD window with tall, wide digits and bold information flags that are easy to identify. The LCD and keypad are backlit for best visibility at night.
The HX350AS has all the marine VHF channels, direct one button access to channels 9 and 16, direct access to two custom preset channels, all weather channels, and NOAA weather alert. User-programmable scanning can be set with or without a priority channel of choice. The HX350AS package comes with a 110VAC boat charger.
The optional CMP350 external waterproof noise-canceling microphone also meets the same intrinsically safe ratings as the HX350AS.
The Best Guaranty in the Industry
Standard Horizon provides a unique 3 Year Waterproof Warranty on HX350AS. If your radio fails for any reason, including water damage, during normal use in the first three years, Horizon will repair or replace it without hassle or charges.
If it fails thereafter in normal use it will be protected by Standard Horizon's Lifetime Flat Rate Service Program.
Optional Accessories
CNB350AS
General
Frequency Range
TX: 156.025-157.425
RX: 156.025-163.275
No. of Channels
All US, Canadian & Int'l
Input Voltage
7.2 VDC
Dimensions
5.5" Wx 2.2" H x 1.4" D
Weight
1 lb.
Current Drain
Battery Saver
20 mA
Standby
40 mA
Receive
200 mA
Transmit LO
700 mA
Transmit HI
1.8 A
Battery Life (5/5/90)
+10 hours @ 5 watt
+13 hours @ 1 watt
FCC Type No.
APV0697
Receiver
Sensitivity
12 dB SINAD: .30 uv
20 dB Quieting: .35 uv
Selectivity
Spurious Rejection
-60dB
Intermodulation
-60dB
Squelch Sensitivity
0.20 uv
Transmitter Specifications
RF Power Output
5/1 W
Spurious Emissions
-65dB (5W), -55dB (1W)
Frequency Stability
+/- 0.0005%
Modulation
+-4.5KHz
FM Hum & Noise
-37 dB
Optional Accessories
CSA240AB
220 VAC Rapid Charger
CAT350
Rubber Duck Antenna
CAW240
3 ft. Antenna Adapter for Boat ship
Antenna
CCA250
Charging Bucket
CMP350
Submersible Noise-cancelling
Speaker Mic
CMP625
Miniature Speaker/Mic
CNB350AS
7.2 VAC 1100 mAh NiCard
Battery
CSA280
110 VAC Rapid Charger
MCC25
Black Nylon Case
Marine Division of Vertex Standard
US Headquarters
17210 Edwards Road
Cerritos, CA 90703
Phone 562/404-2700
Fax 562/404-1210
Email: marinesales@vxstdusa.com
Web: www.standardhorizon.com
Standard Horizon has a policy of continuous enhancement of products and reserves the right to make improvements or changes to offerings without notice or obligation.
A710 10/01 10KCN
