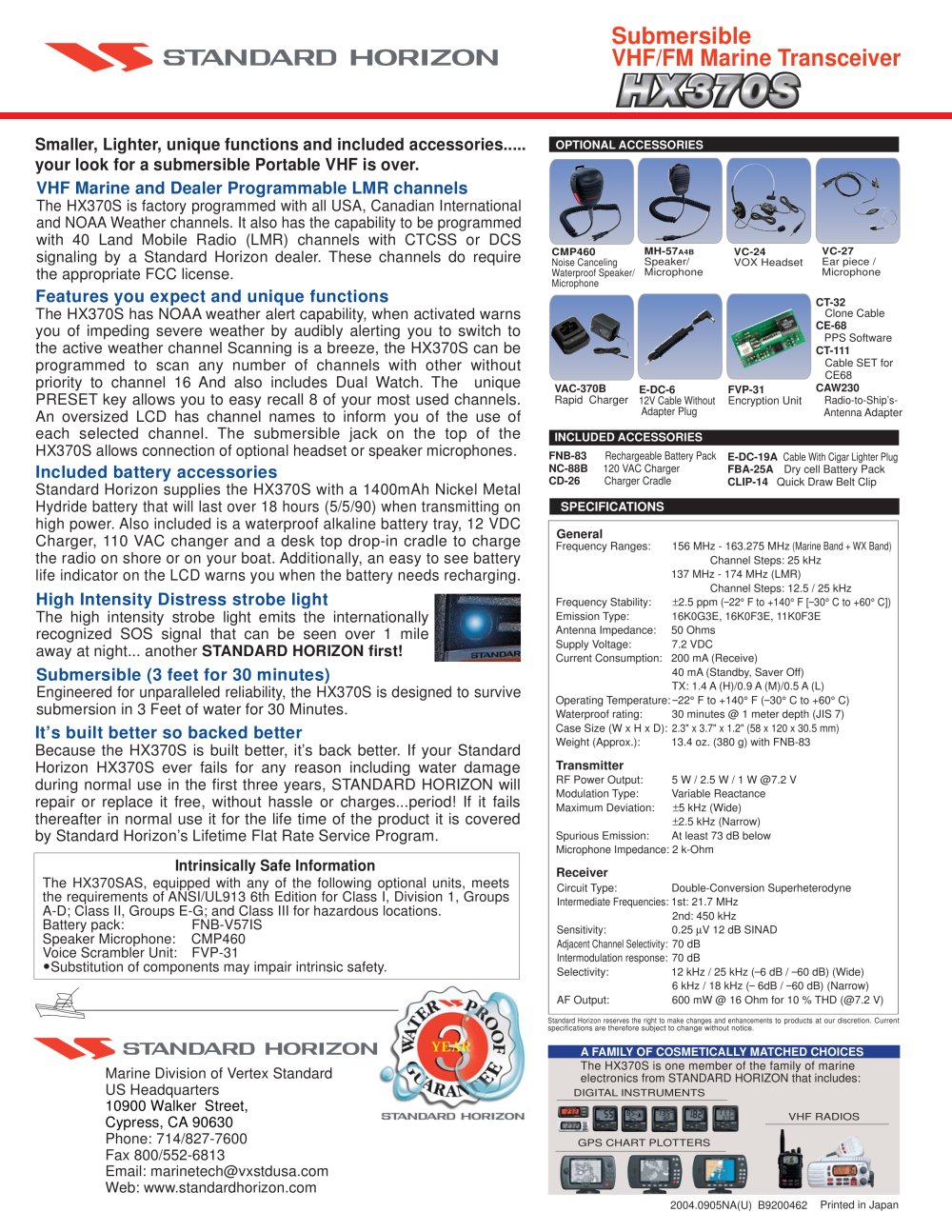

Submersible VHF/FM Marine transceiver Smaller, Lighter, unique functions and included accessories..... your look for a submersible PORTABLE VHF is over.

OPTIONAL ACCESSORIES INCLUDED ACCESSORIES

VHF Marine and Dealer Programmable LMR channels

The HX370S is factory programmed with all USA, Canadian International and NOAA Weather channels. It also has the capability to be programmed with 40 Land Mobile Radio (LMR) channels with CTCSS or DCS signaling by a Standard Horizon dealer. These channels do require the appropriate FCC license.

CMP460 VC-24 VOX Headset MH-57 A4B VC-27 Noise Canceling Waterproof Marine speaker/ Microphone Speaker/ Microphone Ear piece / Microphone

Features you expect and unique functions

CT-32

The HX370S has NOAA weather alert capability, when activated warns

Clone Cable

you of impeding severe weather by audibly alerting you to switch to the active weather channel Scanning is a breeze, the HX370S can be programmed to scan any number of channels with other without priority to channel 16 And also includes Dual Watch. The unique PRESET key allows you to easy recall 8 of your most used channels. An oversized LCD has channel names to inform you of the use of each selected channel. The submersible jack on the top of the

CE-68 PPS Software CT-111 Cable SET for CE68 CAW230 VAC-370B E-DC-6 FVP-31 Rapid Marine charger 12V Cable Without Encryption Unit Radio-to-Ship’s- Marine antenna Adapter Plug Adapter

HX370S allows connection of optional headset or speaker microphones.

FNB-83 Rechargeable Battery Pack E-DC-19A Cable With Cigar Lighter Plug

Included battery accessories

NC-88B 120 VAC Charger FBA-25A Dry cell Battery Pack

Standard Horizon supplies the HX370S with a 1400mAh Nickel Metal

CD-26 Charger Cradle CLIP-14 Quick Draw Belt Clip

Hydride battery that will last over 18 hours (5/5/90) when transmitting on

SPECIFICATIONS

high power. Also included is a waterproof alkaline battery tray, 12 VDC Charger, 110 VAC changer and a desk top drop-in cradle to charge

General TransmitterReceiver

Frequency Ranges: 156 MHz - 163.275 MHz ± 2.5 ppm (Marine band + WX Band)

the radio on shore or on your boat. Additionally, an easy to see battery

Channel Steps: 25 kHz 137 MHz - 174 MHz (LMR) Channel Steps: 12.5 / 25 kHz Frequency Stability: – 22 ° F to +140 ° F ( – 30 ° C to +60 ° C)Waterproof rating: 30 minutes @ 1 meter depth (JIS 7) Case Size (W x H x D):

life indicator on the LCD warns you when the battery needs recharging. STANDARD HORIZON first!

High Intensity Distress strobe light

( – 22 ° F to +140 ° F [ – 30 ° C to +60 ° C])

The high intensity strobe light emits the internationally recognized SOS signal that can be seen over 1 mile away at night... another

Emission Type: 16K0G3E, 16K0F3E, 11K0F3EAntenna Impedance: 50 Ohms Supply Voltage: 7.2 VDC Current Consumption: 200 mA (Receive) 40 mA (Standby, Saver Off) TX: 1.4 A (H)/0.9 A (M)/0.5 A (L) Operating Temperature:

Submersible (3 feet for 30 minutes)

Engineered for unparalleled reliability, the HX370S is designed to survive submersion in 3 Feet of water for 30 Minutes.

It’s built better so backed better

2.3" x 3.7" x 1.2" (58 x 120 x 30.5 mm)

Because the HX370S is built better, it’s back better. If your Standard Horizon HX370S ever fails for any reason including water damage during normal use in the first three years, STANDARD HORIZON will repair or replace it free, without hassle or charges...period! If it fails thereafter in normal use it for the life time of the product it is covered by Standard Horizon’s Lifetime Flat Rate Service Program.

Weight (Approx.): 13.4 oz. (380 g) with FNB-83RF Power Output: 5 W / 2.5 W / 1 W @7.2 VModulation Type: Variable ReactanceMaximum Deviation: ± 5 kHz (Wide)

• Substitution of components may impair intrinsic safety.

± 2.5 kHz (Narrow)Spurious Emission: At least 73 dB below Microphone Impedance : 2 k-OhmCircuit Type: Double-Conversion SuperheterodyneI

Intrinsically Safe Information

The HX370SAS, equipped with any of the following optional units, meets the requirements of ANSI/UL913 6th Edition for Class I, Division 1, Groups A-D; Class II, Groups E-G; and Class III for hazardous locations. Battery pack: FNB-V57IS Speaker Microphone: CMP460 Voice Scrambler Unit: FVP-31

ntermediate Frequencies : 1st: 21.7 MHz 2nd: 450 kHz Sensitivity: 0.25 µ V 12 dB SINAD Adjacent Channel Selectivit y: 70 dB Intermodulation response : 70 dBSelectivity: 12 kHz / 25 kHz ( – 6 dB / – 60 dB) (Wide) 6 kHz / 18 kHz ( – 6dB / – 60 dB) (Narrow)AF Output: 600 mW @ 16 Ohm for 10 % THD (@7.2 V)
Standard Horizon reserves the right to make changes and enhancements to products at our discretion. Current specifications are therefore subject to change without notice.

AFAMILY OF COSMETICALLY MATCHED CHOICES

Marine Division of Vertex Standard US Headquarters10900 Walker Street, Cypress, CA 90630 Phone: 714/827-7600 Fax 800/552-6813 Email: marinetech@vxstdusa.com Web: www.standardhorizon.com

The HX370S is one member of the family of marine electronicsfrom STANDARD HORIZON that includes:

VHF RADIOS MARINE GPS CHART PLOTTERSDIGITAL INSTRUMENTS 2004.0905NA(U)B9200462Printed in Japan
