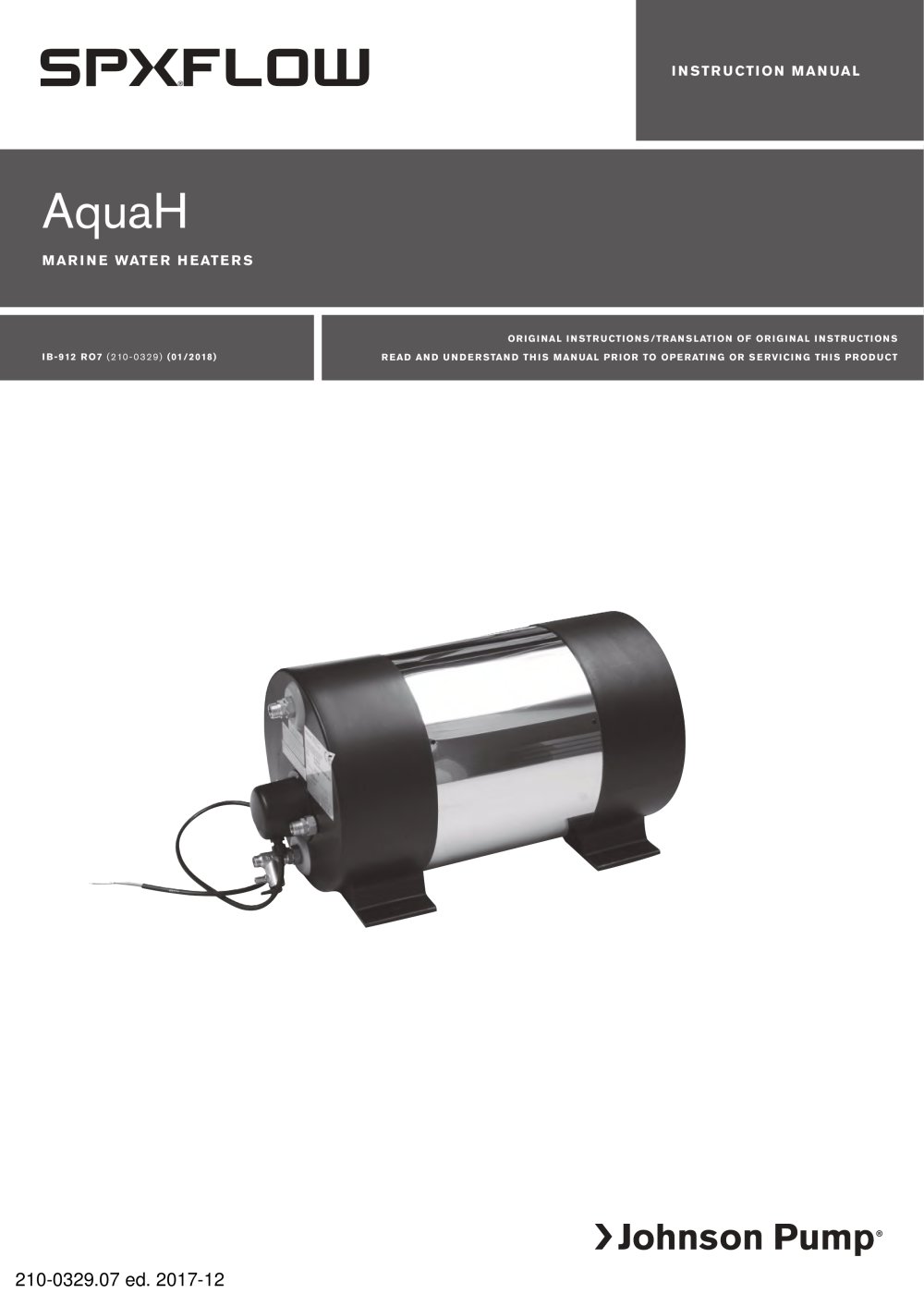

AquaH Marine Water Heaters Stainless steel water heaters with dual heating as standard - electrical heating and indirect heating based on an second heat source, for example based on the cooling system from the Marine engine or generator set. AquaH is a new innovative series of AISI 316 stainless steel water heaters, with a storage capacity of 22 up to 80 litres (from 5.3 to 19.3 gal.). The heaters are cased in AISI 304 stainless steel and is provided with a sturdy compact plastic end cover which also includes the mounting brackets. The AquaH series is designed to withstand the marine environment. It is compact, easy to install and has a modern, attractive look. Electrical heating elements are available in Incoloy at 500 & 1200 Watts allowing hot water production when engine heat is not available but when 230 volts AC is. Delivered with an adjustable safety thermostat for temperature adjustment while on electrical heating. External casing made of AISI 304 stainless steel • Standard with compact plastic integrated mounting brackets • Internal surface made of AISI 316L stainless steel • Heat insulation polyurethane foam • Safety & non return valve set at 6 Bar +/- 0,5 Bar • Engine ware fittings 1/2 BSP• Accessories Order no Description 56-47464-01 AquaH Thermostat Water Mixer Kit AquaH - Marine Water Heaters complies with the requirements of the following European Directives: Low Voltage (LVD) Directive 2006/95/EC EN 60335-1 (2008): Household and Similar Electrical Appliances – • Safety -Part 1: General requirements EN 60335-2-21 (02-2004) + A1 (07-2005) + EC (01-2008): Household and • Similar Electrical Appliances – Safety - Part 2: Particular requirements for storage of water heaters Electromagnetic Compatibility (EMC) Directive 2004/108/EC EN 55014 – 1 (1999) + A1 (2000) + A2(2003): Electromagnetic compatibility. • Requirements for household appliances, electrical tools and similar apparatus. Emission. EN 55014 – 2 (1998) + A1 (2002): Electromagnetic compatibility. Requirements • for household appliances, electrical tools and similar apparatus. Immunity. Order no Description 56-47455-01 AquaH Marine Water Heater 1200W / 22L 220V 56-47455-03 AquaH Marine Water Heater 500W / 22L 220V 56-47456-01 AquaH Marine Water Heater 1200W / 30L 220V 56-47456-03 AquaH Marine Water Heater 500W / 30L 220V 56-47457-01 AquaH Marine Water Heater 1200W / 45L 220V 56-47457-03 AquaH Marine Water Heater 500W / 45L 220V 56-47458-01 AquaH Marine Water Heater 1200W / 60L 220V 56-47458-03 AquaH Marine Water Heater 500W / 60L 220V 56-47459-01 AquaH Marine Water Heater 1200W / 80L 220V 56-47459-03 AquaH Marine Water Heater 500W / 80L 220V
