perry
MACHINERY SIZE
TYPICAL FIN AREA
(M 2 )
APPROX. UNIT WGT. (TONS)
NORMAL
KW PER SIDE
TYPICAL DIMENSIONS
(IN METERS)
A
B
C
D
E
F
G
H
I
J
1
3.60
17
18
3
1.2
0.76
1.61
0.65
1.15
2.51
1.35
1.93
5.57
2
6.7
33
26
3.66
1.83
0.98
2.03
0.82
1.36
3.15
1.86
2.57
7.15
3
10
52
55
4.44
2.25
1.33
2.45
0.91
1.72
3.64
2.03
3.12
8.05
4
15
81
65
5.77
2.6
1.39
2.79
1.05
2.10
4.14
2.22
3.59
9.08
5
22
105
100
6.64
3.32
1.76
3.54
1.30
2.67
5.25
2.8
4.5
11.77

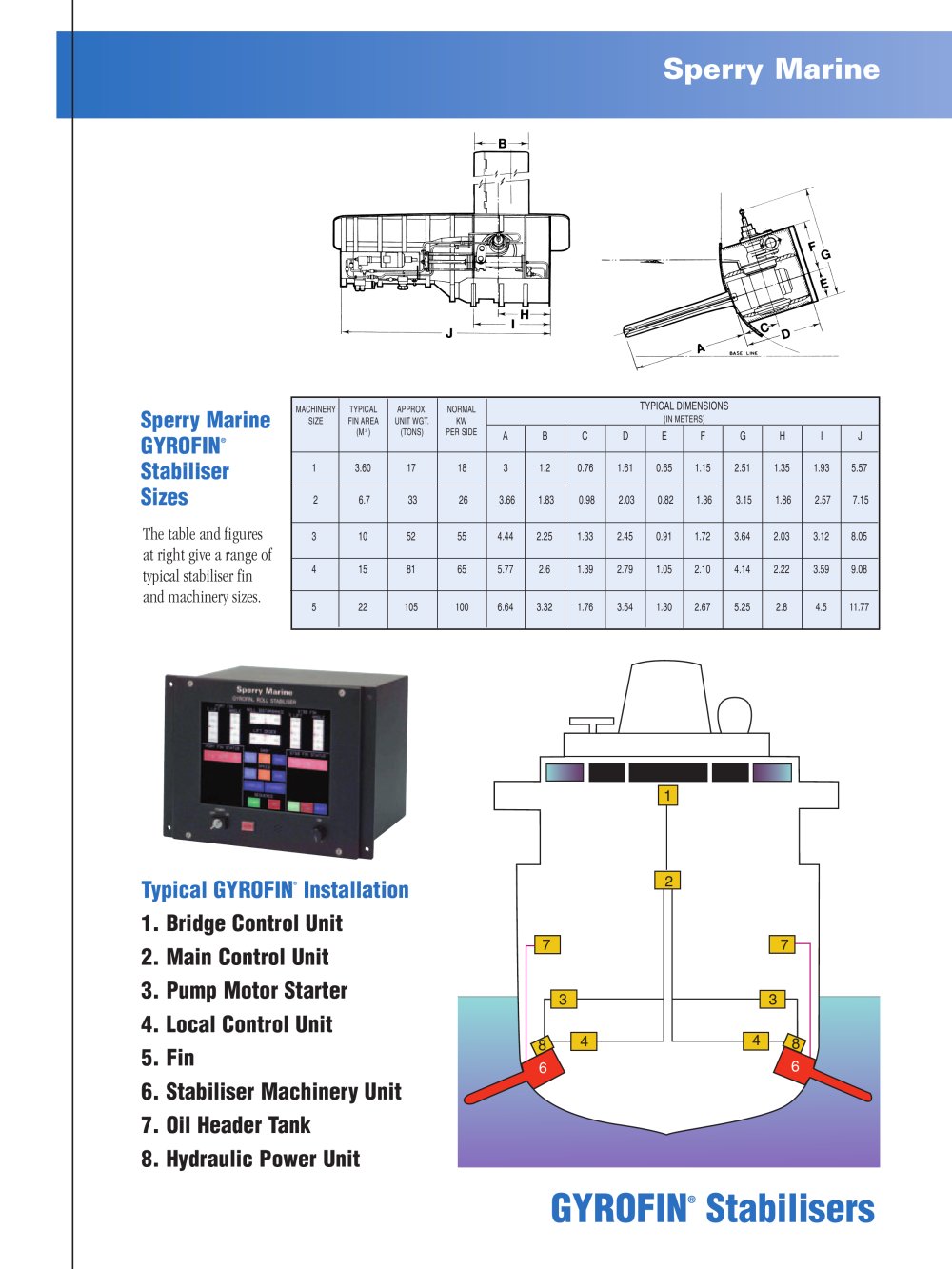

Sperry Marine GYROFIN® Stabiliser Sizes
The table and figures at right give a range of typical stabiliser fin and machinery sizes.
D.
2
Typical GYROFIN* Installation
1. Bridge Control Unit
2. Main Control Unit
3. Pump Motor Starter
4. Local Control Unit
5. Fin
6. Stabiliser Machinery Unit
7. Oil Header Tank
8. Hydraulic Power Unit
Era
ri3--3 h
GYROFIN® Stabilisers
