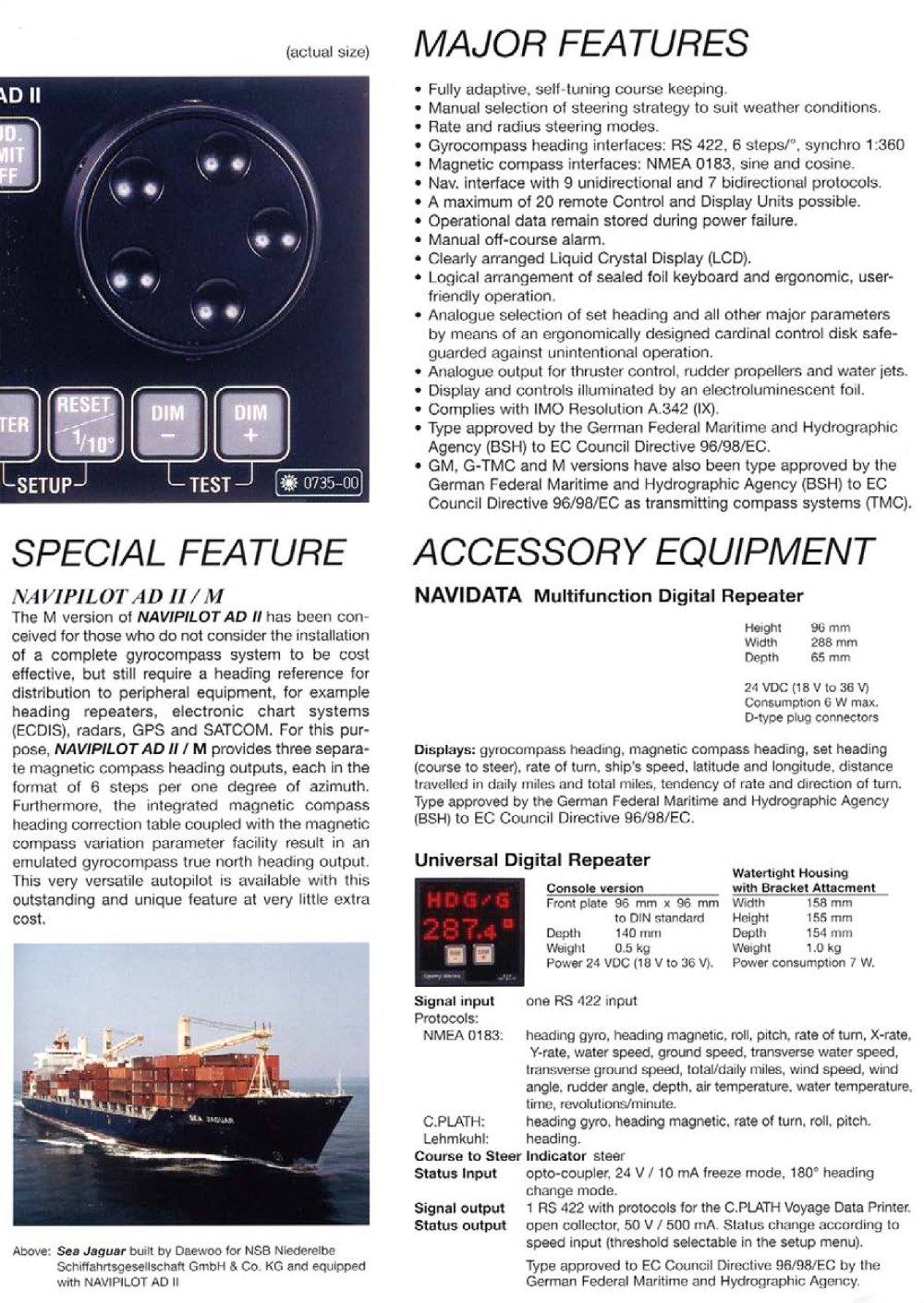

| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | MAJOR FEATURES | | | | | | (actual size) | | | | | | | | | | | | | | Fully adaptive, self-tuning course keeping. Manual selection ot steering strategy to suit weather conditions Rate and radius steering modes. Gyrocompass heading interlaces; RS 422. 6 steps/", synchro 1:360 Magnetic compass interfaces: NMEA 0183, sine and cosine. Nav. interface with 9 unidirectional and 7 bidirectional protocols. A maximum of 20 remote Control and Display Units possible-Operational data remain stored during power failure. Manual off-course alarm. Clearly arranged Liquid Crystal Display (LCD). Logical arrangement of sealed foil keyboard and ergonomic, user-friendly operation. Analogue selection of set heading and all other major parameters by means of an ergonomically designed cardinal control disk safeguarded against unintentional operation. Analogue output for thruster control, rudder propellers and water jets. Display and controls illuminated by an electroluminescent foil. Complies with IMO Resolution A.342 (IX). Type approved by the German Federal Maritime and Hydrographic Agency (BSH) to EC Council Directive 96/98/EC. GM. G-TMC and M versions have also been type approved by the German federal Maritime and Hydrographic Agency (BSH) to EC Council Directive 96/98/EC as transmitting compass systems (TMC). | | | | | | SETUP | | | | | | | | | | | | | | SPECIAL FEATURE ACCESSORY EQUIPMENT | | | | | | | | | | NAVIGATA Multifunction Digital Repeater Height 9ti mm Width 288 mm Depth 65 mm 24 VDC (18 V to 3G V) Consumption 0 W max. D-type plug connectes Displays: gyrocompass heading, magnetic compass heading, set heading (course to steer), rate of turn, ship's speed, latitude and longitude, distance travelled in daily miles and total miles, tendency of rate and direction of turn. Type approved by the German Federal Maritime and Hydrographic Agency (BSH) to EC Council Directive 96/98/EC. | | | | | | NAVIPILOTAD 11 /M The M version of NAVIPILOTAD II has been conceived for those who do not consider the installation of a complete gyrocompass system to be cost effective, but still require a heading reference for distribution to peripheral equipment, for example heading repeaters, electronic chart systems (ECDIS), radars. GPS and SATCOM. For this purpose, NAVIPILOT AD III M provides three separate magnetic compass heading outputs, each in the format of 6 steps per one degree of azimuth. Furthermore, the integrated magnetic compass heading correction table coupled with the magnetic compass variation parameter facility result in an emulated gyrocompass true north heading output. This very versatile boat autopilot is available with this outstanding and unique feature at very little extra cost. | | | | | | | | | | Universal Digital Repeater | | | | | | Watertight Housing with Bracket Attacment Width 158 mm Height 155 mm Doplh 154 mm Weight 1.0 kg Power consumption 7 W, | | | | | | | | | | Console version | | | | | | | | | | Frant plate 96 mm x 96 mm to DIN standard Depth 140 mm Weight 0.5 kg Power 2d VDC (18 V to 36 V). | | | | | | 287.4° | | | | | | | | | | | | | | | | | | one RS -122 input | | | | | | Signal input Protocols: NMEA 0183: | | | | | | | | | | heading gyro, heading magnetic, roll, pitch, rate of turn. X-rate. Y-rate, water speed, ground speed, transverse water speed, transverse ground speed, total/datly miles, wind speed, wind angle, rudder angle, depth, air temperature, water temperature, time, revolutions/minute. heading gyro, heading magnetic, rate of turn. roll, pitch. heading. Indicator steer opto-coupler. 24 V /10 mA freeze mode, 180c heading change mode. 1 RS 422 with protocols for the C.PLATH Voyage Data Printer, open collector. 50 V / 500 mA. Stains change according to speed input (threshold selectable in the setup menu). Type approved to EC Council Directive 96/98/EC by the German Federal Maritime and Hydrographic Agency. | | | | | | | | | | C.PLATH: Lehmkuhl: Course to Steer Status Input Signal output Status output | | | | | | | | | | Above: Sea Jaguar built by Daewoo for NSB Nlederelbe Schiffahrtsgesellschaft GmbH & Co. KC and equipped with NAVIPILOT AD II | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
|
