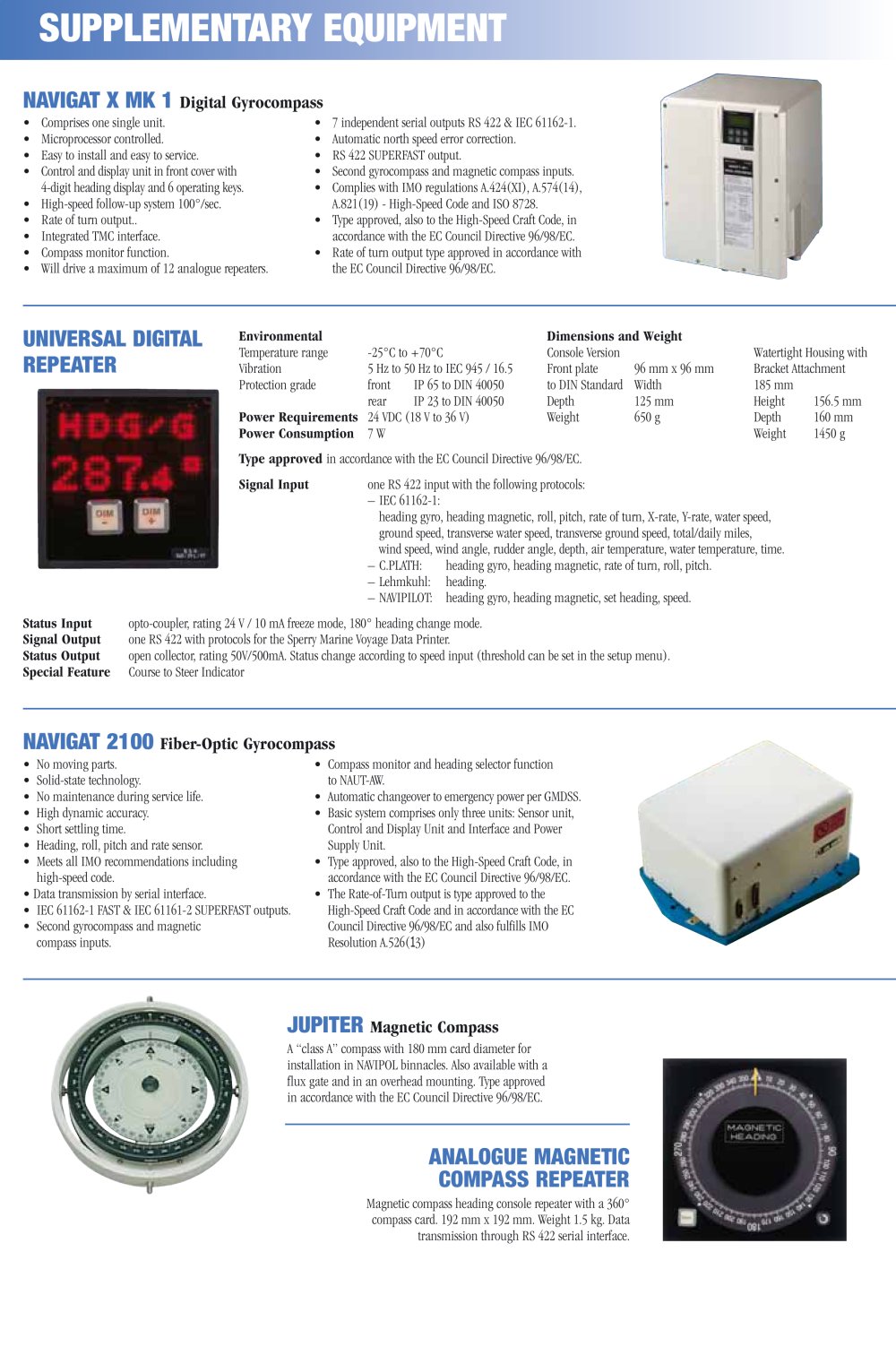

| | | 7 independent serial outputs RS 422 & IEC 61162-1. Automatic north speed error correction. RS 422 SUPERFAST output. Second gyrocompass and magnetic compass inputs. Complies with IMO regulations A.424(XI), A.574(14), A.821(19) - High-Speed Code and ISO 8728. Type approved, also to the High-Speed Craft Code, in accordance with the EC Council Directive 96/98/EC. Rate of turn output type approved in accordance with the EC Council Directive 96/98/EC. | | |
| | | Comprises one single unit. Microprocessor controlled. Easy to install and easy to service. Control and display unit in front cover with 4-digit heading display and 6 operating keys. High-speed follow-up system 100°/sec. Rate of turn output.. Integrated TMC interface. Compass monitor function. Will drive a maximum of 12 analogue repeaters. | | |
| | | Signal Input one RS 422 input with the following protocols: -IEC 61162-1: heading gyro, heading magnetic, roll, pitch, rate of turn, X-rate, Y-rate, water speed, ground speed, transverse water speed, transverse ground speed, total/daily miles, wind speed, wind angle, rudder angle, depth, air temperature, water temperature, time. - C.PLATH: heading gyro, heading magnetic, rate of turn, roll, pitch. - Lehmkuhl: heading. - NAVIPILOT: heading gyro, heading magnetic, set heading, speed. opto-coupler, rating 24 V / 10 mA freeze mode, 180° heading change mode. one RS 422 with protocols for the Sperry Marine Voyage Data Printer. open collector, rating 50V/500mA. Status change according to speed input (threshold can be set in the setup menu). Course to Steer Indicator | | |
| | | Compass monitor and heading selector function to NAUT-AW. Automatic changeover to emergency power per GMDSS. Basic system comprises only three units: Sensor unit, Control and Display Unit and Interface and Power Supply Unit. Type approved, also to the High-Speed Craft Code, in accordance with the EC Council Directive 96/98/EC. The Rate-of-Turn output is type approved to the High-Speed Craft Code and in accordance with the EC Council Directive 96/98/EC and also fulfills IMO Resolution A.526(13) | | |
| | | • No moving parts. • Solid-state technology. • No maintenance during service life. • High dynamic accuracy • Short settling time. • Heading, roll, pitch and rate sensor • Meets all IMO recommendations including high-speed code. • Data transmission by serial interface. • IEC 61162-1 FAST & IEC 61161-2 SUPERFAST outputs. • Second gyrocompass and magnetic compass inputs. | | |
