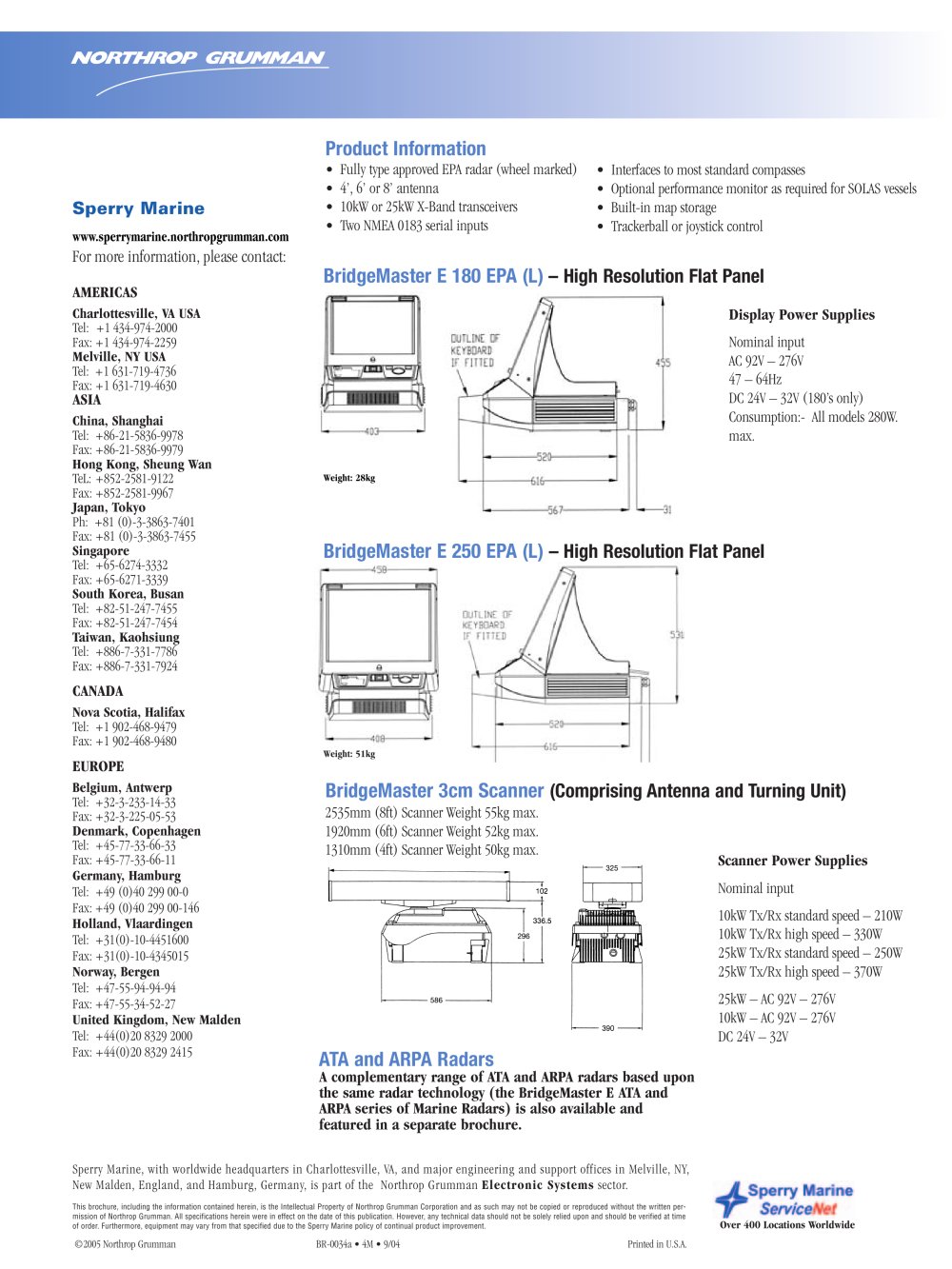

Product Information
• Fully type approved EPA radar (wheel marked)
• 4', 6' or 8' boat antenna
• 10kW or 25kW X-Band transceivers
• Two NMEA 0183 serial inputs
• Interfaces to most standard compasses
• Optional performance monitor as required for SOLAS vessels
• Built-in map storage
• Trackerball or joystick control
Sperry Marine
www.sperrymarine.northropgrumman.com
For more information, please contact:
AMERICAS
Charlottesville, VA USA
Tel: +1 434-974-2000 Fax: +1 434-974-2259
Melville, NY USA
Tel: +1 631-719-4736 Fax: +1 631-719-4630
ASIA
China, Shanghai
Tel: +86-21-5836-9978 Fax: +86-21-5836-9979 Hong Kong, Sheung Wan
TeL: +852-2581-9122
Fax: +852-2581-9967
Japan, Tokyo
Ph: +81 (0)-3-3863-7401 Fax: +81 (0)-3-3863-7455 Singapore
Tel: +65-6274-3332 Fax: +65-6271-3339
South Korea, Busan
Tel: +82-51-247-7455 Fax: +82-51-247-7454
Taiwan, Kaohsiung
Tel: +886-7-331-7786 Fax: +886-7-331-7924
CANADA
Nova Scotia, Halifax
Tel: +1 902-468-9479 Fax: +1 902-468-9480
EUROPE
Belgium, Antwerp
Tel: +32-3-233-14-33 Fax: +32-3-225-05-53
Denmark, Copenhagen
Tel: +45-77-33-66-33 Fax: +45-77-33-66-11
Germany, Hamburg
Tel: +49 (0)40 299 00-0 Fax: +49 (0)40 299 00-146 Holland, Vlaardingen
Tel: +31(0)-10-4451600 Fax: +31(0)-10-4345015
Norway, Bergen
Tel: +47-55-94-94-94 Fax: +47-55-34-52-27
United Kingdom, New Malden
Tel: +44(0)20 8329 2000 Fax: +44(0)20 8329 2415
BridgeMaster E 180 EPA (L) - High Resolution Flat Panel
Display Power Supplies
Nominal input AC 92V - 276V 47 - 64Hz
DC 24V - 32V (180's only) Consumption:- All models 280W. max.
Weight: 28kg
BridgeMaster E 250 EPA (L)
High Resolution Flat Panel
Weight: 51kg
BridgeMaster 3cm Scanner (Comprising Antenna and Turning Unit)
2535mm (8ft) Scanner Weight 55kg max. 1920mm (6ft) Scanner Weight 52kg max.
1310mm (4ft) Scanner Weight 50kg max. or
Scanner Power Supplies
Nominal input
10kW Tx/Rx standard speed - 210W 10kW Tx/Rx high speed - 330W
25kW Tx/Rx standard speed - 250W 25kW Tx/Rx high speed - 370W
25kW - AC 92V - 276V 10kW - AC 92V - 276V DC 24V - 32V
ATA and ARPA Radars
A complementary range of ATA and ARPA radars based upon the same radar technology (the BridgeMaster E ATA and ARPA series of Marine radars) is also available and featured in a separate brochure.
Sperry Marine, with worldwide headquarters in Charlottesville, VA, and major engineering and support offices in Melville, NY, New Malden, England, and Hamburg, Germany, is part of the Northrop Grumman Electronic Systems sector.
This brochure, including the information contained herein, is the Intellectual Property of Northrop Grumman Corporation and as such may not be copied or reproduced without the written per­mission of Northrop Grumman. All specifications herein were in effect on the date of this publication. However, any technical data should not be solely relied upon and should be verified at time of order. Furthermore, equipment may vary from that specified due to the Sperry Marine policy of continual product improvement.
©2005 Northrop Grumman BR-0034a • 4M • 9/04 Printed in U.S.A.
