Type Approval IEC 60945 (Environmental)IEC 60936-1 (Radar Performance)
IEC 60872-3 (EPA Performance)

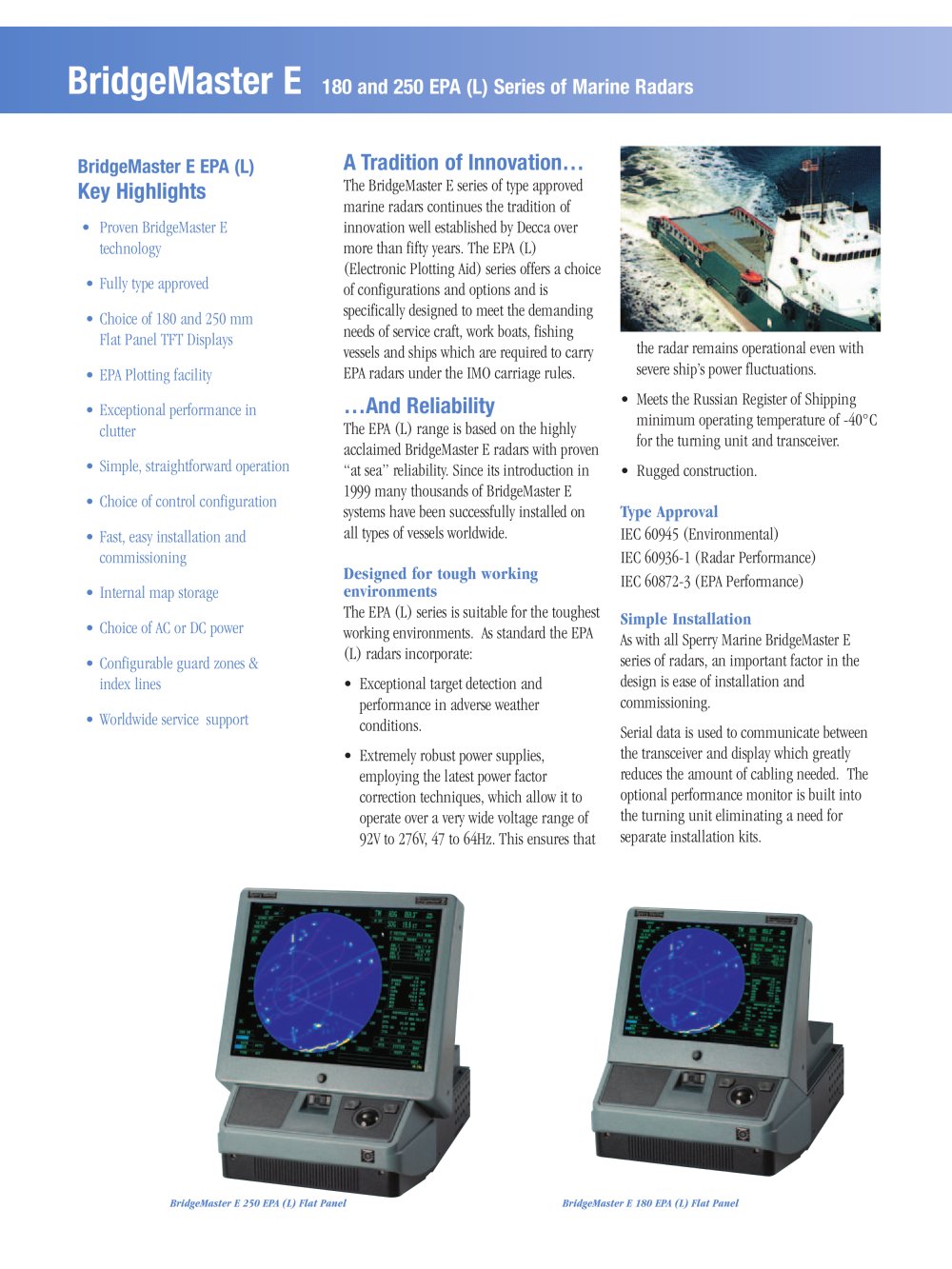

BridgeMaster E
Simple Installation
180 and 250 EPA (L) Series of Marine radars
As with all Sperry Marine BridgeMaster E
series of radars, an important factor in the
design is ease of installation and
commissioning.Serial data is used to communicate betweenthe transceiver and display which greatly
reduces the amount of cabling needed. The
optional performance monitor is built into
the turning unit eliminating a need for
separate installation kits. •Proven BridgeMaster Etechnology•Fully type approved
•Choice of 180 and 250 mm Flat Panel TFT Displays•EPA Plotting facility
•Exceptional performance inclutter•Simple, straightforward operation
•Choice of control configuration
•Fast, easy installation and commissioning•Internal map storage
•Choice of AC or DC power
•Configurable guard zones & index lines•Worldwide service support
BridgeMaster E EPA (L)
A Tradition of Innovation… Key Highlights
The BridgeMaster E series of type approvedmarine radars continues the tradition of
innovation well established by Decca over
more than fifty years. The EPA (L)
(Electronic Plotting Aid) series offers a choice
of configurations and options and is
specifically designed to meet the demanding
needs of service craft,
work boats, fishing
vessels and ships which are required to carry
EPA radars under the IMO carriage rules. Designed for tough workingenvironments
…And Reliability
The EPA (L) series is suitable for the toughest
working environments. As standard the EPA
(L) radars incorporate:• Exceptional target detection andperformance in adverse weather
conditions.• Extremely robust power supplies,employing the latest power factor
correction techniques, which allow it to
operate over a very wide voltage range of
92V to 276V, 47 to 64Hz. This ensures that
the radar remains operational even withsevere ship’s power fluctuations.• Meets the Russian Register of Shippingminimum operating temperature of -40°C
for the turning unit and transceiver.• Rugged construction. The EPA (L) range is based on the highly
acclaimed BridgeMaster E radars with proven
“at sea” reliability. Since its introduction in
1999 many thousands of BridgeMaster E
systemshave been successfully installed on
all types of vessels worldwide.
BridgeMaster E 250 EPA (L) Flat PanelBridgeMaster E 180 EPA (L) Flat Panel
