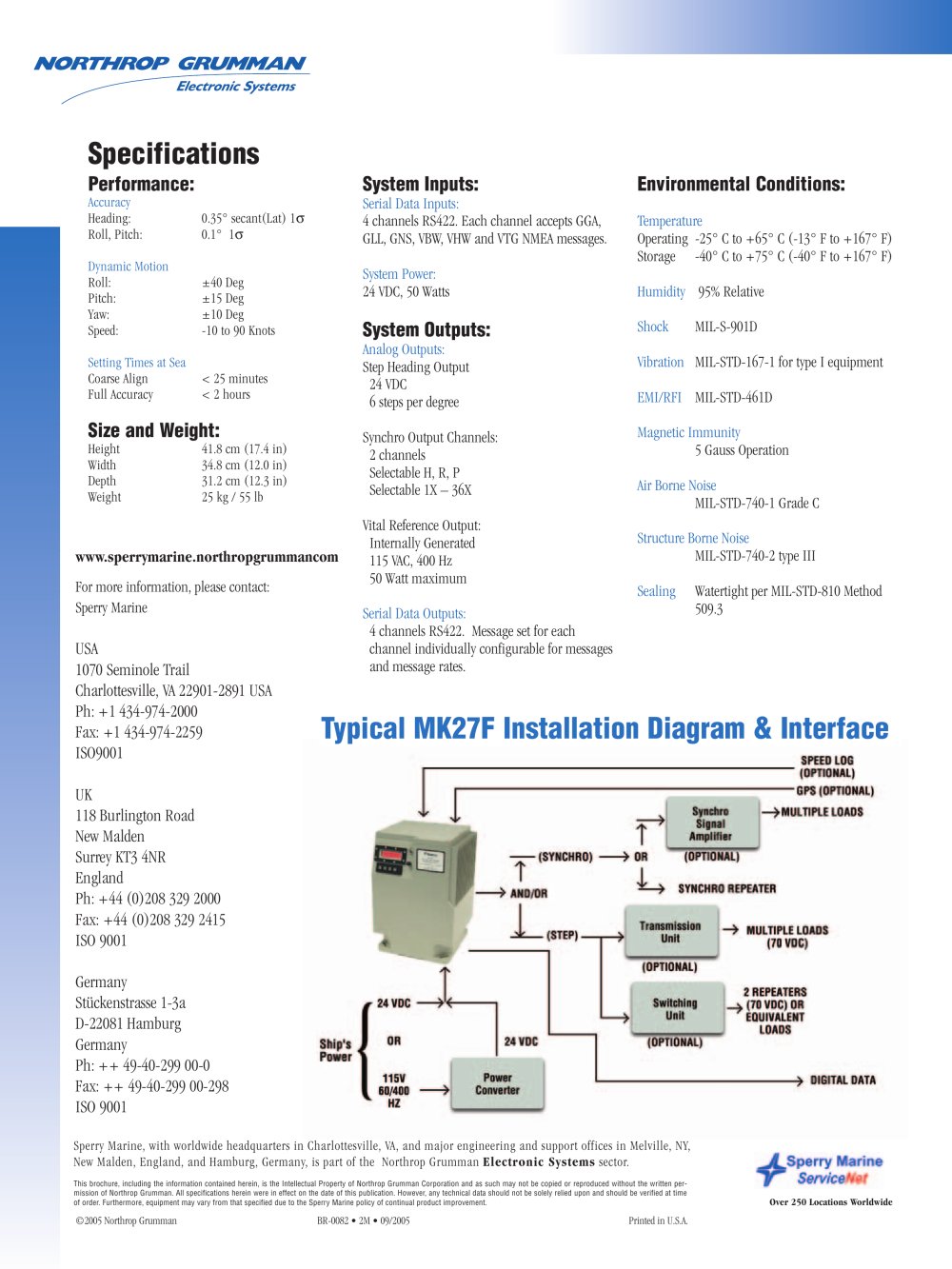

| | | Specifications | | |
| | | |
| | | System Inputs: Serial Data Inputs: 4 channels RS422. Each channel accepts GGA, GLL, GNS, VBW, VHW and VTG NMEA messages. System Power: 24 VDC, 50 Watts System Outputs: Analog Outputs: Step Heading Output 24 VDC 6 steps per degree Synchro Output Channels: 2 channels Selectable H, R, P Selectable 1X - 36X Vital Reference Output: Internally Generated 115 VAC, 400 Hz 50 Watt maximum Serial Data Outputs: 4 channels RS422. Message set for each channel individually configurable for messages and message rates. | | Environmental Conditions: Temperature Operating -25° C to +65° C (-13° F to +167° F) Storage -40° C to +75° C (-40° F to +167° F) Humidity 95% Relative Shock MIL-S-901D Vibration MIL-STD-167-1 for type I equipment EMI/RFI MIL-STD-461D Magnetic Immunity 5 Gauss Operation Air Borne Noise MIL-STD-740-1 Grade C Structure Borne Noise MIL-STD-740-2 type III Sealing Watertight per MIL-STD-810 Method 509.3 | | |
| | | Performance: Accuracy Heading: Roll, Pitch: Dynamic Motion Roll: Pitch: Yaw: Speed: Setting Times at Sea Coarse Align Full Accuracy | | |
| | | 0.35° secant(Lat) 1o 0.1° 1o | | |
| | | |
| | | ±40 Deg ±15 Deg ±10 Deg -10 to 90 Knots | | |
| | | |
| | | < 25 minutes < 2 hours | | |
| | | |
| | | |
| | | Size and Weight: Height 41.8 cm (17.4 in) Width 34.8 cm (12.0 in) Depth 31.2 cm (12.3 in) Weight 25 kg / 55 lb | | |
| | | |
| | | www.sperrymarine.northropgrummancom For more information, please contact: Sperry Marine USA 1070 Seminole Trail Charlottesville, VA 22901-2891 USA Ph: +1 434-974-2000 | | |
| | | |
| | | |
| | | Typical MK27F Installation Diagram & Interface | | |
| | | Fax: +1 434-974-2259
| | |
| | | |
| | | |
| | | ISO9001 UK 118 Burlington Road New Malden Surrey KT3 4NR England Ph: +44 (0)208 329 2000 Fax: +44 (0)208 329 2415 ISO 9001 Germany Stuckenstrasse 1-3a D-22081 Hamburg Germany Ph: ++ 49-40-299 00-0 Fax: ++ 49-40-299 00-298 ISO 9001 | | |
| | | SPEED LOG (OPTIONAL) DPS (OPTIONAL) | | |
| | | |
| | | Synchro Signal Annulier | | |
| | | MULTIPLE LOADS | | |
| | | |
| | | |
| | | (OPTIONAL) SYNCHRO. REPEATER | | |
| | | |
| | | -> MULTIPLE LOADS (7QVDG) | | |
| | | |
| | | Z REPEATERS _i |TQ VDC) DR EQUIVALENT LOADS | | |
| | | |
| | | Ship's Power | | |
| | | |
| | | * DIGITAL DATA | | |
| | | |
| | | |
