Sperry Marine

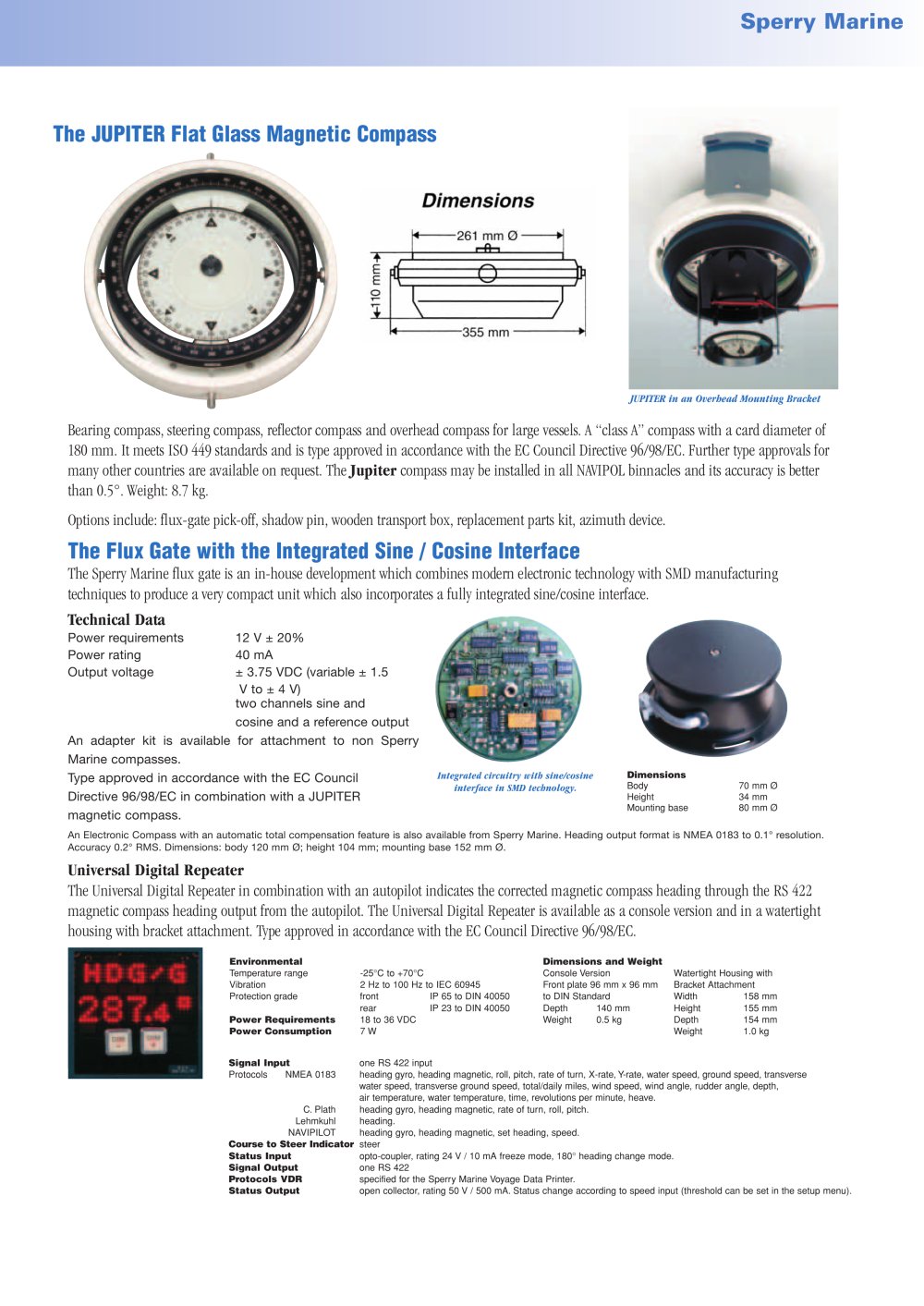

The JUPITER Flat Glass Magnetic Compass

JUPITER in an Overhead Mounting Bracket

Bearing compass, steering compass, reflector compass and overhead compass for large vessels. A "class A" compass with a card diameter of 180 mm. It meets ISO 449 standards and is type approved in accordance with the EC Council Directive 96/98/EC. Further type approvals for many other countries are available on request. The Jupiter compass may be installed in all NAVIPOL binnacles and its accuracy is better than 0.5°. Weight: 8.7 kg.

Options include: flux-gate pick-off, shadow pin, wooden transport box, replacement parts kit, azimuth device.

The Flux Gate with the Integrated Sine / Cosine Interface

The Sperry Marine flux gate is an in-house development which combines modern electronic technology with SMD manufacturing techniques to produce a very compact unit which also incorporates a fully integrated sine/cosine interface.

Technical Data

Power requirements Power rating Output voltage

12 V ± 20% 40 mA

± 3.75 VDC (variable ± 1.5

V to ±4 V)

two channels sine and

cosine and a reference output An adapter kit is available for attachment to non Sperry Marine compasses.

Dimensions

Body Height

Mounting base

Type approved in accordance with the EC Council btu^muid circnUty wia sMcoshw

interface in SMD technology.

Directive 96/98/EC in combination with a JUPITER

70 mm 0 34 mm 80 mm 0

magnetic compass.

An Electronic compass with an automatic total compensation feature is also available from Sperry Marine. Heading output format is NMEA 0183 to 0.1° resolution. Accuracy 0.2° RMS. Dimensions: body 120 mm 0; height 104 mm; mounting base 152 mm 0.

Universal Digital Repeater

The Universal Digital Repeater in combination with an marine autopilot indicates the corrected magnetic compass heading through the RS 422 magnetic compass heading output from the autopilot. The Universal Digital Repeater is available as a console version and in a watertight housing with bracket attachment. Type approved in accordance with the EC Council Directive 96/98/EC.

Environmental

Temperature range Vibration Protection grade

Power Requirements Power Consumption

Dimensions and Weight

Console Version

Front plate 96 mm x 96 mm

to DIN Standard

Depth 140 mm

Weight 0.5 kg

-25°C to +70°C

2 Hz to 100 Hz to IEC 60945

front IP 65 to DIN 40050

rear IP 23 to DIN 40050

18 to 36 VDC

7 W

Watertight Housing with Bracket Attachment Width 158 mm

Height 155 mm

Depth 154 mm

Weight 1.0 kg

Signal Input

Protocols NMEA 0183

one RS 422 Input

heading gyro, heading magnetic, roll, pitch, rate of turn, X-rate, Y-rate, water speed, ground speed, transverse

water speed, transverse ground speed, total/daily miles, wind speed, wind angle, rudder angle, depth, air temperature, water temperature, time, revolutions per minute, heave. C. Plath heading gyro, heading magnetic, rate of turn, roll, pitch. Lehmkuhl heading. NAVIPILOT heading gyro, heading magnetic, set heading, speed. Course to Steer Indicator steer

Status Input opto-coupler, rating 24 V / 10 mA freeze mode, 180° heading change mode.

Signal Output one RS 422

Protocols VDR specified for the Sperry Marine Voyage Data Printer.

Status Output open collector, rating 50 V / 500 mA. Status change according to speed input (threshold can be set in the setup menu).
