Magnetic Compass Systems

Jupiter magnetic flat glass compass, a flux-gate pick-off with an integrated sine/cosine interface, by-pass arrangements, azimuth devices, electronic compasses and magnetic compass autopilots (TMC). All of these products are manufactured to Sperry Marine’s well- known high standards. Cover photo of „Altonia“by courtesy of Peter Döhle Schiffahrts-KG

The Sperry MarineMagnetic Compass System

The NAVIPOL Magnetic Compass Binnacles

Sperry Marine manufacturesits own magnetic compasses and binnacles. The wide range of equipment offered by the comprehensive Sperry Marine Magnetic Compass System program includes aluminium alloy binnacles, the legendary

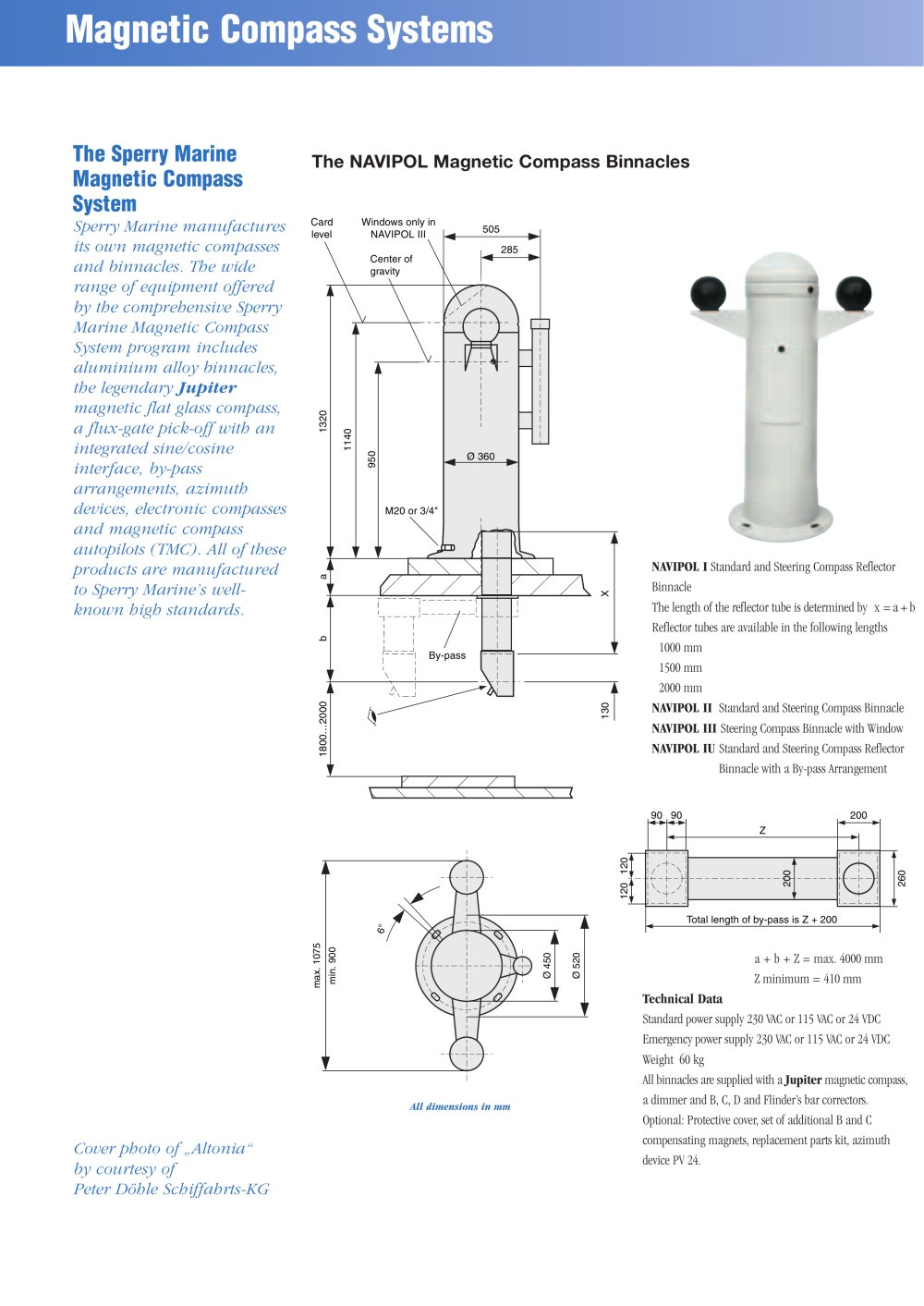

505285Cardlevel M20 or 3/4" By-pass Windows only inNAVIPOL IIICenter ofgravity Ø 360 13201800…2000 130X ba1140950 NAVIPOL I Standard and Steering compass ReflectorBinnacleThe length of the reflector tube is determined by x =a+bReflector tubes are available in the following lengths1000 mm 1500 mm2000 mm NAVIPOL II Standard and Steering Compass Binnacle NAVIPOL III Steering Compass Binnacle with Window NAVIPOL IU Standard and Steering Compass ReflectorBinnacle with a By-pass Arrangement a + b + Z = max. 4000 mmZ minimum = 410 mm
9090ZTotal length of by-pass is Z + 200 200 200 260 120120 6° Standard power supply 230 VAC or 115 VAC or 24 VDCEmergency power supply 230 VAC or 115 VAC or 24 VDCWeight 60 kgAll binnacles are supplied with a Technical Data
Ø 450Ø 520 min. 900max. 1075 Jupiter magnetic compass,a dimmer and B, C, D and Flinder’s bar correctors. Optional: Protective cover, set of additional B and C compensating magnets, replacement parts kit, azimuthdevice PV 24.
All dimensions in mm
