Electronic SystemsSperry Marine

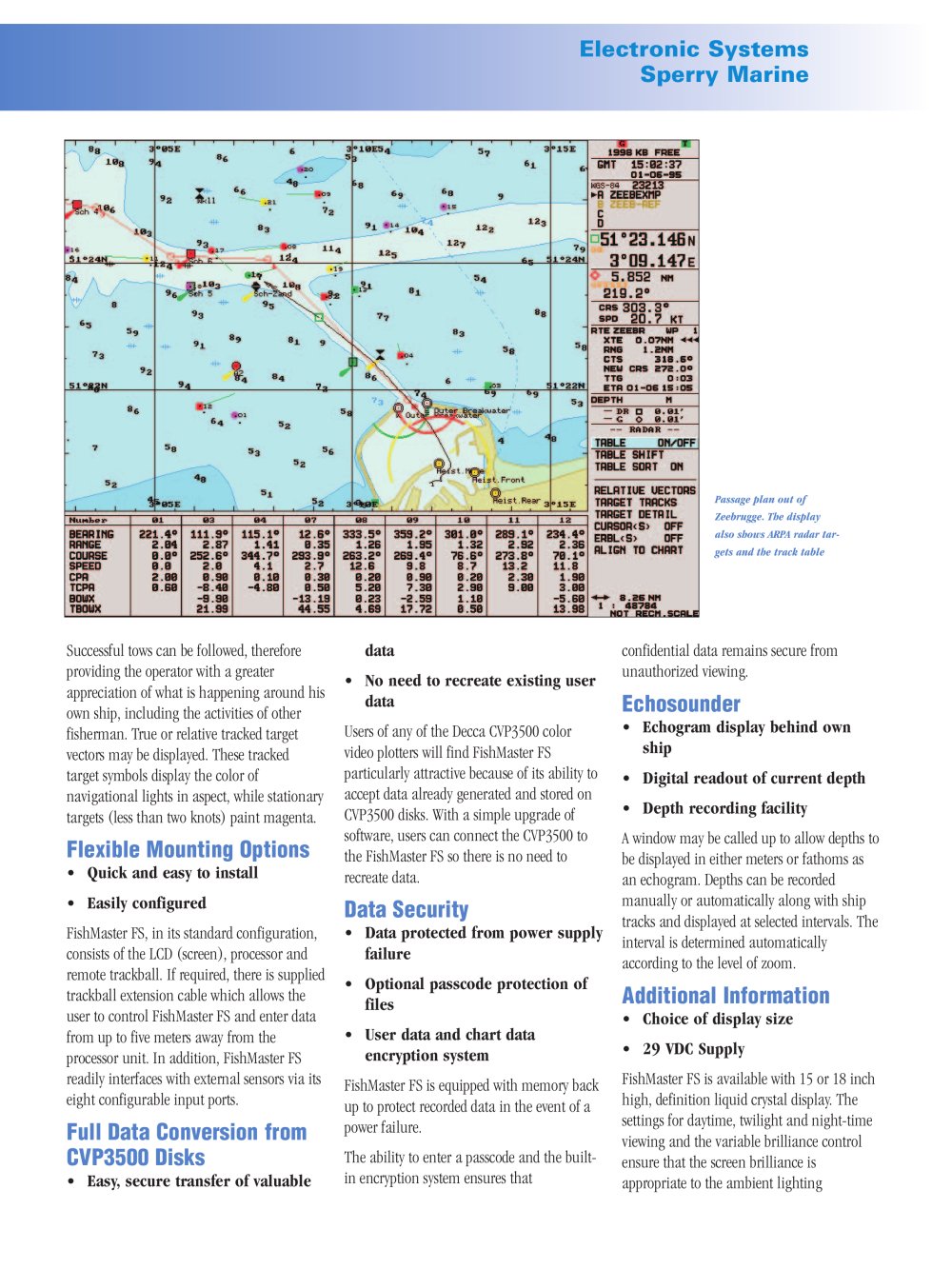

Passage plan out ofZeebrugge. The display
also shows ARPA radar tar-
gets and the track table Successful tows can be followed, thereforeproviding the operator with a greater
appreciation of what is happening around his
own ship, including the activities of other
fisherman. True or relative tracked target
vectors may be displayed. These tracked
target symbols display the color of
navigational lights in aspect, while stationary
targets (less than two knots) paint magenta.
Echosounder
A window may be called up to allow depths tobe displayed in either meters or fathoms as
an echogram. Depths can be recorded
manually or automatically along with ship
tracks and displayed at selected intervals. The
interval is determined automatically
according to the level of zoom. Users of any of the Decca CVP3500 colorvideo plotters will find FishMaster FS
particularly attractive because of its ability to
accept data already generated and stored on
CVP3500 disks. With a simple upgrade of
software, users can connect the CVP3500 to
the FishMaster FS so there is no need to
recreate data. • Echogram display behind ownship• Digital readout of current depth
• Depth recording facility
Flexible Mounting Options
• Quick and easy to install• Easily configured FishMaster FS, in its standard configuration,consists of the LCD (screen), processor and
remote trackball. If required, there is supplied
trackball extension cable which allows the
user to control FishMaster FS and enter data
from up to five meters away from the
processor unit. In addition, FishMaster FS
readily interfaces with external sensors via its
eight configurable input ports.
Data Security
• Data protected from power supplyfailure • Optional passcode protection offiles •User data and chart dataencryption system
Additional Information
• Choice of display size• 29 VDC Supply FishMaster FS is available with 15 or 18 inchhigh, definition liquid crystal display. The
settings for daytime, twilight and night-time
viewing and the variable brilliance control
ensure that the screen brilliance is
appropriate to the ambient lighting FishMaster FS is equipped with memory backup to protect recorded data in the event of a
power failure.The ability to enter a passcode and the built-in encryption system ensures that
confidential data remains secure fromunauthorized viewing.
Full Data Conversion fromCVP3500 Disks
• Easy, secure transfer of valuable
data• No need to recreate existing userdata
