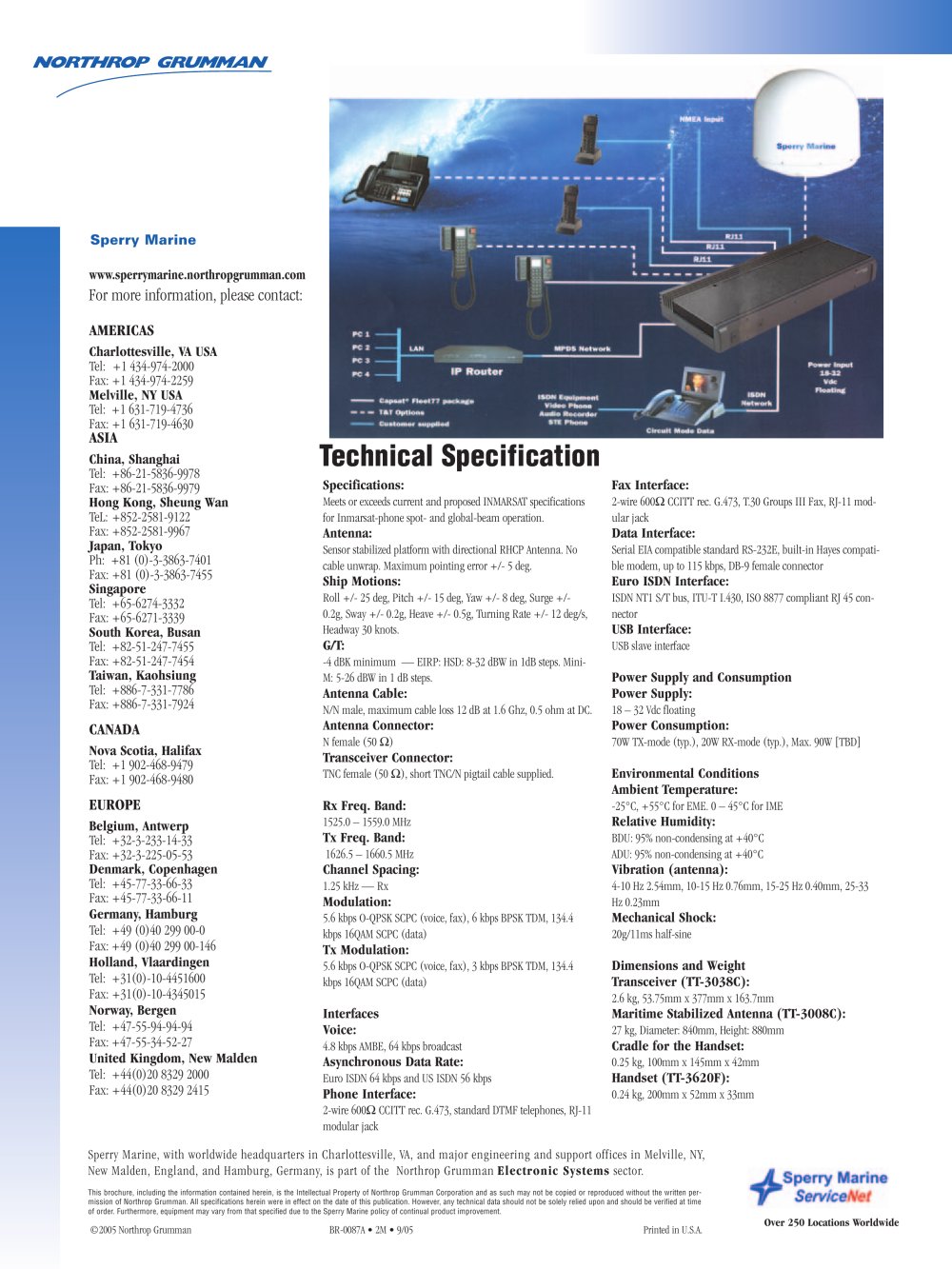

Technical Specification
Specifications: Fax Interface:
Meets or exceeds current and proposed INMARSAT specificationsfor Inmarsat-phone spot- and global-beam operation. 2-wire 600 Ω CCITT rec. G.473, T.30 Groups III Fax, RJ-11 mod-ular jack Marine antenna: Data Interface:
Sensor stabilized platform with directional RHCP Antenna. No
cable unwrap. Maximum pointing error +/- 5 deg. Serial EIA compatible standard RS-232E, built-in Hayes compati-
ble modem, up to 115 kbps, DB-9 female connector Ship Motions: Euro ISDN Interface:
Roll +/- 25 deg, Pitch +/- 15 deg, Yaw +/- 8 deg, Surge +/-
0.2g, Sway +/- 0.2g, Heave +/- 0.5g, Turning Rate +/- 12 deg/s,
Headway 30 knots. ISDN NT1 S/T bus, ITU-T I.430, ISO 8877 compliant RJ 45 con-
nector Tel: +44(0)20 8329 2000
Fax: +44(0)20 8329 2415 United Kingdom, New Malden USB Interface: G/T:
USB slave interface Tel: +47-55-94-94-94
Fax: +47-55-34-52-27
-4 dBK minimum — EIRP: HSD: 8-32 dBW in 1dB steps. Mini-
M: 5-26 dBW in 1 dB steps. Norway, Bergen Power Supply and ConsumptionPower Supply: Antenna Cable: Tel: +31(0)-10-4451600
Fax: +31(0)-10-4345015
N/N male, maximum cable loss 12 dB at 1.6 Ghz, 0.5 ohm at DC. 18 – 32 Vdc floating CANADA
Holland, Vlaardingen Antenna Connector: Power Consumption: Tel: +1 902-468-9479
Fax: +1 902-468-9480 Nova Scotia, Halifax
N female (50 Ω ) 70W TX-mode (typ.), 20W RX-mode (typ.), Max. 90W [TBD] Tel: +49 (0)40 299 00-0
Fax: +49 (0)40 299 00-146 Transceiver Connector: Tel: +45-77-33-66-33
Fax: +45-77-33-66-11 Germany, Hamburg Denmark, Copenhagen
TNC female (50 Ω ), short TNC/N pigtail cable supplied. Environmental Conditions
Ambient Temperature:
EUROPE
Tel: +32-3-233-14-33
Fax: +32-3-225-05-53 Rx Freq. Band:
-25°C, +55°C for EME. 0 – 45°C for IME Belgium, Antwerp
1525.0 – 1559.0 MHz Relative Humidity: Tx Freq. Band:
BDU: 95% non-condensing at +40°CADU: 95% non-condensing at +40°C 1626.5 – 1660.5 MHz Channel Spacing: Vibration (antenna):
1.25 kHz — Rx 4-10 Hz 2.54mm, 10-15 Hz 0.76mm, 15-25 Hz 0.40mm, 25-33
Hz 0.23mm Modulation:
5.6 kbps O-QPSK SCPC (voice, fax), 6 kbps BPSK TDM, 134.4kbps 16QAM SCPC (data) Mechanical Shock:
20g/11ms half-sine Tx Modulation:
5.6 kbps O-QPSK SCPC (voice, fax), 3 kbps BPSK TDM, 134.4
kbps 16QAM SCPC (data) Dimensions and WeightTransceiver (TT-3038C):
2.6 kg, 53.75mm x 377mm x 163.7mm InterfacesVoice: Maritime Stabilized Antenna (TT-3008C):
27 kg, Diameter: 840mm, Height: 880mm 4.8 kbps AMBE, 64 kbps broadcast Cradle for the Handset: Asynchronous Data Rate:
0.25 kg, 100mm x 145mm x 42mm Euro ISDN 64 kbps and US ISDN 56 kbps Handset (TT-3620F): Phone Interface:
0.24 kg, 200mm x 52mm x 33mm 2-wire 600 Ω CCITT rec. G.473, standard DTMF telephones, RJ-11modular jack Sperry Marine, with worldwide headquarters in Charlottesville, VA, and major engineering and support offices in Melville, NY,New Malden, England, and Hamburg, Germany, is part of the Northrop Grumman Electronic Systems sector. This brochure, including the information contained herein, is the Intellectual Property of Northrop Grumman Corporation and as such may not be copied or reproduced without the written per-mission of Northrop Grumman. All specifications herein were in effect on the date of this publication. However, any technical data should not be solely relied upon and should be verified at timeof order. Furthermore, equipment may vary from that specified due to the Sperry Marine policy of continual product improvement. ©2005 Northrop GrummanBR-0087A • 2M • 9/05 Printed in U.S.A. Over 250 Locations Worldwide
