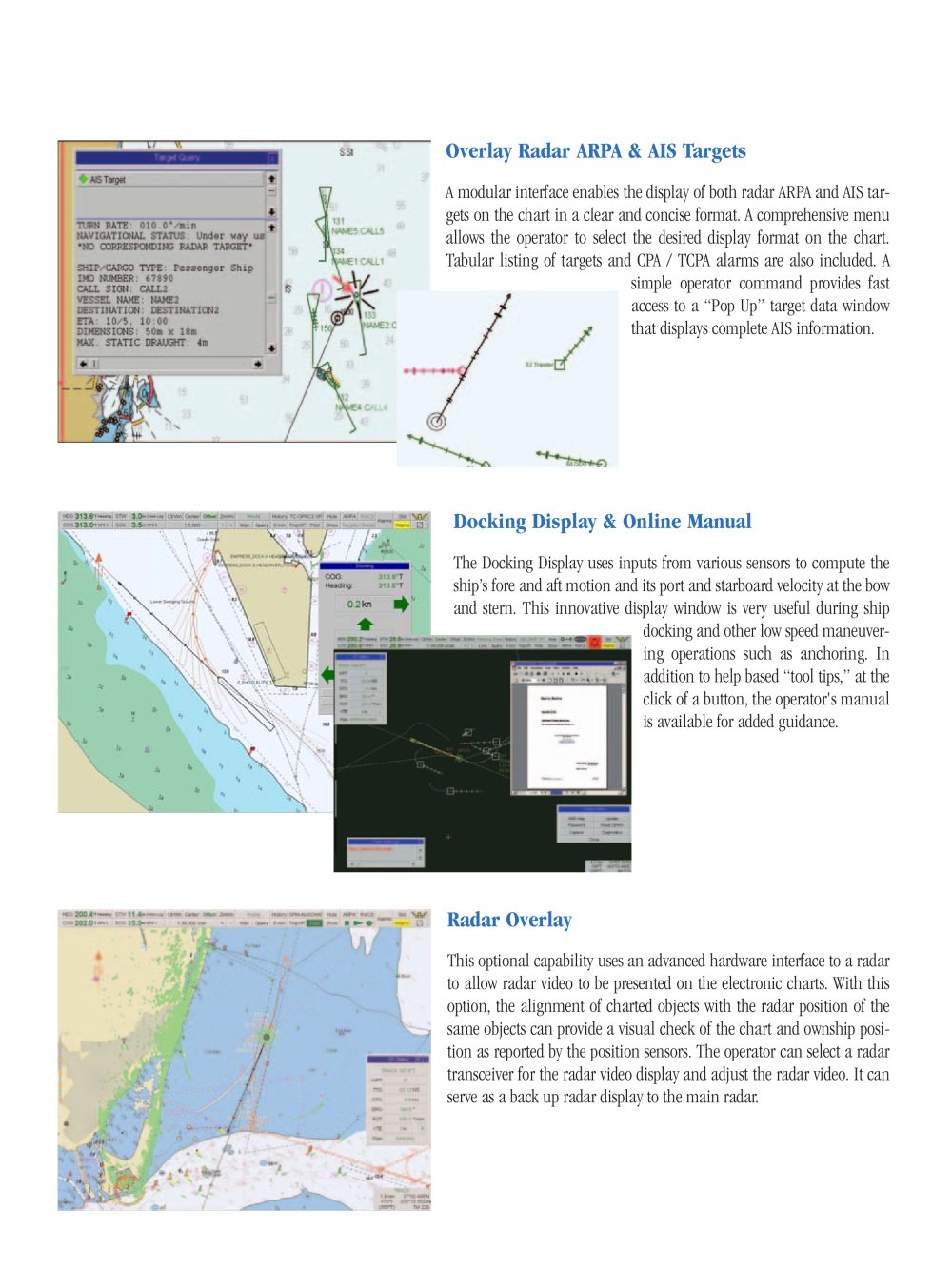

Overlay Marine radar ARPA & AIS Targets

A modular interface enables the display of both radar ARPA and AIS tar-gets on the chart in a clear and concise format. A comprehensive menu allows the operator to select the desired display format on the chart. Tabular listing of targets and CPA / TCPA alarms are also included. Asimple operator command provides fast access to a “Pop Up” target data window that displays complete AIS information.

Docking Display & Online Manual

The Docking Display uses inputs from various sensors to compute the ship’s fore and aft motion and its port and starboard velocity at the bow and stern. This innovative display window is very useful during shipdocking and other low speed maneuver- ing operations such as anchoring. In addition to help based “tool tips,” at the click of a button, the operator's manual is available for added guidance.

Radar Overlay

This optional capability uses an advanced hardware interface to a radar to allow radar video to be presented on the electronic charts. With this option, the alignment of charted objects with the radar position of the same objects can provide a visual check of the chart and ownship posi- tion as reported by the position sensors. The operator can select a radar transceiver for the radar video display and adjust the radar video. It can serve as a back up radar display to the main radar.
