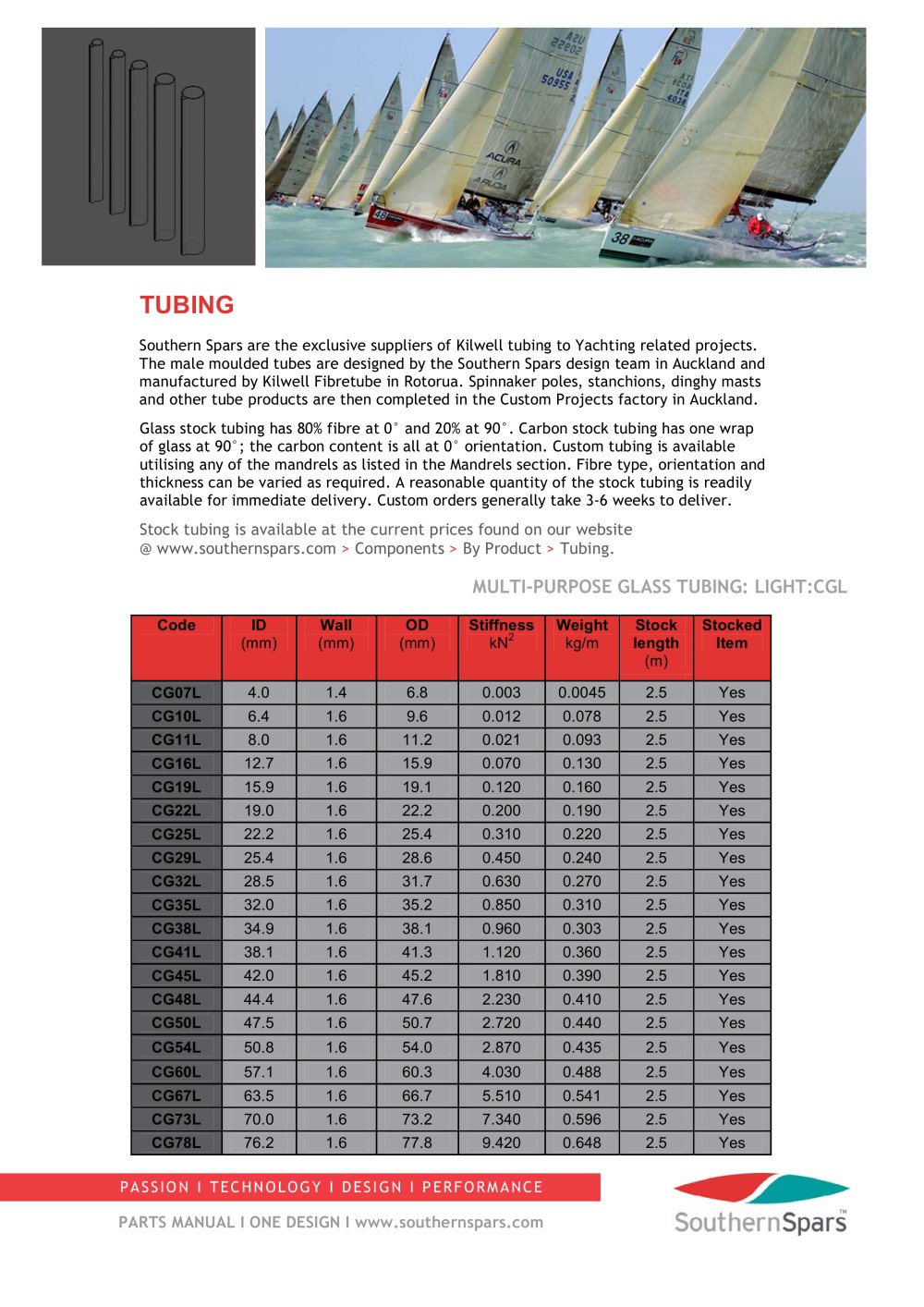

TUBING

Southern Spars are the exclusive suppliers of Kilwell tubing to Yachting related projects. The male moulded tubes are designed by the Southern Spars design team in Auckland and manufactured by Kilwell Fibretube in Rotorua. Spinnaker poles, stanchions, boat dinghy masts and other tube products are then completed in the Custom Projects factory in Auckland. Glass stock tubing has 80% fibre at 0° and 20% at 90°. Carbon stock tubing has one wrap of glass at 90°; the carbon content is all at 0° orientation. Custom tubing is available utilising any of the mandrels as listed in the Mandrels section. Fibre type, orientation and thickness can be varied as required. A reasonable quantity of the stock tubing is readily available for immediate delivery. Custom orders generally take 3-6 weeks to deliver.

Stock tubing is available at the current prices found on our website@ www.southernspars.com > Components > By Product > Tubing.

MULTI-PURPOSE GLASS TUBING: LIGHT:CGL

Code ID Wall OD Stiffness
2 Weight Stock Stocked (mm) (mm) (mm) kN kg/m length Item (m) CG07L 4.0 1.4 6.8 0.003 0.0045 2.5 Yes CG10L 6.4 1.6 9.6 0.012 0.078 2.5 Yes CG11L 8.0 1.6 11.2 0.021 0.093 2.5 Yes CG16L 12.7 1.6 15.9 0.070 0.130 2.5 Yes CG19L 15.9 1.6 19.1 0.120 0.160 2.5 Yes CG22L 19.0 1.6 22.2 0.200 0.190 2.5 Yes CG25L 22.2 1.6 25.4 0.310 0.220 2.5 Yes CG29L 25.4 1.6 28.6 0.450 0.240 2.5 Yes CG32L 28.5 1.6 31.7 0.630 0.270 2.5 Yes CG35L 32.0 1.6 35.2 0.850 0.310 2.5 Yes CG38L 34.9 1.6 38.1 0.960 0.303 2.5 Yes CG41L 38.1 1.6 41.3 1.120 0.360 2.5 Yes CG45L 42.0 1.6 45.2 1.810 0.390 2.5 Yes CG48L 44.4 1.6 47.6 2.230 0.410 2.5 Yes CG50L 47.5 1.6 50.7 2.720 0.440 2.5 Yes CG54L 50.8 1.6 54.0 2.870 0.435 2.5 Yes CG60L 57.1 1.6 60.3 4.030 0.488 2.5 Yes CG67L 63.5 1.6 66.7 5.510 0.541 2.5 Yes CG73L 70.0 1.6 73.2 7.340 0.596 2.5 Yes CG78L 76.2 1.6 77.8 9.420 0.648 2.5 Yes PASSION I TECHNOLOGY I DESIGN I PERFORMANCE
