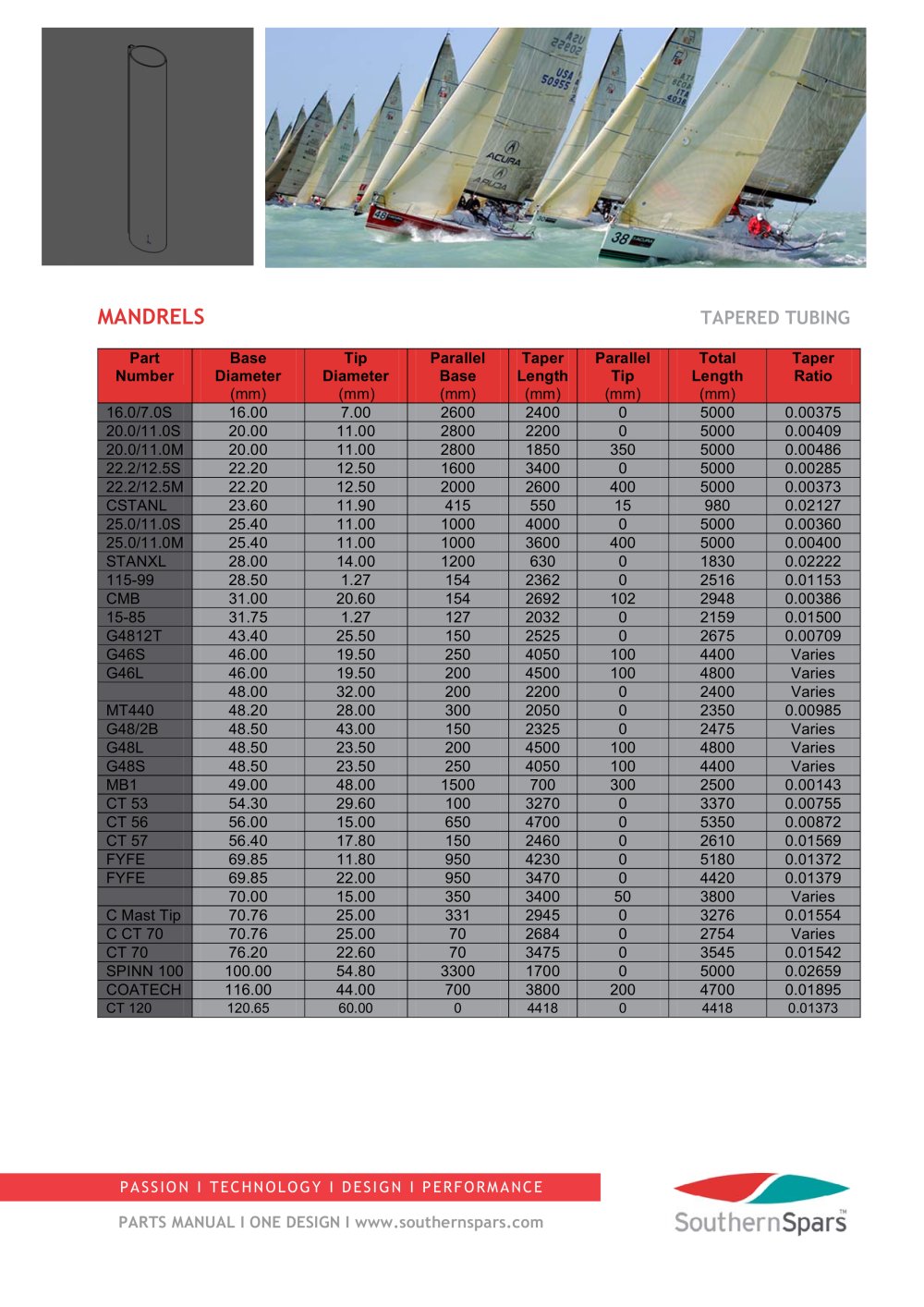

MANDRELS

TAPERED TUBING

Part Base Tip Parallel Taper Parallel Total Taper Number Diameter Diameter Base Length Tip Length Ratio (mm) (mm) (mm) (mm) (mm) (mm) 16.0/7.0S 16.00 7.00 2600 2400 5000 0.00375 20.0/11.0S 20.00 11.00 2800 2200 5000 0.00409 20.0/11.0M 20.00 11.00 2800 1850 350 5000 0.00486 22.2/12.5S 22.20 12.50 1600 3400 5000 0.00285 22.2/12.5M 22.20 12.50 2000 2600 400 5000 0.00373 CSTANL 23.60 11.90 415 550 15 980 0.02127 25.0/11.0S 25.40 11.00 1000 4000 5000 0.00360 25.0/11.0M 25.40 11.00 1000 3600 400 5000 0.00400 STANXL 28.00 14.00 1200 630 1830 0.02222 115-99 28.50 1.27 154 2362 2516 0.01153 CMB 31.00 20.60 154 2692 102 2948 0.00386 15-85 31.75 1.27 127 2032 2159 0.01500 G4812T 43.40 25.50 150 2525 2675 0.00709 G46S 46.00 19.50 250 4050 100 4400 Varies G46L 46.00 19.50 200 4500 100 4800 Varies 48.00 32.00 200 2200 2400 Varies MT440 48.20 28.00 300 2050 2350 0.00985 G48/2B 48.50 43.00 150 2325 2475 Varies G48L 48.50 23.50 200 4500 100 4800 Varies G48S 48.50 23.50 250 4050 100 4400 Varies MB1 49.00 48.00 1500 700 300 2500 0.00143 CT 53 54.30 29.60 100 3270 3370 0.00755 CT 56 56.00 15.00 650 4700 5350 0.00872 CT 57 56.40 17.80 150 2460 2610 0.01569 FYFE 69.85 11.80 950 4230 5180 0.01372 FYFE 69.85 22.00 950 3470 4420 0.01379 70.00 15.00 350 3400 50 3800 Varies C Mast Tip 70.76 25.00 331 2945 3276 0.01554 C CT 70 70.76 25.00 70 2684 2754 Varies CT 70 76.20 22.60 70 3475 3545 0.01542 SPINN 100 100.00 54.80 3300 1700 5000 0.02659 COATECH 116.00 44.00 700 3800 200 4700 0.01895
CT 120 120.65 60.00 4418 4418 0.01373 PASSION I TECHNOLOGY I DESIGN I PERFORMANCE
