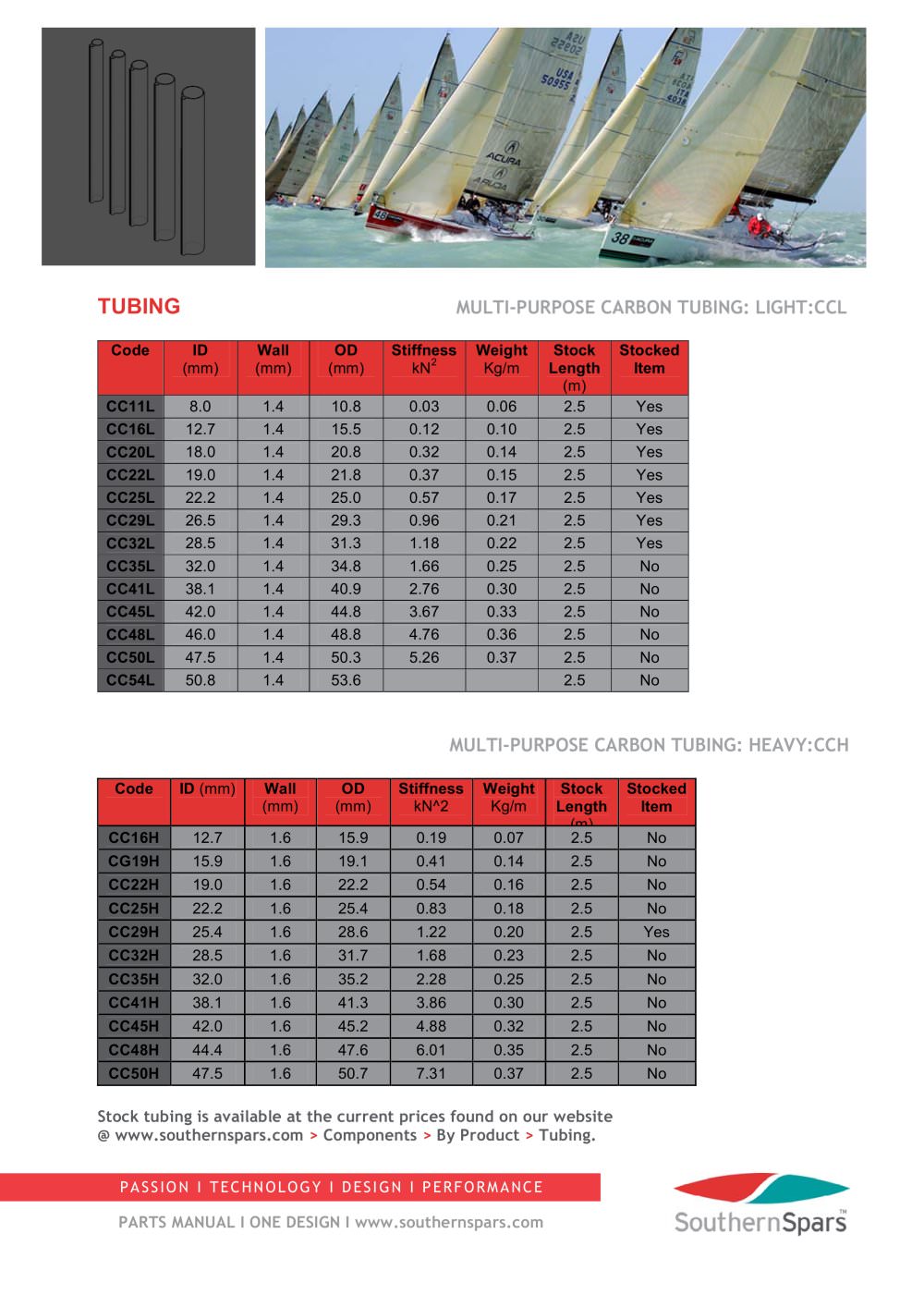

TUBING

MULTI-PURPOSE CARBON TUBING: LIGHT:CCL

Code ID Wall OD Stiffness Weight Stock Stocked (mm) (mm) (mm) kN
2 Kg/m Length Item (m) CC11L 8.0 1.4 10.8 0.03 0.06 2.5 Yes CC16L 12.7 1.4 15.5 0.12 0.10 2.5 Yes CC20L 18.0 1.4 20.8 0.32 0.14 2.5 Yes CC22L 19.0 1.4 21.8 0.37 0.15 2.5 Yes CC25L 22.2 1.4 25.0 0.57 0.17 2.5 Yes CC29L 26.5 1.4 29.3 0.96 0.21 2.5 Yes CC32L 28.5 1.4 31.3 1.18 0.22 2.5 Yes CC35L 32.0 1.4 34.8 1.66 0.25 2.5 No CC41L 38.1 1.4 40.9 2.76 0.30 2.5 No CC45L 42.0 1.4 44.8 3.67 0.33 2.5 No CC48L 46.0 1.4 48.8 4.76 0.36 2.5 No CC50L 47.5 1.4 50.3 5.26 0.37 2.5 No CC54L 50.8 1.4 53.6 2.5 No

MULTI-PURPOSE CARBON TUBING: HEAVY:CCH

Code ID (mm) Wall OD Stiffness Weight Stock Stocked (mm) (mm) kN^2 Kg/m Length Item (m) CC16H 12.7 1.6 15.9 0.19 0.07 2.5 No CG19H 15.9 1.6 19.1 0.41 0.14 2.5 No CC22H 19.0 1.6 22.2 0.54 0.16 2.5 No CC25H 22.2 1.6 25.4 0.83 0.18 2.5 No CC29H 25.4 1.6 28.6 1.22 0.20 2.5 Yes CC32H 28.5 1.6 31.7 1.68 0.23 2.5 No CC35H 32.0 1.6 35.2 2.28 0.25 2.5 No CC41H 38.1 1.6 41.3 3.86 0.30 2.5 No CC45H 42.0 1.6 45.2 4.88 0.32 2.5 No CC48H 44.4 1.6 47.6 6.01 0.35 2.5 No CC50H 47.5 1.6 50.7 7.31 0.37 2.5 No

Stock tubing is available at the current prices found on our website @ www.southernspars.com > Components > By Product > Tubing.
