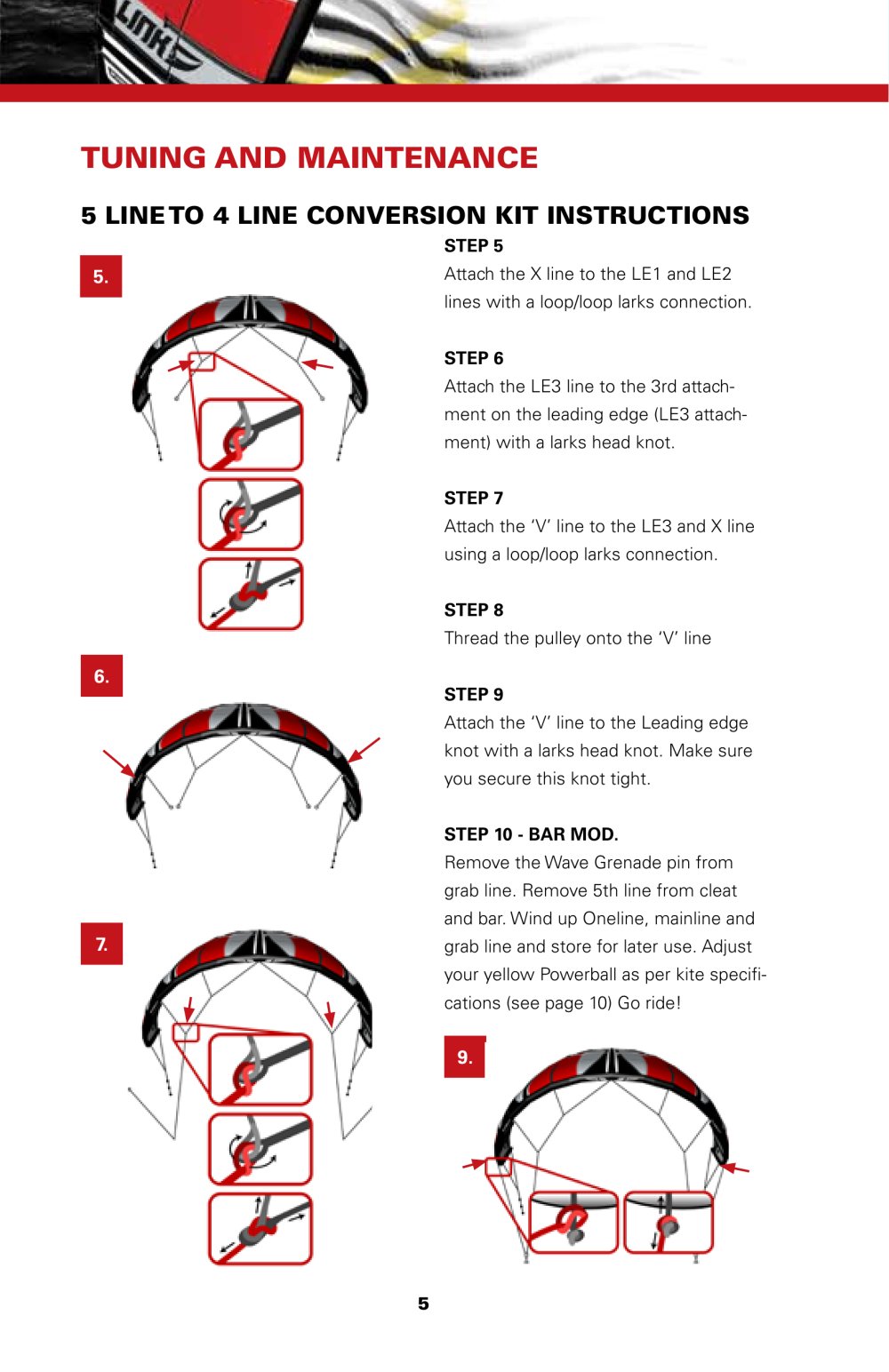

TUNING AND MAINTENANCE
5 LINE TO 4 LINE CONVERSION KIT INSTRUCTIONS
STEP 5
Attach the X line to the LE1 and LE2 lines with a loop/loop larks connection.
STEP 6
Attach the LE3 line to the 3rd attach­ment on the leading edge (LE3 attach­ment) with a larks head knot.
STEP 7
Attach the 'V' line to the LE3 and X line using a loop/loop larks connection.
STEP 8
Thread the pulley onto the 'V' line
STEP 9
Attach the 'V' line to the Leading edge knot with a larks head knot. Make sure you secure this knot tight.
STEP 10 - BAR MOD.
Remove the Wave Grenade pin from grab line. Remove 5th line from cleat and bar. Wind up Oneline, mainline and grab line and store for later use. Adjust your yellow Powerball as per kite specifi­cations (see page 10) Go ride!
